About this item
Product Highlights


                  DÉTAILS
                      Caractéristiques :

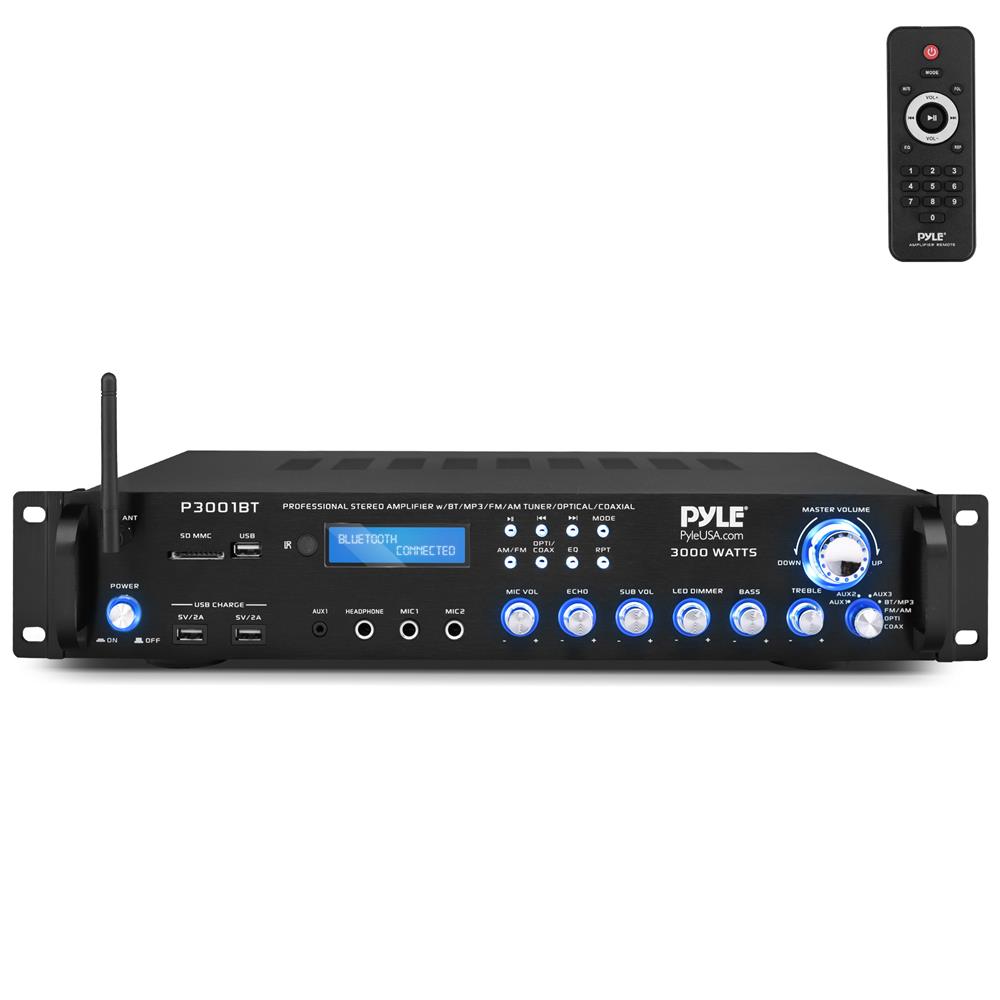

- Système récepteur audio Home Theater
- Préamplificateur hybride haute puissance
- Bluetooth intégré pour le streaming musical sans fil
- Affichage LCD numérique avec radio FM
- Connectez et diffusez de l'audio à partir de dispositifs externes
- Prise en charge de la lecture de fichiers audio MP3
- Lecteurs de clés USB et cartes mémoire SD
- Double ports de charge USB

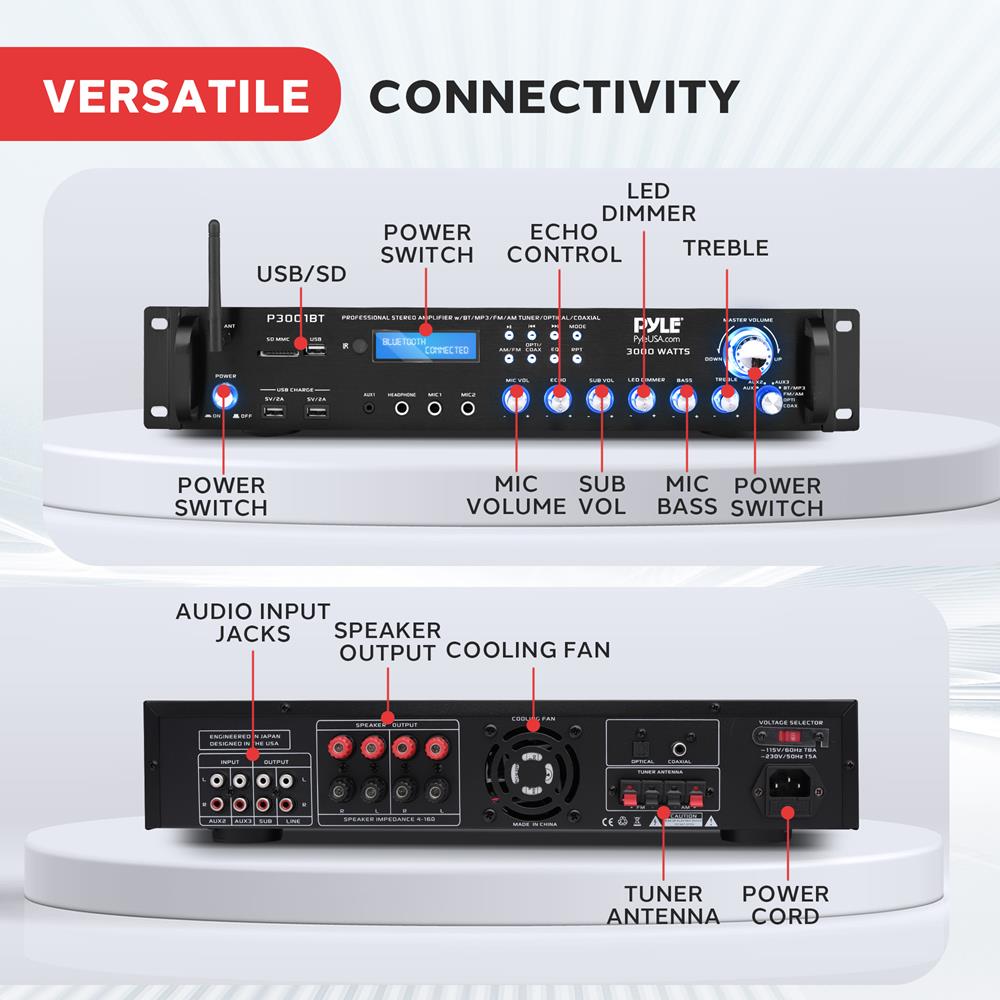

- Boutons de commande et commandes rotatives sur la façade avant
- Éclairage LED avec contrôle de luminosité
- Prises audio RCA (L/R) entrée/sortie
- Prises de sortie subwoofer RCA (L/R) dédiées
- Bornes de connexion pour haut-parleurs à vis
- Prise casque, 1/4'' pouce
- Prise d'entrée Aux (3,5mm)
- (2) Entrées microphone 1/4''
- Contrôle du volume/tonalité/écho du microphone
- Paramètres de configuration de la source audio
- Ventilateur de refroidissement intégré
- Conception d'amplificateur universel pour rack
Connectivité Bluetooth :
- Reçoit le signal sans fil pour le streaming audio
- Fonctionne avec tous vos appareils préférés
- (Smartphones, tablettes, ordinateurs portables, ordinateurs, etc.)
- Version Bluetooth : 5.0
- Nom du réseau Bluetooth : « PYLE PRO »
- Portée sans fil : 40'+ ft.

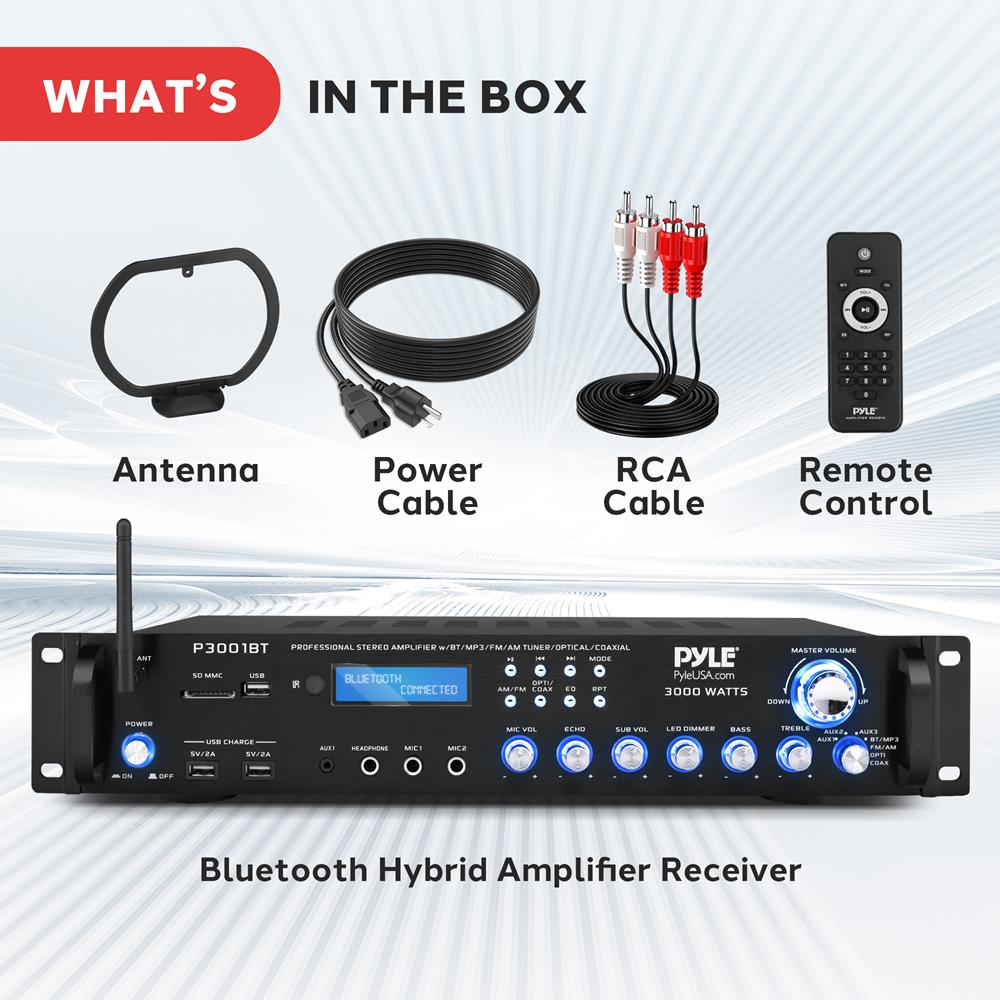

Contenu de la boîte :
- Préamplificateur hybride
- Télécommande
- Supports de montage en rack
- Câble d'alimentation
- Antenne FM/antenne BT
Spécifications techniques :

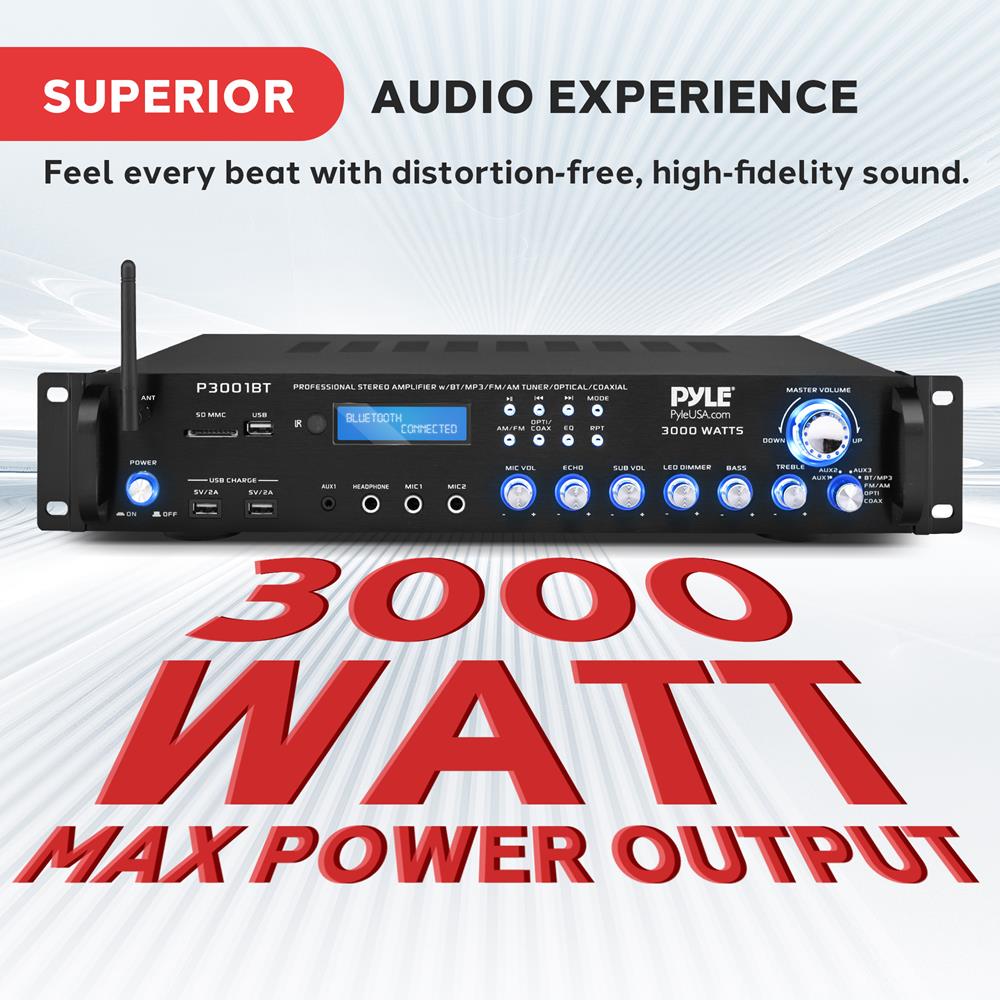

- Puissance de sortie : 3000 Watt MAX
- 850 Watt @ 2 Ohm
- 550 Watt @ 4 Ohm
- 300 Watt @ 8 Ohm
- Réponse en fréquence : 40Hz-15kHz, +/-2dB
- Rapport S/B : >76dB
- T.H.D. : <1%
- Préréglages mémoire stations radio : 30
- Tuner : Radio à synthèse quartz
- Prise en charge de la lecture des fichiers médias numériques : MP3, WMA, WAV, APE, FLAC
- Alimentation USB : 5V/2A (x2)
- Longueur du câble d'alimentation : 4,9' ft.
- Alimentation : 115/230V, commutable
- Dimensions de l'unité (L x l x H) : 18,89'' x 12,04'' x 3,14'' - pouces

                  Contenu de la boîte


                  MANUELS & TÉLÉCHARGEMENTS

                    Questions & Answers
                      QUESTIONS & ANSWERS
Ask a Question-
         HI, Can I run 2 sets of stereo speakers at the same time? Thanks Yes
-
         Does the Pyle Bluetooth P3001 BT support hooking up a turntable You will nee to use a phono preamp to connect the turntable
-
         I have a pair of Pyle speakers PADH212,would they be suitable for Pyle model # amplifier P30001BT Yes this will work well with the PADH212
-
         550 Watt @ 4 Ohm is that x 2 ? 550 Watt @ 4 Ohm is that rms or peak ? Thank you It is the total watts for the 2 channels
-
         Hello I bought this receiver for Christmas and I love it but the subs I have hooked up to it are junk are you able to give me some recommendations on what subs to hook up to this ? Preferably 12s I have the box We currently do not have an available subwoofer. Please check the link below
 https://www.amazon.com/Klipsch-Wireless-Subwoofer-Brushed-R-12SWi/dp/B01N0HJEOX/ref=sr_1_72?crid=JIBYZ69K7QA&keywords=12+active+sub&qid=1645651447&sprefix=Sub+Active+12%22%2Caps%2C274&sr=8-72
-
         How do I save radio stations? Manual says press tuner button but on remote there is no tuner button m SETTING UP FM RADIO
 Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
         What is the RMS rating of this unit? 300 Watt @ 8 Ohm RMS
-
         Hello, the speakers are already connected, when I turn on the amplifier they emit a buzzing sound Check if in all modes there is a buzzing sound. If so check you warranty options
-
         Having a problem with the remote. Please contact us through our email support system to assist you further regarding your inquiry. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
         I have a pyle P3001bt. I also have a Klipsch R-80SWI sub. Would like to know what phase to run and Hz for the Low pass? Thank you. (0) Zero Phase @ 80Hz for soft bass or 100Hz for a punchy bass
-
         Are you going to restock this item soon? P3001BT We've got orders for this. However we have no ETA on the Replenishment
-
         is there a certain way to use the eq button because pushing it does nothing. have it connected through aux2 2 for outdoor speakers It is a pre set EQ Just press the button and you can choose the type of EQ that soothes you
-
         How do i hook up pyle 10 inch dual coil subwoofer to this amp? The P3001BT does not have Subwoofer speaker out. It only have a Subwoofer RCA low level output for Active subs
-
         I want to pair this with 2 sets (4) of PDWR50B outdoor speakers. Will this work with all 4 speakers running at the same time? And if not, what amplifier do you recommend with an optical cable input? Yes you can run 4 of these using the amplifier receiver below:
-
         I own 2 record players, will I be able to play them through this unit without anything other that the two cables? No, you can only have the connection of the record player with just the RCA cables.
-
         Can p3001bt update codex? Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
         wont turn on Please check the power supply where the unit is connected.
 Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
         Can you bridge this amp The amp is not bridgeable.
-
         Can I hookup a bluetooth speaker to it? Not possible as both are Bluetooth receivers
