60W Compact Power Amplifier with Bluetooth and Remote

Product Highlights

This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals, plus an auxiliary RCA input. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.

DETAILS

Features:

Built-in Bluetooth for Wireless Audio Streaming
Digital LED Display with FM Radio
USB Flash Drive & SD Memory Card Readers
Power On/Off Switch & LED Indicator

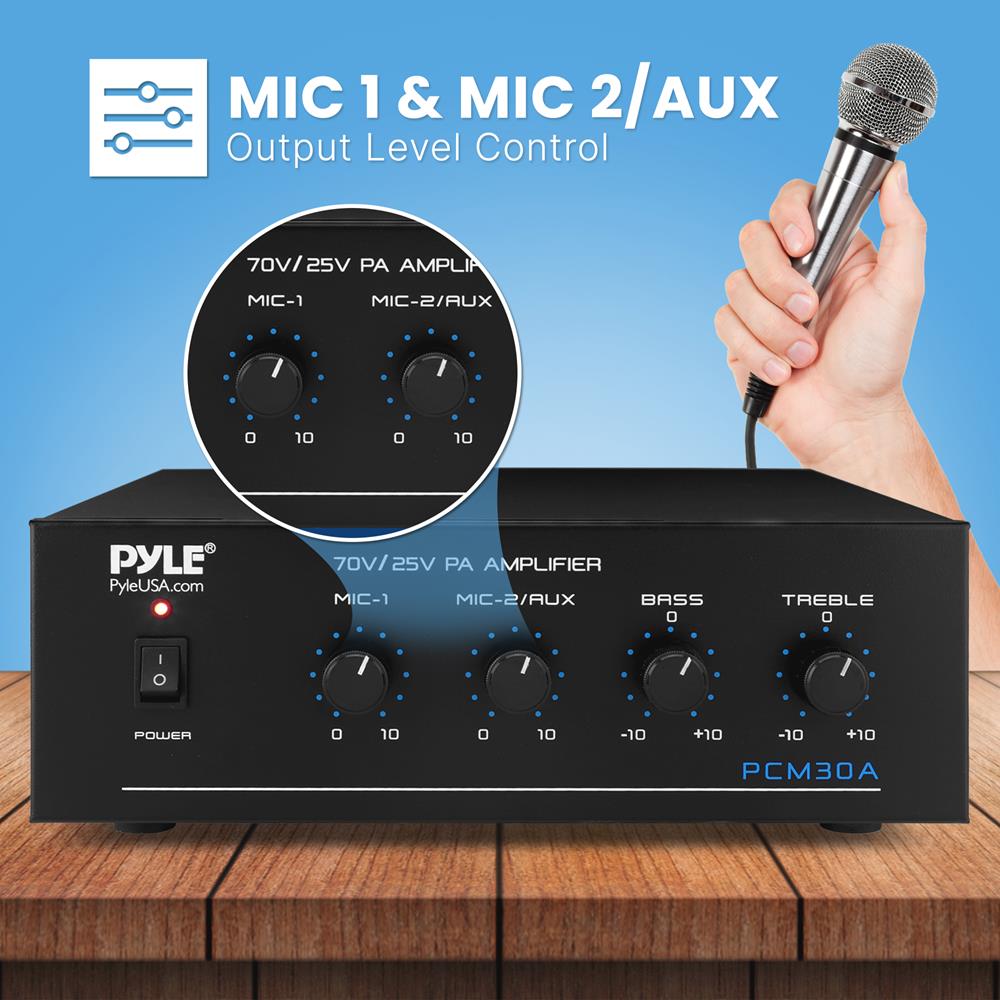

MIC 1 Output Level Control
MIC 2/AUX Output Level Control
Bass and Treble Tone Controls
AUX RCA Input
MIC 2/AUX Input Selector Switch
MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover)
Mute Terminals
Detachable AC Power Input
Replaceable Fuse
Monitor 600-Ohm 1V Terminals (Music On Hold)
Monitor 1W 8-Ohm Terminals (Music On Hold)
Monitor Output Level Control (Music On Hold)
TEL/PAGING Terminals
Paging Output Level Control
MIC/TEL VOX Level Control (Internal)

Bluetooth Connectivity:

Works with All of Your Favorite Bluetooth Devices
(iPhones, Androids, Smartphones, iPad, Tablet, PC, etc.)
Bluetooth Network Name: ‘PYLEUSA’
Bluetooth Version: 5.0
Wireless Range up to 30’+ ft.

What’s In The Box:

PA Amplifier
FM Antenna
Remote Control

Technical Specs:

MAX Power Output: 500 Watt AC Outlet
Construction Material: Iron
Bass/Treble: +/-10dB, 100-10kHz
Frequency Response: 50-15kHz
Attenuation (Mic): 61dB
T.H.D.: <1%
Speaker Terminals (COM/4-ohm/8-Ohm/16-Ohm/25V/70V)
Battery Operated Remote, Requires (1) x CR-2025 Button Cell Battery, Included
Power: 120/240 Voltage Selector
Dimensions (W x H x D): 10.7'' x 8.9'' x 3.46'' inches

What's In The Box

PA Amplifier

FM Antenna

Remote Control

Specification

This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals, plus an auxiliary RCA input. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.

MANUALS & DOWNLOADS

PCM30AEU - Manuals
