About this item
Product Highlights
DÉTAILS
Caractéristiques :

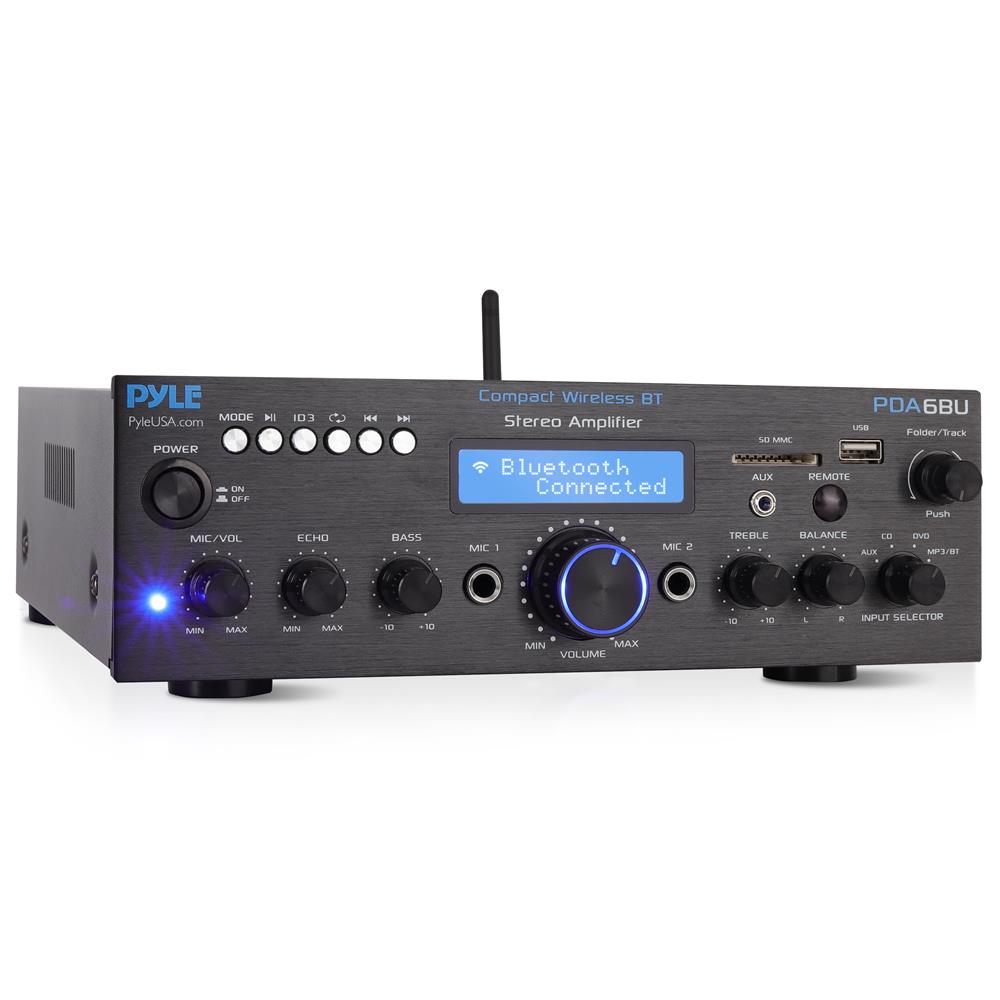

- Mini amplificateur de puissance audio de bureau
- Style récepteur stéréo home cinéma compact
- Bluetooth intégré pour streaming musical

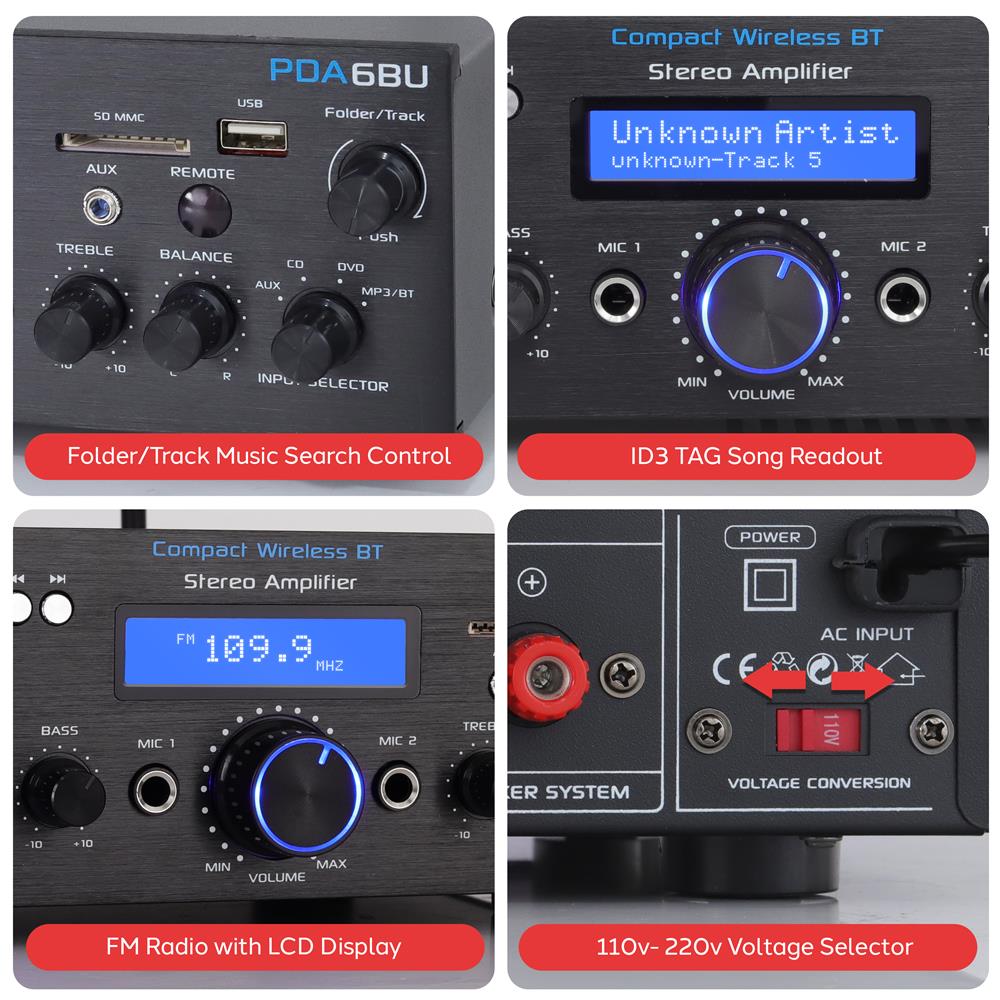

- Radio FM avec affichage numérique LCD
- Affichage des tags ID3 avec titre du morceau

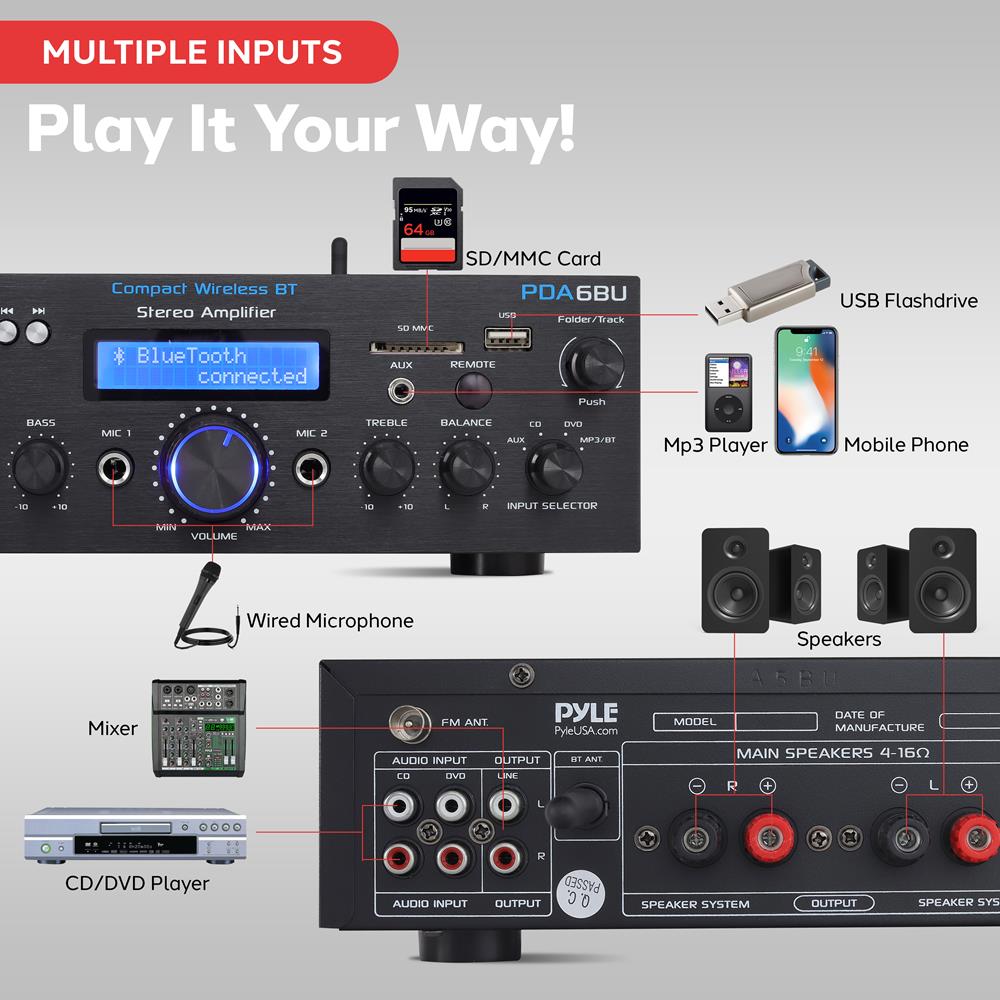

- Sélection d’entrée audio multicanal
- Prise en charge des fichiers audio MP3
- Connexion & streaming audio depuis des appareils externes
- Lecteurs de clé USB & carte mémoire SD
- Entrée Aux (3,5 mm)
- (2) prises d’entrée microphone 1/4''
- (2) paires de connecteurs d’entrée audio RCA (G/D)
- (2) paires de connecteurs de sortie haut-parleur à prise banane
- (1) paire de connecteurs de sortie audio RCA (G/D)

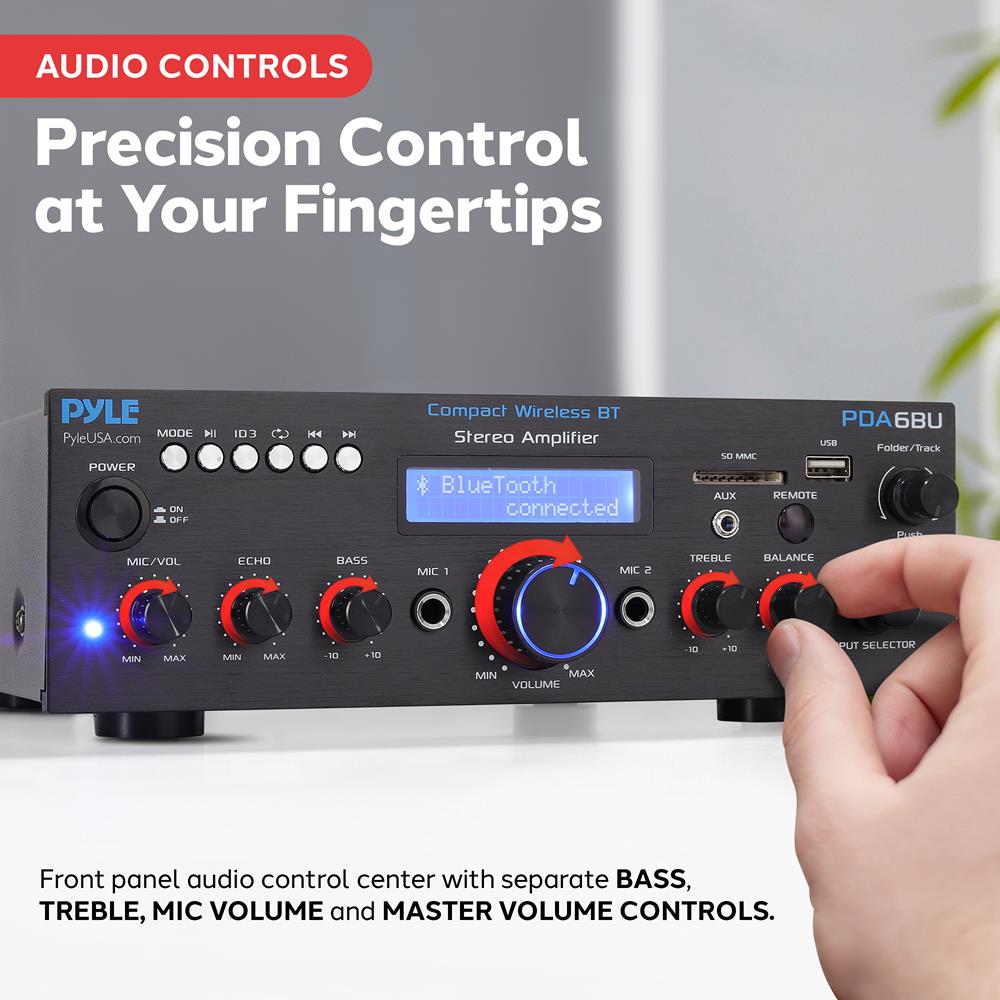

- Centre de contrôle audio en façade
- Recherche automatique des stations radio
- Fonctions de fichiers audio 'Répétition & Aléatoire'
- Bouton de recherche unique 'Piste / Dossier' pour la musique
- Aigus, basses, volume principal & microphone réglables
Connectivité Bluetooth :
- Réception du signal pour streaming audio
- Appairage simple & sans tracas
- Antenne intégrée pour une portée sans fil étendue
- Compatible avec tous les appareils actuels
- Version Bluetooth : 2.0
- Nom du réseau Bluetooth : 'PDA6BU'

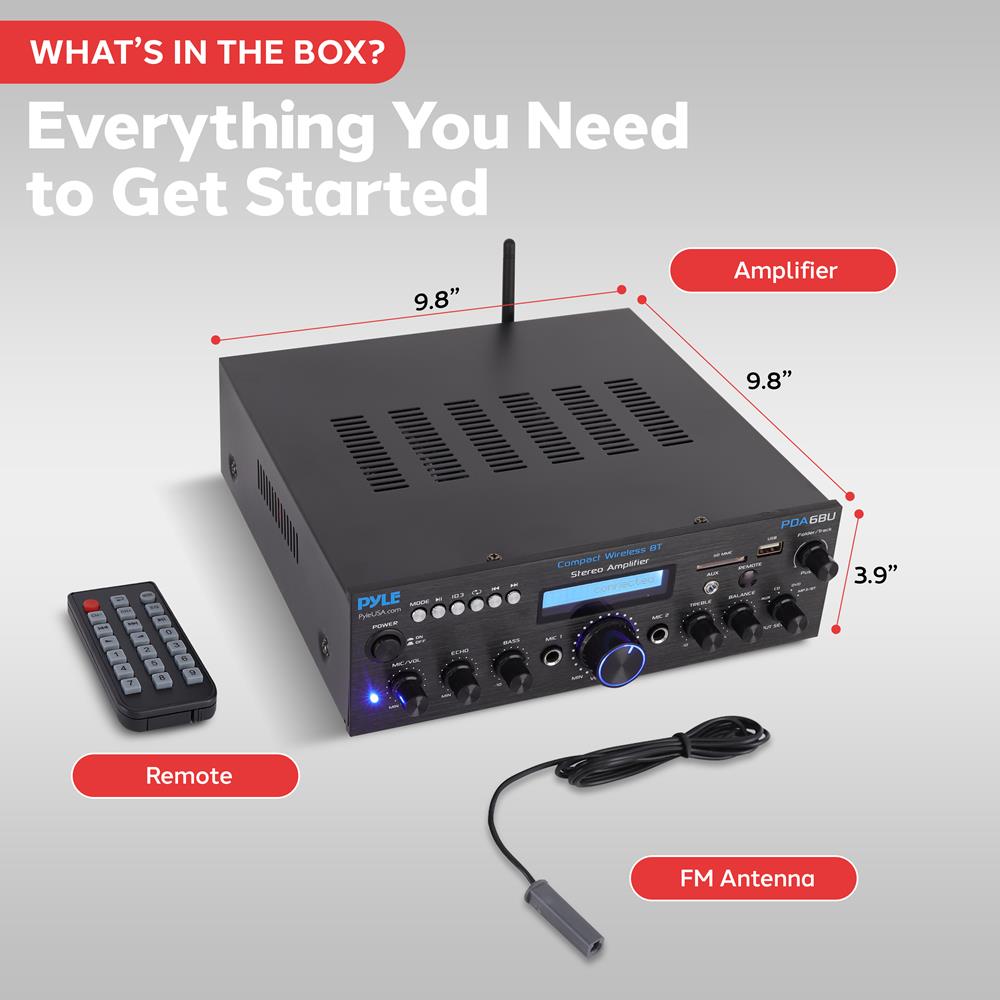

Contenu de la boîte :
- Amplificateur stéréo de bureau
- Télécommande
- Antenne FM
Caractéristiques techniques :
- Puissance de sortie MAX : 200 Watts (@ 4 Ohms)
- Puissance de sortie RMS : 100 Watts x 2 (@ 8 Ohms)
- Contrôle de tonalité : Basses, f=100Hz +/-8dB
- Réponse en fréquence : 20Hz-20kHz
- Ajustement de fréquence : +/-10dB
- Rapport signal/bruit : >71dB
- T.H.D. : <0,1%
- Préréglages des stations radio : Jusqu’à 60 stations
- Télécommande alimentée par pile, nécessite (1) pile bouton CR-2025, incluse
- Alimentation : 120/240V, commutable
- Dimensions (L x l x H) : 24,9 x 24,9 x 9,9 cm
Contenu de la boîte
MANUELS & TÉLÉCHARGEMENTS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I want to connect my LG 43UJ6300 to the PDA6BU so that I can hear the tv Thru the wired speakers connected to the Amplifier…How can I do this….can you please help me?
you would need a Digital to analog converter
-
what is a disk, & why won't my machine pick up my voice/
Flash Drive is considered a Disc. Check the microphone cable if it is good, Check the type of microphone being used it is Dynamic.
-
Why does this receiver not have an FM stereo tuner, rather than FM mono?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
When I plug in a microphone into MIC1 or MIC2, all I get is static noise.
Possible mic cable issue
-
Need power antenna or adaptor my antenna for my Pyle home stereo amp reciever
-
What's the difference between your pyle receiver pda6bu and pda6bu.5
The number at the end indicates when we make minor or major improvements externally or internally. This could mean an overhaul or modification of the design of a better circuit board. Sometimes the same factors that affect the costs also affect the prices.
Normally, we try to pass on savings to our clients when there is an upgrade that is less expensive than the previous generation. On the other hand, if it is more expensive, the unit might cost a little more, but our objective is to provide the best product possible. -
do the PDA 6 BU or the PDA 12 BU have FM stereo?
Yes.
-
whats the difference between the PDA 6BU and the PDA 12BU?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Why can I not register my PDA6BU on the web site? I just bought it today 23 March 2023. The cards say to register for a warrranty. I go to your site go to PRODUCT REGISTRATION and thje site goes dead.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
How do you enable Bluetooth mode so it will acquire my phone. I ollowed the instruction and all I get is "Bluetooth unconnected" nothing to initialize or get connected. Cannot get ot to acquire a signal.
Place the input selector knob to MP3/BT and set the mode for BT and connect the device that you wanted to use for the unit.
-
how do i play the fm
Set the selector knob on the far right of the receiver to MP3/BT. Once you have done that, press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
Which audio file formats are supported for the SD MMC and USB ports?
Only MP3 format.
-
Is there a bluetooth transmitter, you can recommend, that I can connect to a PDA29BU so I can use it with my existing bluetooth speakers?
Please see the link provided.
https://www.amazon.com/Upgraded-Bluetooth-Transmitter-Wireless-Headphone/dp/B0838YPSZT/ref=sr_1_5?dchild=1&keywords=1mii&qid=1620217649&sr=8-5 -
Hi I just got this amplifier, it was plugged in for a while, then it got overheated so I turned down the volt, but it broke... What could have happend?
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Can the PDA6BU.5 pair with pyle bluetooth speakers?
They are both receivers it is not possible
-
Do you offer a better FM antenna for a PDA6BU radio so I can pick up more stations.
-
How do I connect my PAS29BU to the computer vía wireless and then the speakers vía bluetooth??
No amplifier needed. We recommend PBKSP30DB
-
why does my PDA6BU say no disc when playing cd player...player play 2 or 3 songs then quits
No Disc means that there is no USB plugged in the USB port or No SD card
-
what is the operating temperature of this unit. How hot and how cold can it operate?
The operating temperature is not available at this time.
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
How do get FM stations on the PDA6BU?
Press the mode button and set it to FM mode. Then press the PLAY/PAUSE button to automatically scan the stations available in your area.
Cycle through the scanned stations using the PREVIOUS and NEXT buttons
