Outdoor Security Camera 65ft Night Vision Sharp CCD 420TVL

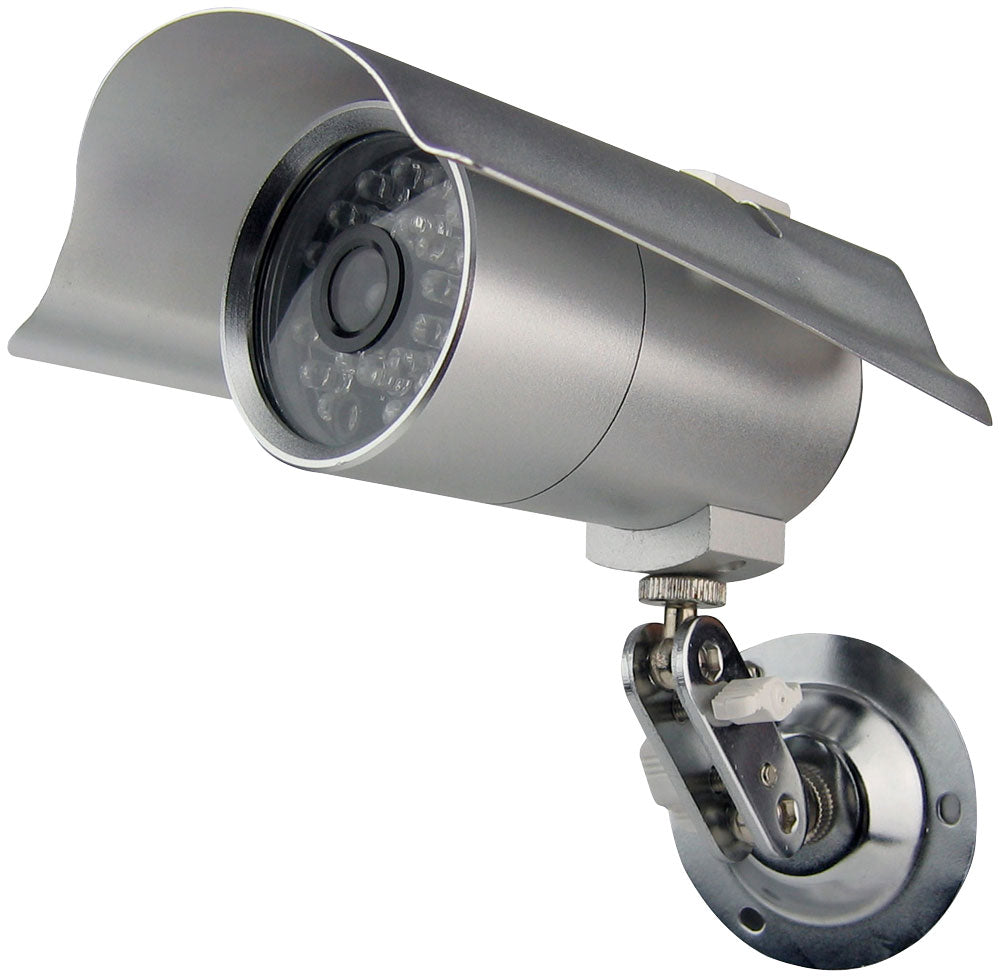

The PHCM29 security camera lets you keep an eye on your business or home from anywhere. Use it indoors or outdoors, day or night - this camera is equipped with a water-resistant housing, operates in up to 85% humidity, and has infrared LEDs for night vision up to 65 feet. This is a hi-resolution camera: it's got a ¼' Sharp CCD for 420 lines of resolution with automatic white balance and a 1/60 second electronic shutter. It's easily mountable, thanks to the included mounting bracket. Cameras don't let you just monitor your property - they also deter crime. Keep your property safe and secure with Pyle.

For Both Indoor and Outdoor Use

Validity Pixel: NTSC: 510(H)*492(V)

Image Sensor: 1/4' Sharp CCD

Horizontal Definition: 420TV Line

Lens: 3.6mm Fix Lens

IR View Distance: 65 feet

LED 24PCS

LED Switch Auto

Minimum Illumination 0 Lux

AGC Auto

Synchronization Internal

Scanning Frequency (H) 15.625 KHz

Scanning Frequency (V) 50Hz

Backlight Compensation Auto

Electronic Shutter 1/50 (1/60) ~ 1/100.000sec

White Balance Auto

S/N Ratio >48db

Gamma Correction >0.45

Operation Temperature -10 ~ +50/+14 ~ +122

Operation Humidity 85%RH

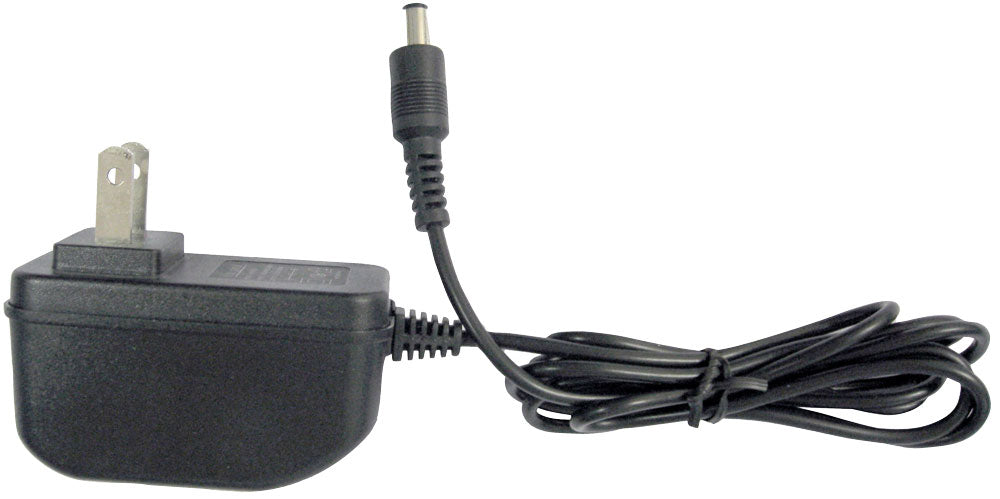

Power adapter DC 12V/500mA

The PHCM29 security camera lets you keep an eye on your business or home from anywhere. Use it indoors or outdoors, day or night – this camera is equipped with a water-resistant housing, operates in up to 85% humidity, and has infrared LEDs for night vision up to 65 feet. This is a hi-resolution camera: it’s got a ¼” Sharp CCD for 420 lines of resolution with automatic white balance and a 1/60 second electronic shutter. It’s easily mountable, thanks to the included mounting bracket. Cameras don’t let you just monitor your property – they also deter crime. Keep your property safe and secure with Pyle.

PHCM29 - Manuals
