Amplificateur marin 1000W étanche à 4 canaux avec alimentation MOSFET
Amplificateur marin 1000W étanche à 4 canaux avec alimentation MOSFET
1 Year Warranty
30-Day Returns
Free Shipping in Canada
Impossible de charger la disponibilité du service de retrait
About this item
Product Highlights
DÉTAILS
Caractéristiques du système :
- Amplificateur audio pontable
- Configuration Tri-Mode
- Système amplificateur 4 canaux
- Double alimentation MOSFET
- Construction de qualité marine
- Indice d'étanchéité marine IP-01
- Réseau de crossover électronique Hi/Lo
- Contrôles de niveau de gain d'entrée double réglables
- Connecteurs d'entrée haut-parleur haute puissance doubles
- Double prise d'entrée RCA (G/D)
- Contrôles doubles de passe-haut, passe-bas et boost de basses
- Connecteurs de sortie haut-parleur plaqués or
- Circuit anti-thump à retardement
- Indicateurs LED d'alimentation et de protection
- Protection intégrée contre la surchauffe, la surcharge et le court-circuit haut-parleur
- Dissipateur thermique en alliage d'aluminium robuste
- Allumage/extinction à distance
Spécifications techniques :
- Puissance de sortie MAX 1000 Watt
- Sortie pontée 500 Watt x 2 (250 Watt x 2 + 500 Watt x 1)
- Sortie de puissance 250 Watt x 4
- Classe d'amplificateur : AB
- Type de fusible : 30A x 2
- Réponse en fréquence : 15 - 30kHz
- Impédance d'entrée : 10k Ohm (Basse), 100 Ohm (Haute)
- Sensibilité d'entrée : 250mV (Basse), 2,5V (Haute)
- Boost de basses variable : 0 +/- 18dB @ 60Hz
- Rapport S/B : >95dB
- T.H.D. : <0,04%
- Alimentation : DC 12V

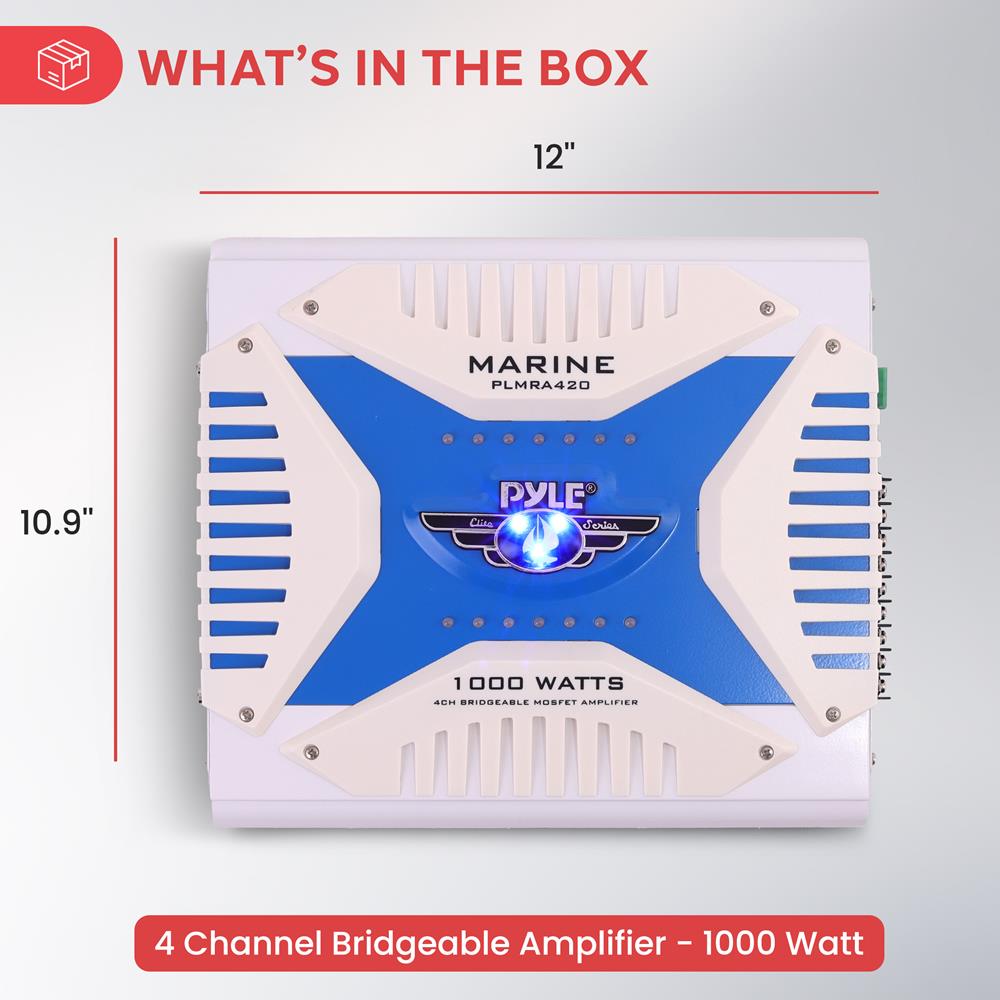

- Dimensions (L x l x H) : 12,0'' x 10,9'' x 2,7''
MANUELS & TÉLÉCHARGEMENTS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can I hook up 6 speakers to a 4 channel amp?
Yes, it is possible. Please be aware of the impedance capacity of the amplifier
-
How to wire it to power one subwoofer
You can use channels 3 and 4 and bridge it. set the crossover switch to LPF. and adjust the crossover frequency as well with the bass boost
-
Hi can this be connected to a control unit like PLMRBT20
Yes it is possible through the LINE OUT of the PLMRBT20 to the LINE IN of the PLMRA420
-
Why is this advertised at 1000 watts but says 35 watts rms? Is this a misprint?
HDMI, RCA or optical digital audio format should have audio output to the speaker
-
Can this amp be used in a vehicle such as a Jeep Wrangler?
Yes
-
What gauge power and ground should be used?
The power and ground wires should be at least 8 gauge in size.
-
I have amp wired up with a marine fm receiver on 4-6 1/2 " speakers. I have the speaker wires coming off of receiver wired to the two plugs that came with the amp and plugged into the high end crossover spot. The speakers are wired up to the ch.1,2,3,4 terminals. I have the amp power coming off a relay switch. I was wondering why the amp has to have power going to it to for the radio to play through speakers? Why wouldn't the radio just play through the amp just without being amplified? Also is there a way to make it play louder? I thought it being 1000 watts it should be a little louder than it is. Thank you
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also in the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
