About this item
DÉTAILS
Caractéristiques :
- Amplificateur Récepteur de Sonorisation (PA)
- Système Source Audio de Bureau Compact
- Contrôle pratique du microphone et du haut-parleur
- Bluetooth intégré pour diffusion audio sans fil
- Fonction d'alarme sirène activée par bouton intégrée
- Radio FM avec affichage numérique à LED
- Connexion et diffusion audio depuis des appareils externes
- Lecture compatible de fichiers audio MP3 numériques
- Lecteurs de cartes mémoire USB Flash & SD
- Entrées audio Aux (3,5mm), RCA (G/D)
- (2) prises d'entrée microphone 1/4''
- Sortie haut-parleur : 100V/70V/16 Ohm/8 Ohm/4 Ohm/COM
- Centre de contrôle par boutons sur le panneau avant
- Indicateurs LED du niveau de sortie audio
- Réglage indépendant du volume par canal audio
- Borniers d'entrée d'alimentation 12V DC en option

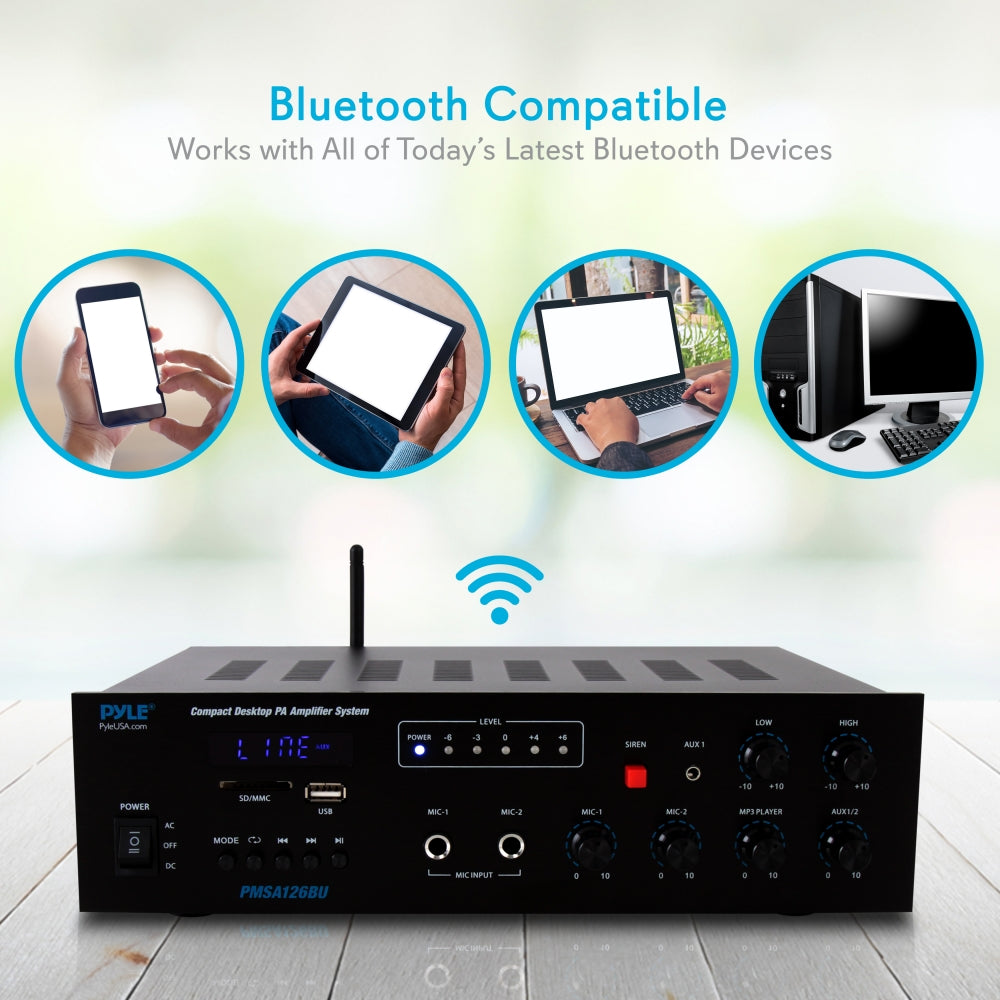

Connectivité Bluetooth :
- Récepteur audio Bluetooth intégré
- Appairage simple pour diffusion de musique sans fil
- Compatible avec tous les derniers appareils Bluetooth d'aujourd'hui
- (Smartphones, tablettes, ordinateurs portables, ordinateurs, etc.)
- Version Bluetooth : 5.0
- Nom du réseau Bluetooth : 'PYLEUSA'
- Portée sans fil : jusqu'à 40'+ pieds (env. 12m)

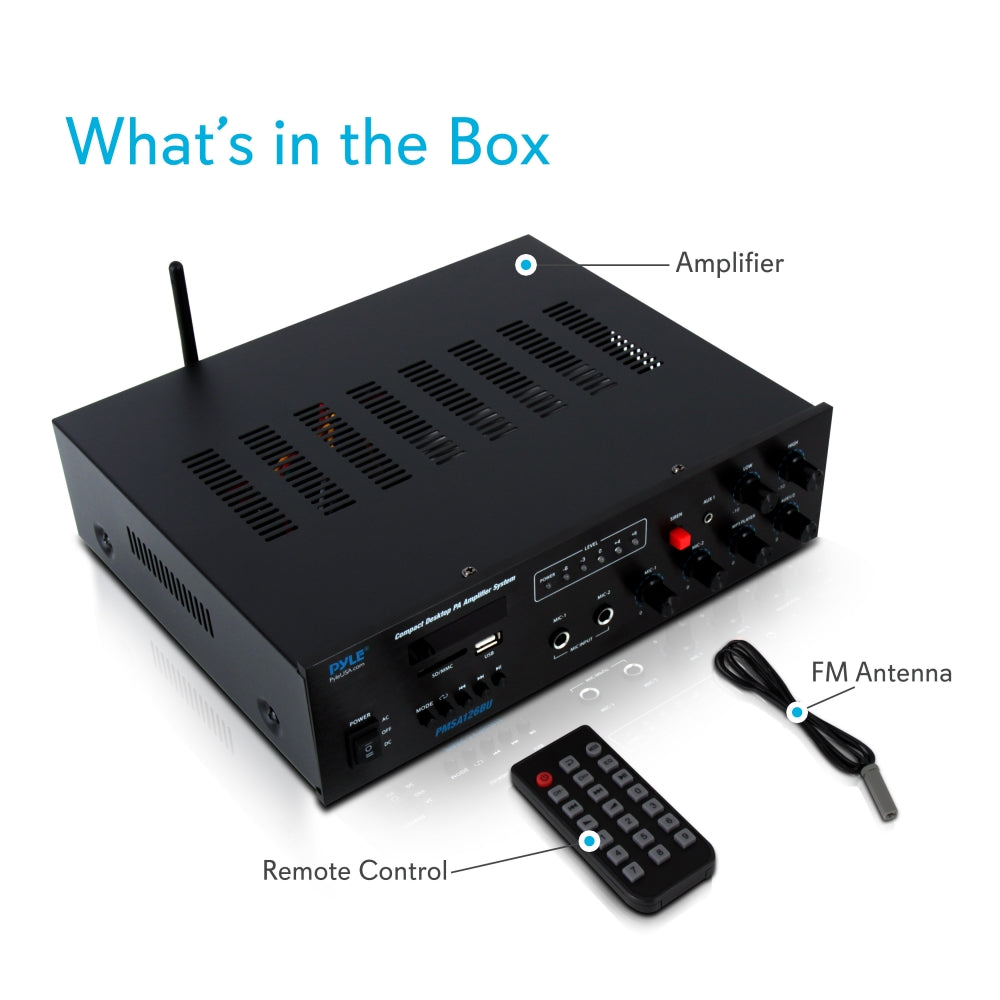

Contenu de la boîte :
- Amplificateur PA
- Télécommande
- Antenne FM
Spécifications techniques :
- Puissance de sortie : 500 Watts MAX
- Réponse en fréquence : +/-3dB, 100Hz-20 kHz
- Impédance : 4/8/16 Ohm
- T.H.D. : <1,0%
- Rapport S/B : >90dB, Micro <80dB, Ligne >80dB
- Sensibilité microphone : 12mV
- Prise en charge mémoire USB/SD : jusqu'à 32Go
- Compatibilité de lecture fichiers numériques : MP3/WAV/WMA
- Pile de la télécommande : (1) x CR-2025 (incluse)
- Interrupteur d'alimentation sélectionnable : AC/Off/DC
- Alimentation : 120V, 60Hz (entrée 12V DC)
- Dimensions (L x l x H) : 11,8'' x 10,2'' x 3,14'' - pouces
Contenu de la boîte
MANUELS & TÉLÉCHARGEMENTS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I'm seriously considering buying this item for a municipal swimming pool, as a replacement for the 80's era Realistic amplifier it has now. Is there an internal cooling fan?
There is no internal cooling fan
-
Confused on where goes my connections go from amplifier to speakers please help?
This amp is a 70Volt MONO amplifier.
Speakers to be used for this unit should also be 70Volt speakers
connection configuration should be in parallel and speaker Wattage will varry depending on how many speakers will be used -
How do you program the FM radio presets on the pmsa126bu? Thanks!
Press the Mode button and select FM.
Press the Play/Pause button to let it automatically scan for all available strong signals.
Once all stations are scanned and saved, you can navigate through them by pressing the PREVIOUS and NEXT buttons.
-
Can you connect a string of 70v speakers as well as one 8 ohm sub?
Only 70V
-
What are the limits for USB drives, Size, type ? USB2 USB3 16 gb 32 gb 64 gb ?
USB/SD Flash Memory Support: Up to 32GB
-
how to tune receiver
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
Hi! How may I get a Line Out signal? This why I want to connect to the PSMA126BU another amplifier, Thanks in advance for your answer!
There is no Line out on PSMA126BU
