Bluetooth Audio Amplifier System
Bluetooth Audio Amplifier System
3 Year Warranty
30-Day Returns
Free Shipping in U.S.
Impossible de charger la disponibilité du service de retrait
About this item
DETAILS
Features:

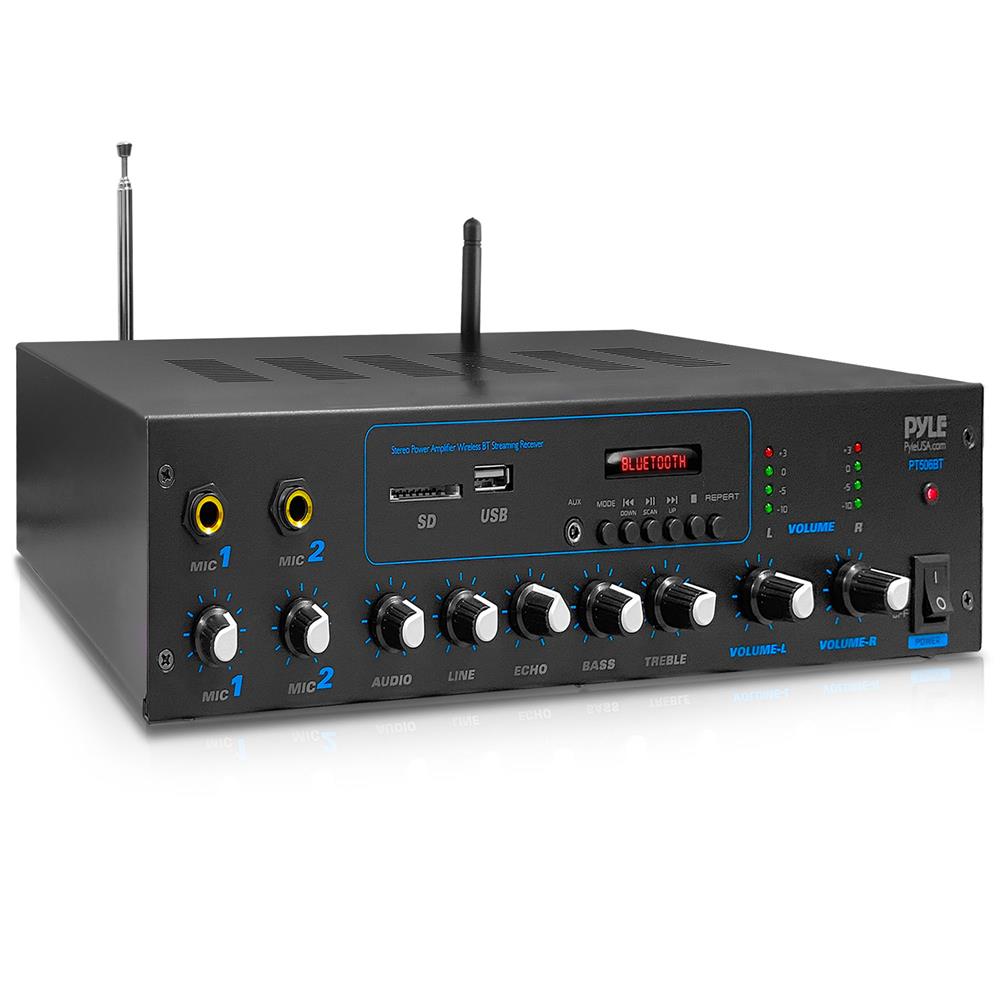

- Compact Stereo Amplifier Receiver
- Desktop Home Theater Audio System Design
- Built-in Bluetooth for Wireless Audio Streaming
- Connect & Stream Audio from External Devices
- Digital LED Display with FM Radio
- USB Flash Drive & SD Memory Card Readers
- USB Port Doubles as Device Charge Port
- Aux (3.5mm) Audio Input
- RCA (L/R) + Subwoofer Input Connectors
- (4) Pair Push Type Speaker Output Connectors
- (2) 1/4'' Microphone Input Jacks

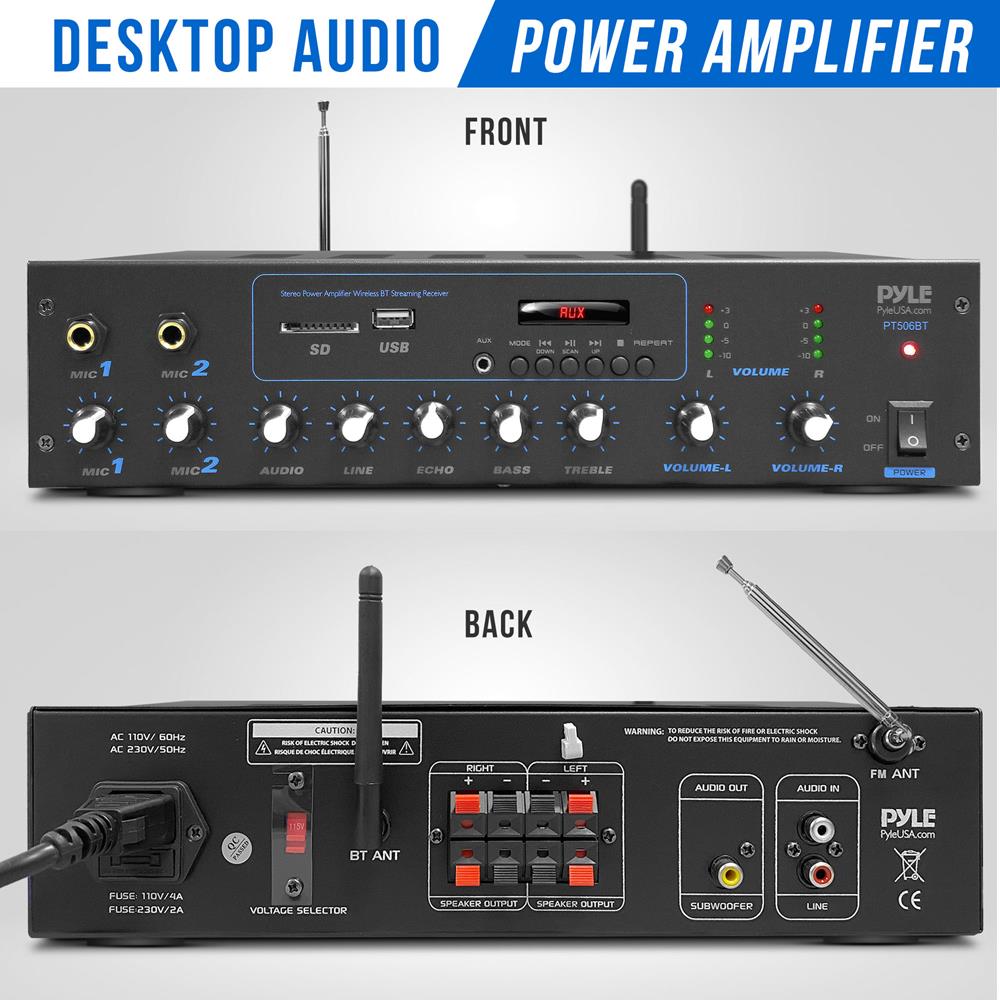

- Front Panel Audio Control Center
- Selectable Audio Input (BT/USB/SD/FM/AUX)
- Line, Echo, Bass, Treble, Mic1, Mic2 Rotary Controls
- Built-in Short Circuit and Over Voltage Protection
- Perfect for Home, Office or Business Audio Applications
Bluetooth Connectivity:
- Works with All of Your Favorite Bluetooth Devices
- Bluetooth Version: 4.0
- Wireless Range up to 30’+ ft.

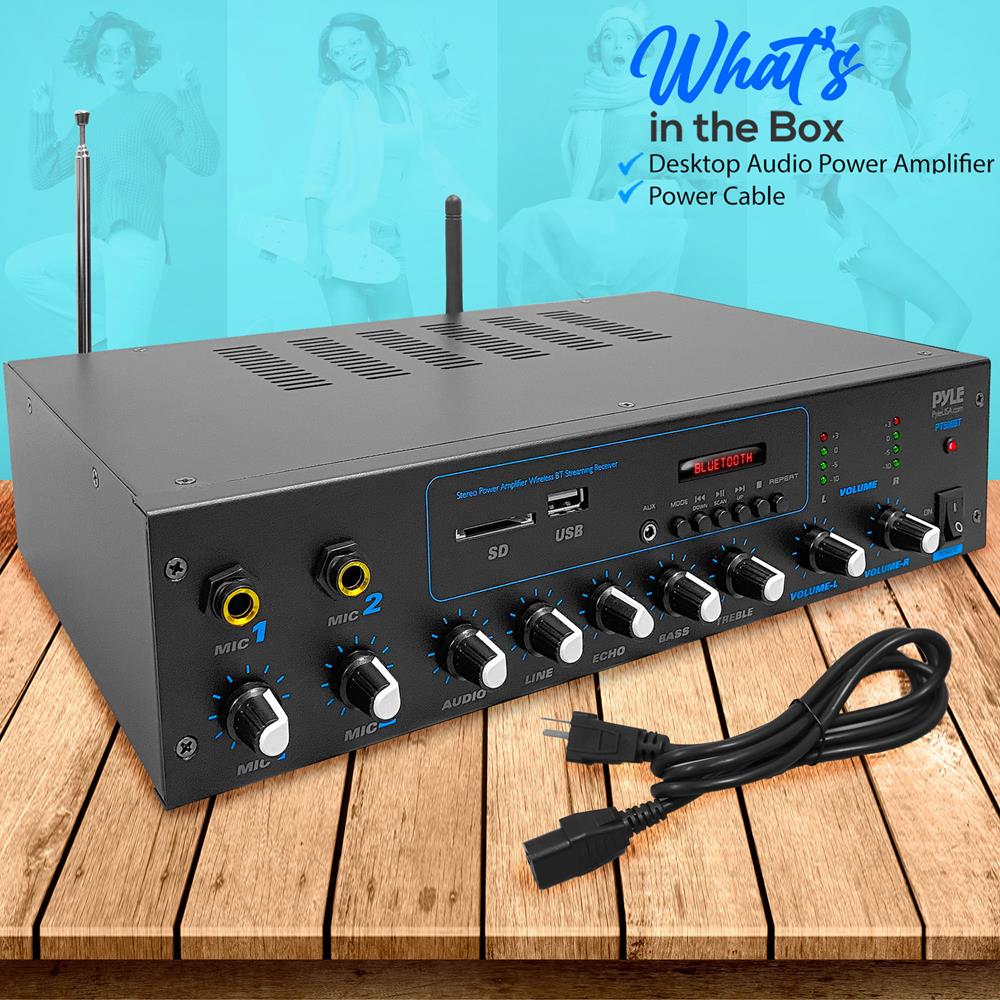

What’s In The Box:
- Amplifier Receiver System
- Power Cable
Technical Specs:
- Power Output: 600 Watt MAX
- Frequency Response: 20Hz - 20KHz
- Signal to Noise Ratio: >81dB
- T.H.D.: <0.1%
- Radio Station Memory: 30 Station Presets
- Digital File-type Compatibility: MP3, WAV
- Maximum USB/SD Flash Support: 32GB
- Construction Material: Engineered Metal Alloy Housing
- Power Supply: 120/240V
- Dimensions (L x W x H): 12.6’’ x 7.5 x 3.0’’ -inches
What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can you repair parts for pt506bt
Yes.
-
Usb port doesn’t work for Mp3 in my Pyle PT506BT UNIT. My flash memory works well in different devices
Please double-check if all files are on MP3 and not in iTunes
-
hacen envios a honduras
Not really sure how far we ship but you can check it online if Honduras is on the selection
-
I have model PT506BT and I'm not able to connect by Bluetooth
Just press mode choose Bluetooth and then pair
-
My unit is not working. All lights and functions seem to be working, but can't get any sound to come out. Input levels on left and right VU meters show no signal coming in. Any suggestions?
Please make sure that all speakers are properly connected. If you are using the Audio IN at the back, please check on the Audio and line volume if they are both up and the master Left and right volume. Audio volume is for the USB/SD, Bluetooth, and FM Radio
-
How do you program a radio station. I cant get the radio to stop on a station
Press the mode button to select FM, and then you can press the play pause button to scan all radio stations. Once you have done scanning you can now search using the NEXT and PREVIOUS buttons to locate the station you want to listen to but you can not assign your favorite station
-
Where is the remote control
This unit does not have remote control and can not be controlled by a remote.
-
Will this amplifier work with your pitiful boombox phcd22?
This amp is not match with phcd22
-
Hello, We need 24 for training purposes. Can we have the schematic for the PT506BT amplifier?
Schematic diagram are not available
-
What's the continuous wattage
60W at 8 ohm load for per channel.
-
Are the amp channels bridgeable?
No it is not bridgeable
-
What is the warranty on the PT506BT.5 Purchased thru Amazon 1/25/24 Left size stereo connector has stopped working
This unit is entitled for a one year warranty for parts and service from the time it was purchased.
-
The website pictures show a BT & FM antenna, but the user manual only shows 1 antenna. Which is correct ?
BT & FM antenna
-
is this capable of A/B Speaker output, able to turn A or B off, or play both A/B at the same time???
No.
