About this item
Product Highlights


                  DÉTAILS

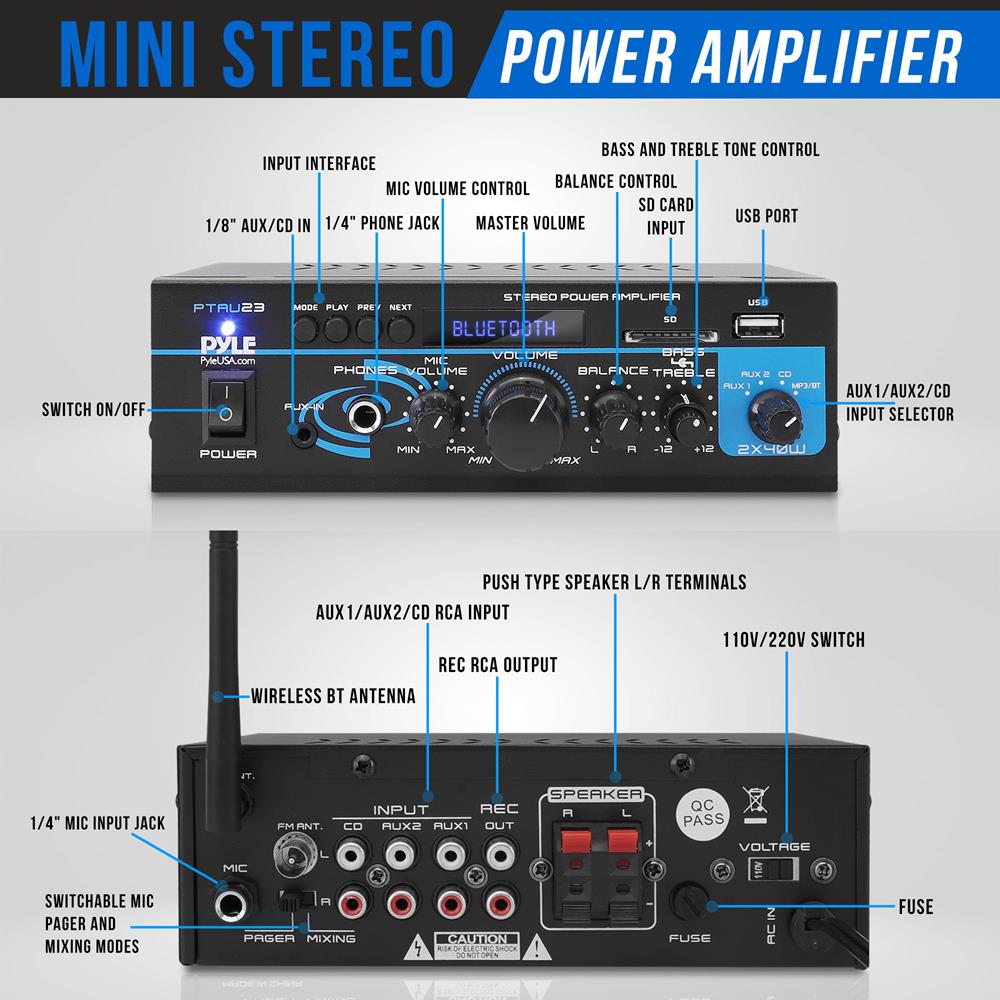

                      Caractéristiques :
- Sortie RCA REC
- Prise téléphonique 1/4"
- Entrée MIC 1/4"

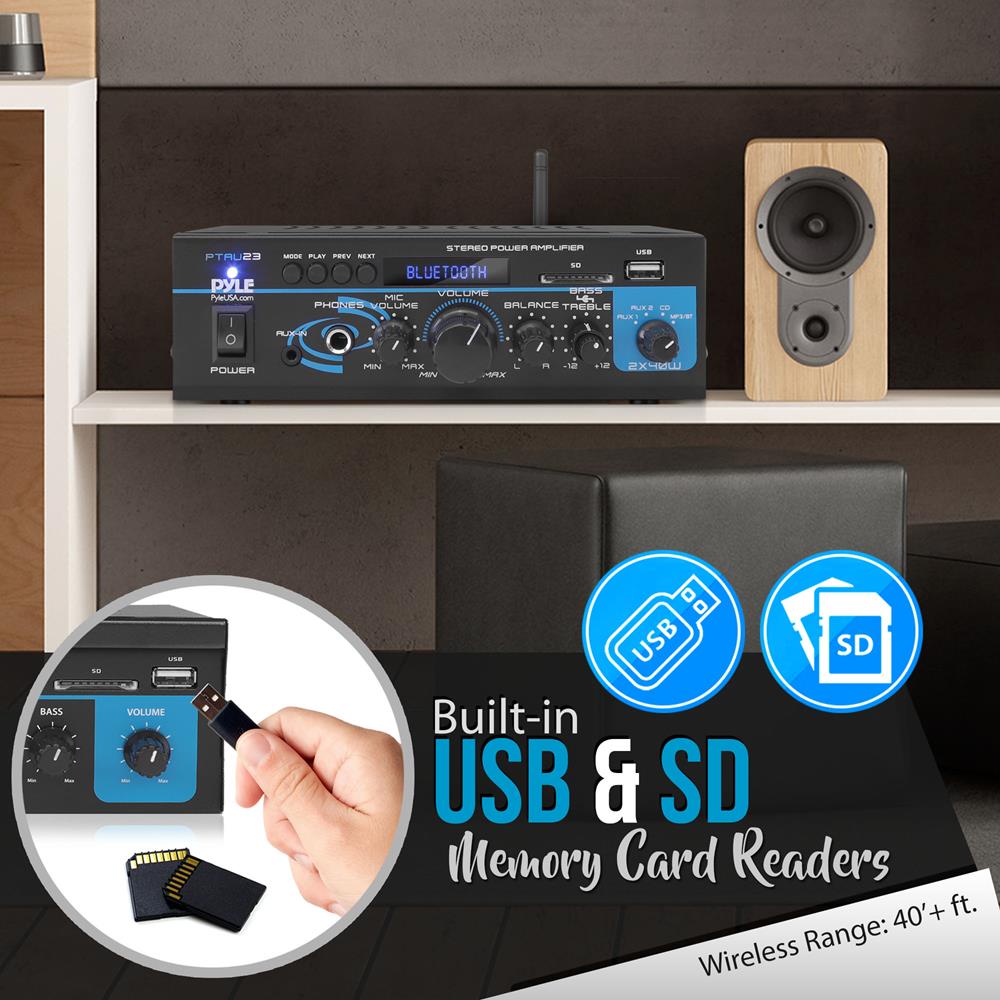

- Lecteurs de clé USB & carte mémoire SD
- Affichage LED numérique pour les informations de lecture
- Bluetooth intégré pour la diffusion audio sans fil
- Compatible avec la lecture de fichiers audio numériques MP3
- Entrées AUX1, AUX2, CD & RCA
- Quatre bornes de haut-parleurs L/R à pression
- Modes Pager et Mixage MIC commutables
- Entrées AUX1, AUX2, CD, USB commutables
- Contrôles des basses, des aigus, de la balance, du volume principal & du micro
Connectivité Bluetooth :
- Récepteur audio Bluetooth intégré
- Appairage simple pour la diffusion musicale sans fil
- Compatible avec tous les derniers appareils Bluetooth d'aujourd'hui
- (Smartphones, Tablettes, Ordinateurs portables, Ordinateurs, etc.)
- Version Bluetooth : 5.0
- Nom du réseau Bluetooth : « PYLEUSA »
- Portée sans fil : jusqu'à 40'+ pieds

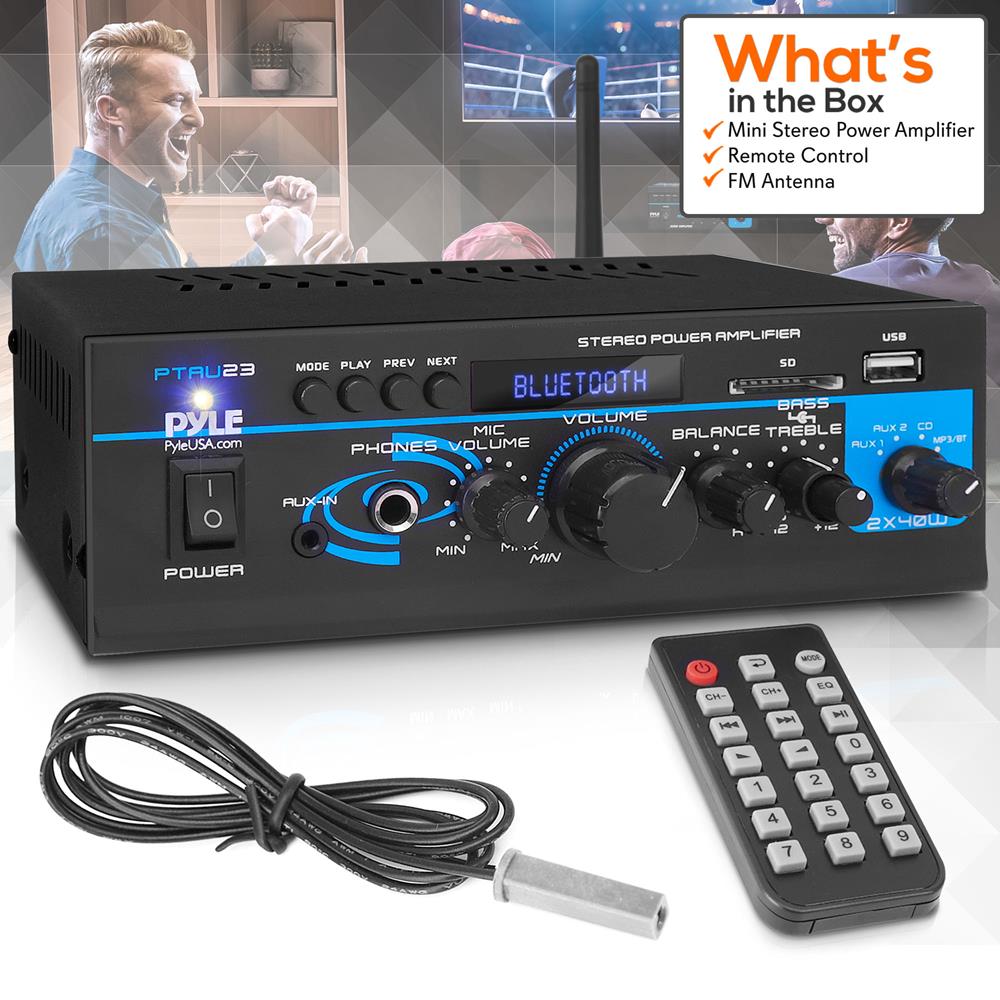

Contenu de la boîte :
- Mini amplificateur stéréo de puissance
- Télécommande
- Antenne FM
Spécifications techniques :
- Puissance de sortie : 2 x 40 Watt crête
- Puissance de sortie RMS : 8 Watt x 2 @ 8Ohm
- Alimentation : 120V /240V
- Matériau de construction : fer
- Batterie de la télécommande : (1) x CR-2025 (incluse)
- Impédance : 4-8Ohm
- Réponse en fréquence : 20Hz-20KHz

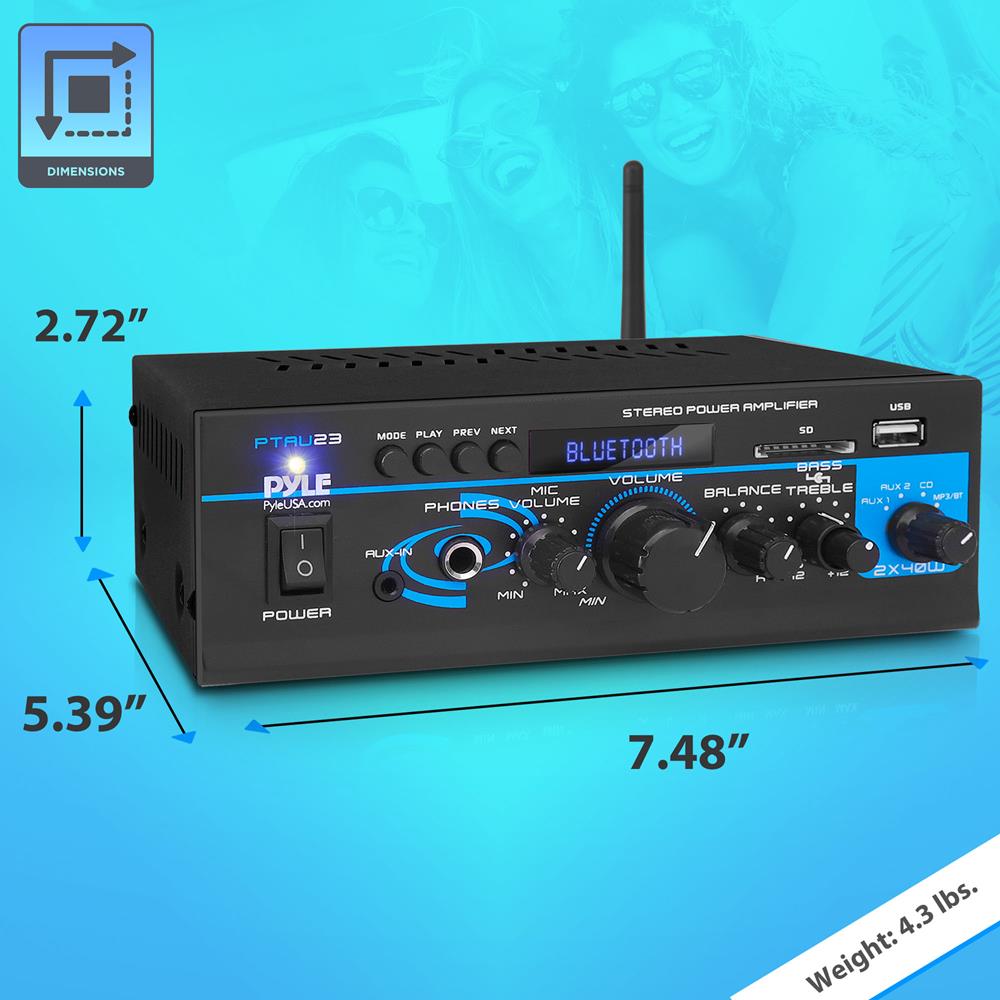

- Dimensions (L x l x H) : 5,39'' x 7,48'' x 2,72'' -pouces

                  Contenu de la boîte


                  Spécification


                  MANUELS & TÉLÉCHARGEMENTS

                    Questions & Answers
                      QUESTIONS & ANSWERS
Ask a Question-
         Work with TV audio? These units are not equipped with HDMI (ARC) or Optical Digital
-
         Why does'nt the instructions explain how to use the FM radio. How do I switch between the FM channels that were saved when i was pushing buttons? How do I scroll up and down the FM stereo guise manuely? Why does'nt it say anything about the EQ? Once the Stations have been scanned and saved, just use the previous and next button to search for the desired station to listen to
-
         What is its THD (Total Harmonic Distortion)? What is its SNR (Signal to Noise Ratio)? What is its sensitivity at its line input? The THD and SNR are both not available in our documentation.
 Please contact us through our email support system to assist you further. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
         ARE YOU PRODUCING THE PTAU 23.5 BLUE TOOTH ?? WITH BLUE TOOTH . WHEN (NOT THE PTAU23) They have Bluetooth features
-
         My church has an old PTAU34, which has run our sound system for around 12 years. We recently got a PTAU23 because we needed to have Bluetooth capability. Our plugin microphone (which works fine on the old system) initially had very low volume, and now doesn't work at all. Bluetooth and Aux (for a CD player) settings work fine. Is there a settings or compatibility issue? Or do we have a defective microphone jack? Check if the microphone works with another amplifier system to rule out any issues with the mic itself. It's also possible the microphone cable is faulty—try replacing the cable to see if that resolves the problem.
-
         how do i scan for radio staions Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
         How do I play USB mp3 music? To play MP3 music with the PTAU23 amplifier, you will need to use the USB 2.0 input interface on the front of the amplifier.
