Récepteur audio sans fil mural 100W Ampli Entrées USB/Aux Blanc

What is the normal outside operating temperature range for this unit? I am looking at installing it outside in a weather proof box to power patio speakers.

This wall plate is not meant for outdoor installation. Therefore the operating temperature range is not available.

How do you install this to your in-ceiling speaker system (PDICBT286)? Do you still use the Bluetooth box that comes with the speakers? Do you take that out and wire the speakers to this wall mount? When i bought these they came together but there are no instructions on how to pair them together.

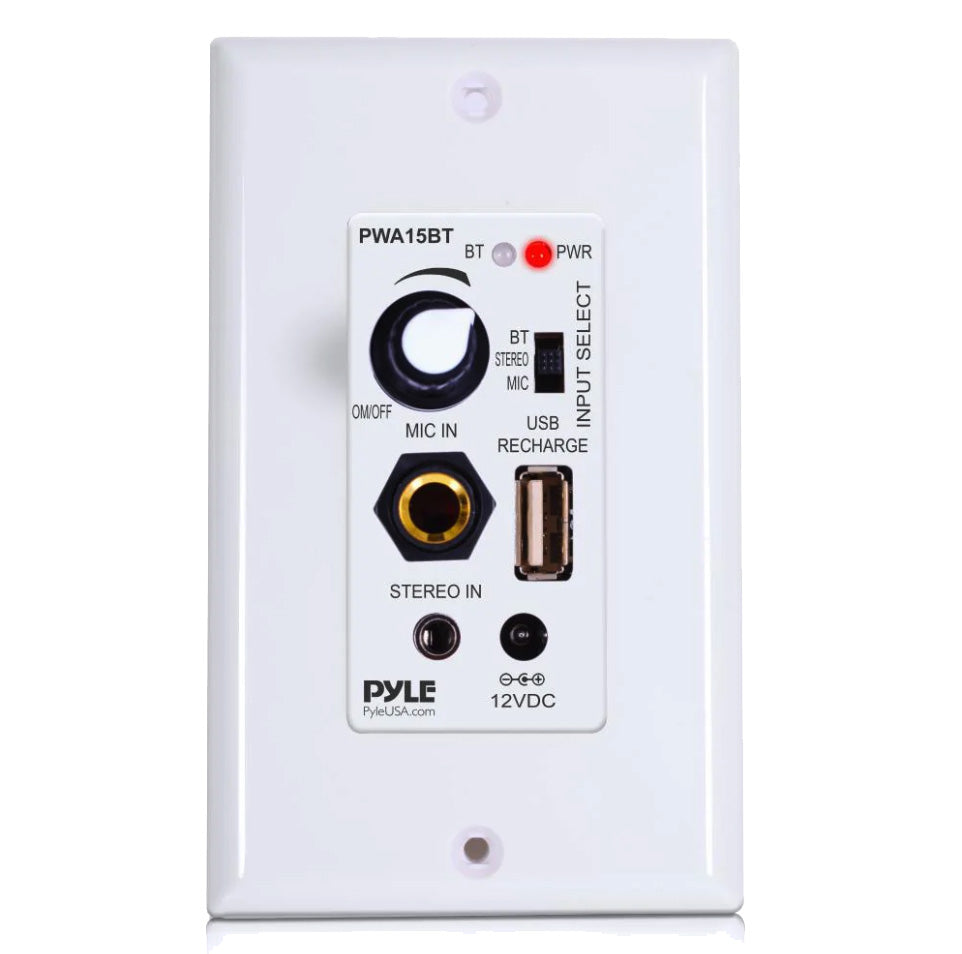

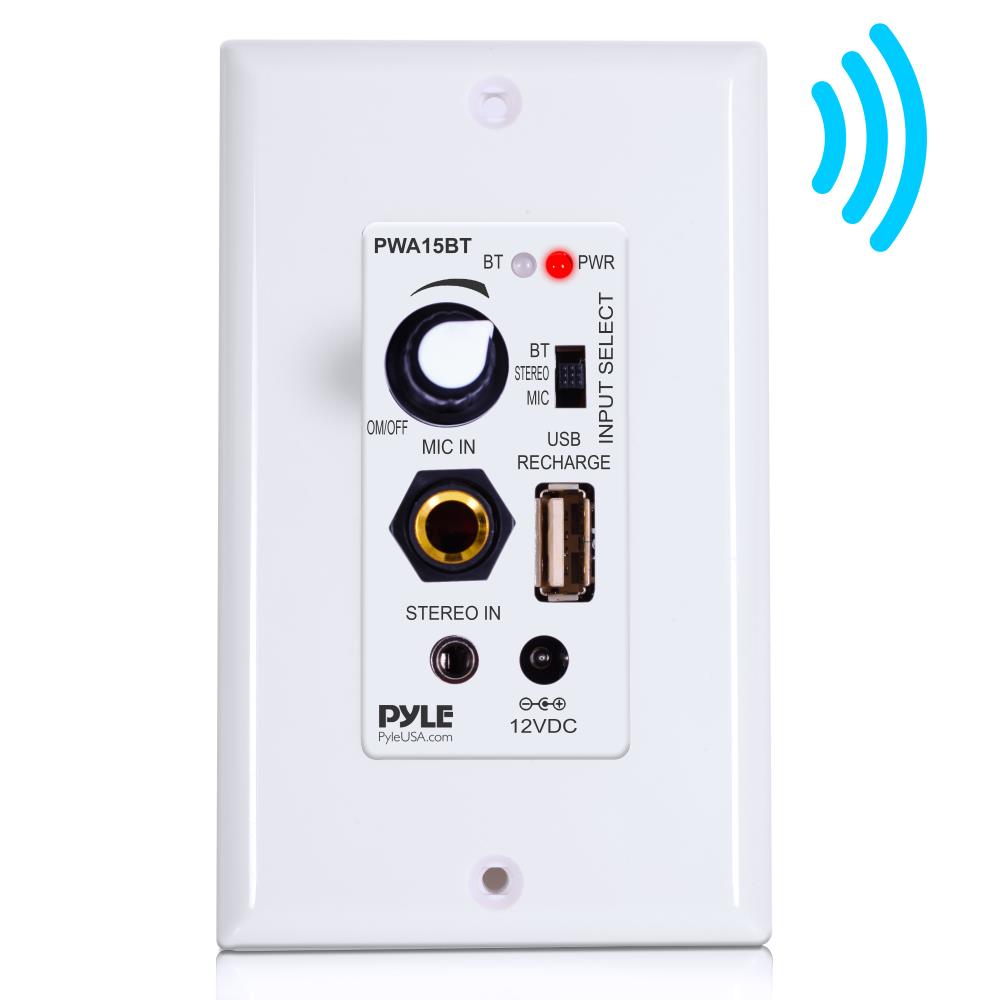

The PWA15BT is a 2 speaker wall plate

We are just finished installing the wall mount PWA15BT. ONLY TO DISCOVER THAT THE line cable/connector from the Pyle wall unit to our receiver has 2 male plugs at the end but our receiver is only set up for direct wire connections - not plugs. Is there an alternative input-at-one end and wire at the other end connector available ?

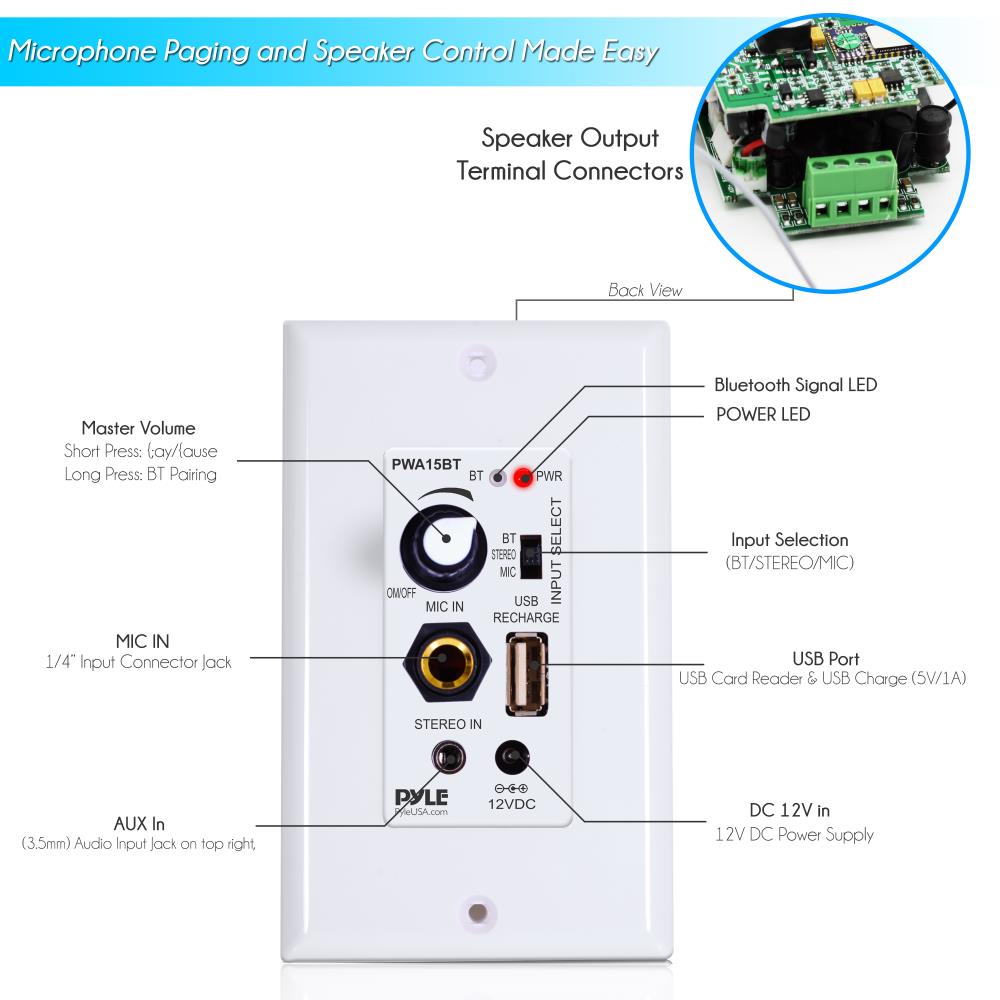

Check Page 6 for the low-level inputs Marked as C, D, E / Ground, Left, Right

http://manuals.pyleusa.com/PDF/PWA15BT.pdf

What kind of speaker wire do I use? How does the speaker wire stay secure in the terminal?

16AWG speaker wire. Screw tight the speaker wire on the back of the plate

We use these in Ophthalmology practice in individual provider pods to establish patient fixation points. We are in need of an additional 10 of the Pyle PWA15BT devices. Will they be available again or can you suggest a different one by Pyle? If so where is the best place to buy them asap as construction is nearing the end.

We currently still have no stock. As per checking there has been an order placed for this but we do not have an ETA for the replenishment

Do you have a manual for installing?

http://manuals.pyleusa.com/PDF/PWA15BT.pdf

Is PWA15BT obsolete product ?

It is just out of stock

When will this product be available. My electrician has one and recommended it. Thank you. Sondra Tammam

We are still waiting for the arrival of the units

Regarding PWA15BT when it will be avilable ?

This is still out of stock but the order is on the way.

Can this be used to pair wired speakers with a Bluetooth transmitter connected to a TV?

We have not tried this type of connection. However, you can try.

The PWA15BT is wired to a pair of speaker and can be connected to a Bluetooth device

How does it work as a microphone?

Simply connect a microphone to the Mic Jack and toggle the switch to Mic

I understand not idea scenario and you may have to limit volume so the unit doesn't overheat but can I splice on the channels to run a 3rd speaker?

The PWA15BT is designed only for a pair of speaker

When will it be available again?

https://www.amazon.com/Pyle-Bluetooth-Receiver-Amplifier-Microphone/dp/B010U5EGKE/ref=sr_1_1?dchild=1&keywords=PWA15BT&qid=1621965227&sr=8-1

How can I install this product with a 70v background receiver system? In order to enjoy a central background sound keeping bluetooth as a local second alternative for each site or ambient

This PWA15BT has its own builtin Amplifier with a 100 Watts Max @ 8 Ohms

How do I connect the speaker wires? I don't see a way to insert them in the small holes.

Use 16AWG speaker wires.
loosen the screws on the speaker terminal.
insert the speaker wires and tighten them

Where can I find a compatible plug for this? The cord isn’t long enough to plug into the outlet

https://www.amazon.com/Adapter-100-240V-Transformers-Switching-Wireless/dp/B073WSWT34/ref=sr_1_3?crid=SDRNUNNQBEZI&dchild=1&keywords=12+volt+3+amp+dc+power+supply&qid=1616821186&sprefix=12+volt+3amp+%2Caps%2C890&sr=8-3

How do you wire the 12 volts from the back of the unit without plugging into an outlet?

You can run a 2 conductor 16 AWG speaker wire color-coded as red and black inside your wall. Tap the Red and black wire of the PWA15BT and on the other end of the wire is where you tap to the AC/DC power converter. Please check the link for the power converter:

https://www.amazon.com/ALITOVE-Transformer-Switching-Converter-Security/dp/B078RTV9C4/ref=sr_1_4?dchild=1&keywords=10+ampere+12+volts&qid=1616816415&sr=8-4

How do you wire this to have power without plugging into an outlet

it has a 12 volts socket at the back you can power 12 volts from the back of the unit

I want to hard-wire a 12vdc power supply to the unit. How many amps should I be supplying the unit?

You can use a 12 volts 10 ampere power supply

I have this hardwired in the wall and connected to speakers in the ceiling. Is there a way to connect to bass speakers?

The unit is not provided to have a subwoofer output

My pwa15BT lost its pairing. It doesn’t show on my Bluetooth choices many more. What happened?

Check all devices that have been paired to the unit and have them all disconnected or unpair them all. 2nd, you can power down the unit by disconnecting the power supply. The power it back up and try pairing you phone again

The bluetooth do not work why? The blue light is blinking but any divice recongize the bluetooth

If you are within the 30 days replacement period please contact the seller. If it is past 30 days
Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

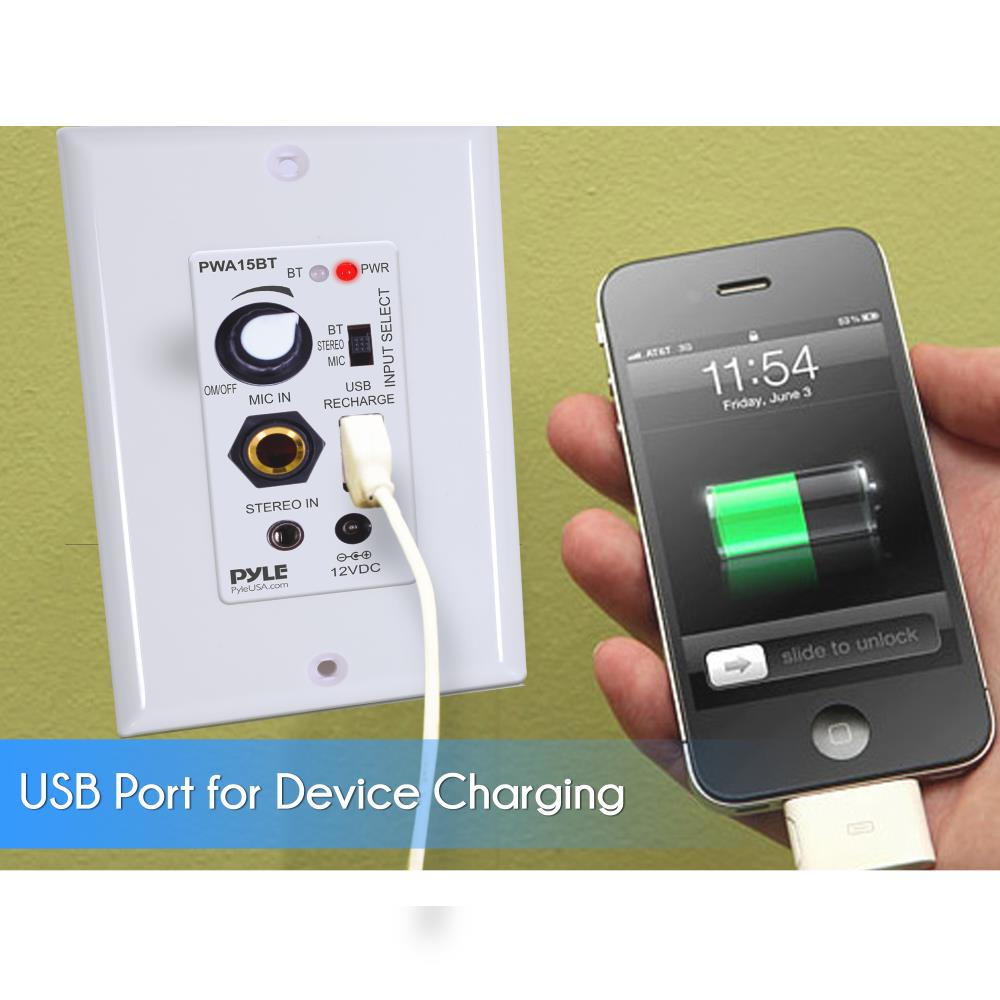

The usb does not charge my iPhone. Should I return the product?

Yes please if the unit gets power it should charge the phone

I understand the USB does not play music. Do you have to wire the box so that it will charge a phone while listening to music. Once I plug in the unit should the usb be working or do I need to wire something or ground something? It will not change anything but everything else works

The PWA15BT USB port should work as soon as it is powered up

Usb in front does not work should I have hard wired it in some way?

USB is meant for charging mobile devices only. it does not play music.

How do you get the usb to work?

The USB port provided at the PWA15BT is for charging port.

I purchased 3 of your PWA15BT in wall controllers and had it working with the external Power Supply that plugs into the front of the Controller and into a wall outlet. I hard wired a 12 VDC PS that connects to all 3 controllers. Power supplied is 12-15 VDC, the power light and BT work but there is no sound coming from the speakers, why?

When connected to Bluetooth make sure that the switch is selected to BT and raise the volume slowly

I have this and cant get Alexa to pair with it or find it. I have tried using the Alexa app and pushed the knob in for pairing mode. Any suggestions?

Make sure to have the switch set to Bluetooth before hitting the pair button

What's the difference between the PWA15BT.5 and the PWA15BT???

It's the same. Sometimes, we just make 2 model numbers for one product. The design and features are exactly the same.

What are White and Gray signal wires used for?

Those are antennas for the Bluetooth

I recently purchased from Amazon a PWA15BT. Well trying to install and manual shows gray and white wire for signal. But my does not have those colors on it. So now what do I do? Assuming signal wires are for amplifier? Manual is not very good

THESE ARE AUXILIARY AUDIO INPUT TERMINALS (Optional if not using the Bluetooth receiver)

C - Black - Signal (ground)

D - Gray - Signal Left

E - White - Signal Right

what is the device mac address?

No Mac Address

will my tv be able to connect to this

Bluetooth connection Yes

I just installed two of PWA15BT but I noticed even when I plug in my airport to play music I have to have the bluetooth connected can I by pass this?

It is how it is connected to the wall plate

What type of speakers do you recommend with this product?

https://pyleusa.com/products/pdics6

I moved into a house with this unit on the wall and I would like to use it. What do I do? I tried to turn it on, but there is no power light. Do I need to plug it in? Do I need to install an app?

This unit is powered by a 12V 2 Ampere power adaptor

How to you hardwire to 120v power. I have bear wires, not a plug

This device is only powered by 12volts

How to reset this device. For so.e reason, the first smart device that connected to it has to autherize others. Also, on some smart devices it's not visible. Would like to start fresh with this pyle wall bluetooth. How to reset

Resetting is just by powering downfor a few minutes and turning it back on. Make sure all possible device that were previously connected must be disconnected for the PWA15BT to be come visible again

Is any way to shut off the connect and disconnect sounds? thank you

There is no option to turn off the voice prompt

How do I hardwire this to the panel in my house? It appears the rear connections are for DC only? This doesn't make sense to me as why would you need a car voltage in a in-wall amp? I also do not have the black grey white in the back of mine. I have 2 red, 3 black and 1 white wire coming out of it. 1 red and 1 black are attached to some small connector. Is the small connector where I would wire normal house wires to?

The small connector at the back is for 12Volts connection. This unit isa not provided with a direct AC110V it may damage the unit if accidentally connected

What is the dc power port for

To power the unit externally

Can used a pontentiometer with this amp?

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

Can the transformer that came with my transmitter works at a long distance like 60ft,or is there any alternative transformer that I can buy that can but out 12v?

The transformer that came with your transmitter is a 12V DC power adapter that can supply up to 2A of current.
The maximum distance that it can work depends on the resistance and the gauge of the wire that you use to connect it to the transmitter.

Can this be powered using ethernet cable (PoE) and a PoE splitter (link below) which brings down the voltage to 12v/1amp? 802.3af Gigabit PoE Splitter to 12V/1A with 5.5x2.1mm DC Cable, 10/100/1000Mbps Power Adapter for Security Cameras, Wireless Access Points, VoIP https://a.co/d/7wRl05x

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

Is each channel of the PWA15BT model 4 Ohm? Or both channels equal to 4 Ohm?

4 Ohms each channel

What cable do I use to connect to the TV? I only see a stereo in port on the unit...

You can try connecting the unit via Bluetooth.

I have 2 ceiling speakers each one 150 watt, is it ok to connect these to receiver? or what should be the wattage for each speaker?

The unit cannot handle 2 150watts speakers the unit is only 100 watts.

Hello, I would like to know if there is a way to connect two Bluetooth in wall recievers to each other.

This unit are stand-alone

How do I KICK-OFF someone else who is connected to the in-wall receiver..? When someone else connected to it - I can't connect my own iPhone to it and can't use it.. couldn't find instructions anywhere... TIA!!

the unit that was previously conne ted should disconnetn  to be able to connect the divice

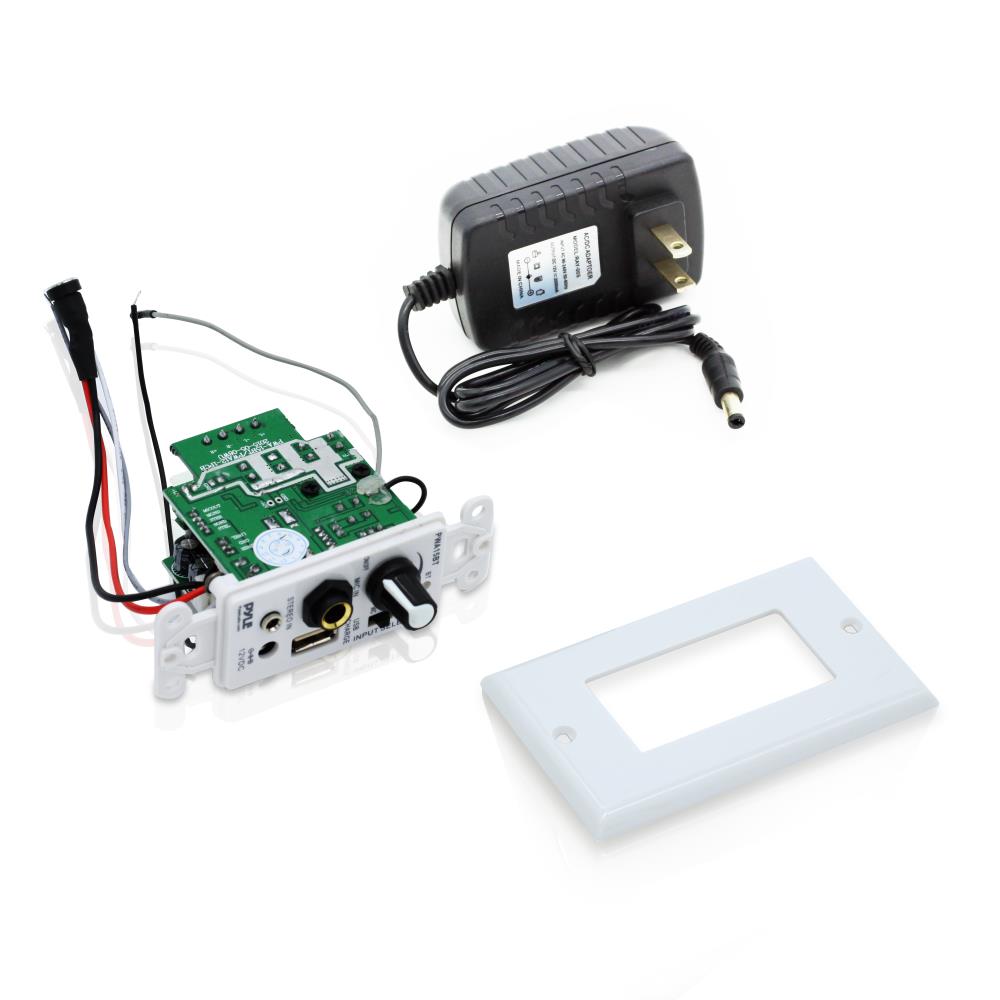

I just purchased 2 of these. On page 6 of the manual, wires A through E do not give me enough information to understand what is what. Mine has 2 red, 3 black and 1 white wire coming out of it. 1 red and 1 black are attached to some small connector with no explanation of what that connector is and how it can be used. That little connector is also seen in the product pictures but appears no where in the manual. Can someone please help me identify which wires go to what and what they can be used for.

A. RED to +12V power
B. Black to -12V power
C. Black to ground Low-Level Signal input
D. Grey to Left Low-Level Signal input
E. White to Right Low-Level Signal input
