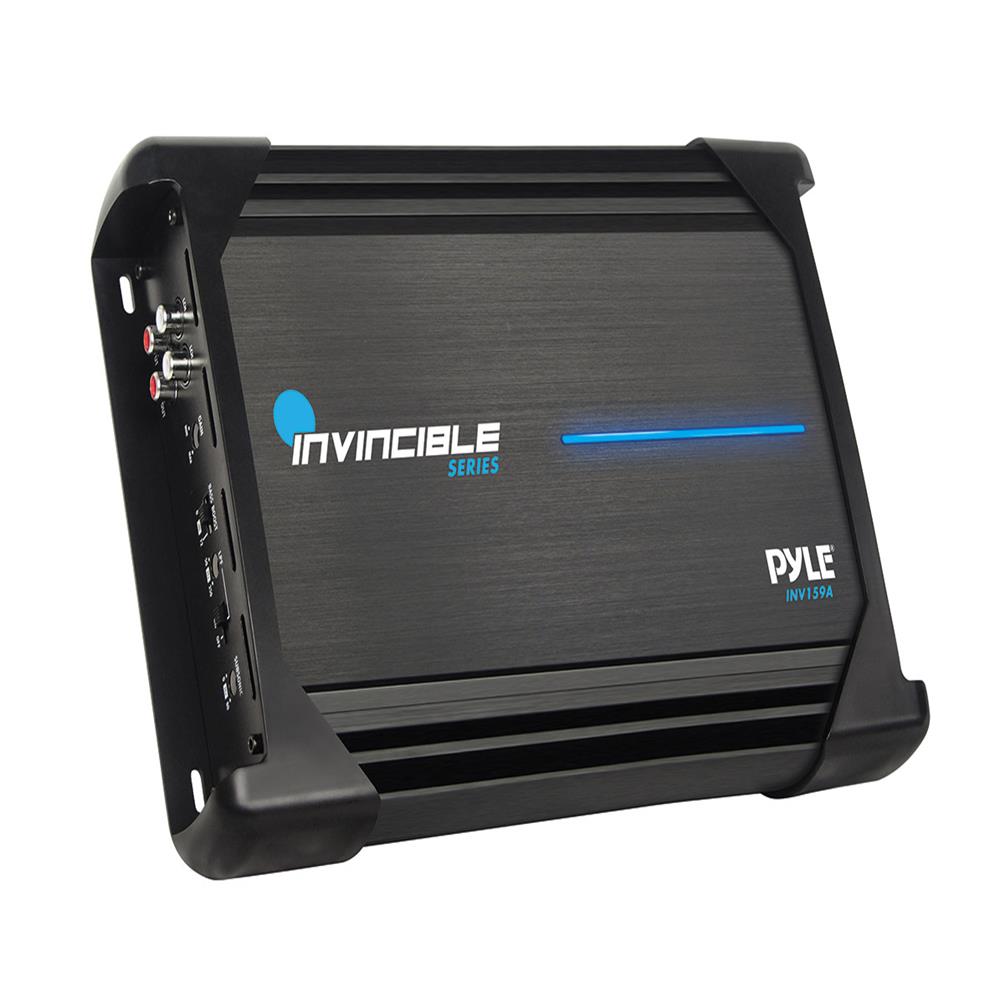

Car Amplifier 3000W Max Class AB MOSFET Advanced Protection

Features:

• Class “AB” High-Current Dual Discrete Drive Stages
• Mosfet PWM Power Supply
• Electronic Crossover Network
• Low Pass Filter Controls
• Bass Boost Circuitry
• Subsonic Circuitry
• PWM (Pulse-Width-Modulation) System
• Custom Terminal Block for Speaker Connection
• Thermal / Overload / Short Circuit Protection
• Soft Turn On/ Off
• Advanced Protection Circuitry
• Chrome RCA Inputs, Power Speaker Terminals
• Line Output (L/R) Channels
• 5 Way Protections
• Power + Protection LED Indicators

What's in the Box:

• Invincible Series Amplifier
• High to Low Converter
• (4) Tapping Screw 0.16 x 0.63’’ -inches
• (4) Spacer Φ4.0
• (1) Fuse-40A

Technical Specs:

• 1 x 650 Watt RMS @ 4 Ohm
• 1 x 1250 Watt Peak @ 4 Ohm
• 1 x 1500 Watt RMS @ 2 Ohm
• 1 x 3000 Watt Max @ 2 Ohm
• Frequency Response 20 Hz-50kHz (±3dB)
• Output Power @ 14.4v DC, 50Hz
• Input Impedance: 20K Ohms
• S/N Ratio: >90dB
• T.H.D.: <0.01%
• LPF Freq. Resp.: 50Hz - 250Hz
• Subsonic Freq. Resp.: 0Hz~80Hz
• Bass Boost(50Hz): 0,6,12dB
• Input Sensitivity:0.2V~6V
• Fuse: 40A x 1
• Product Dimensions (L x W x H): 12.36'' x 8.13'' x 2.28'' -inches

INV159A - Manuals
