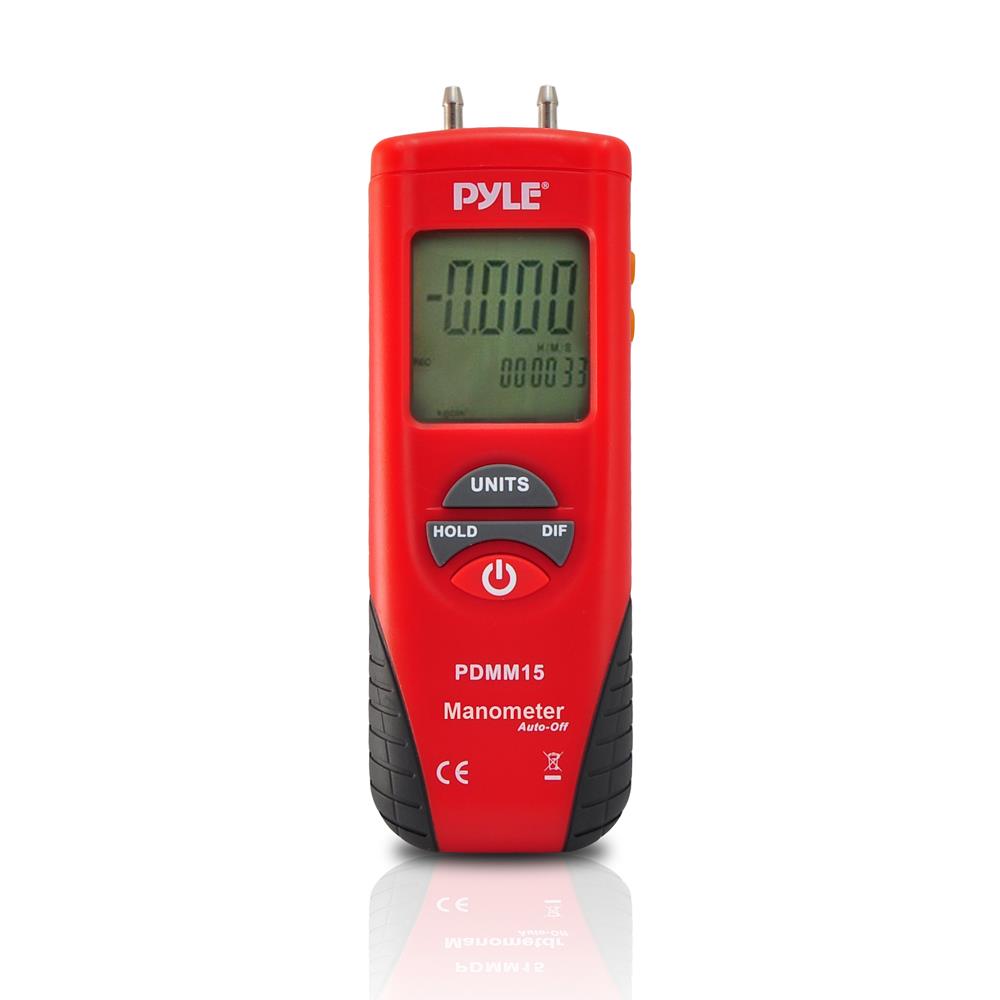

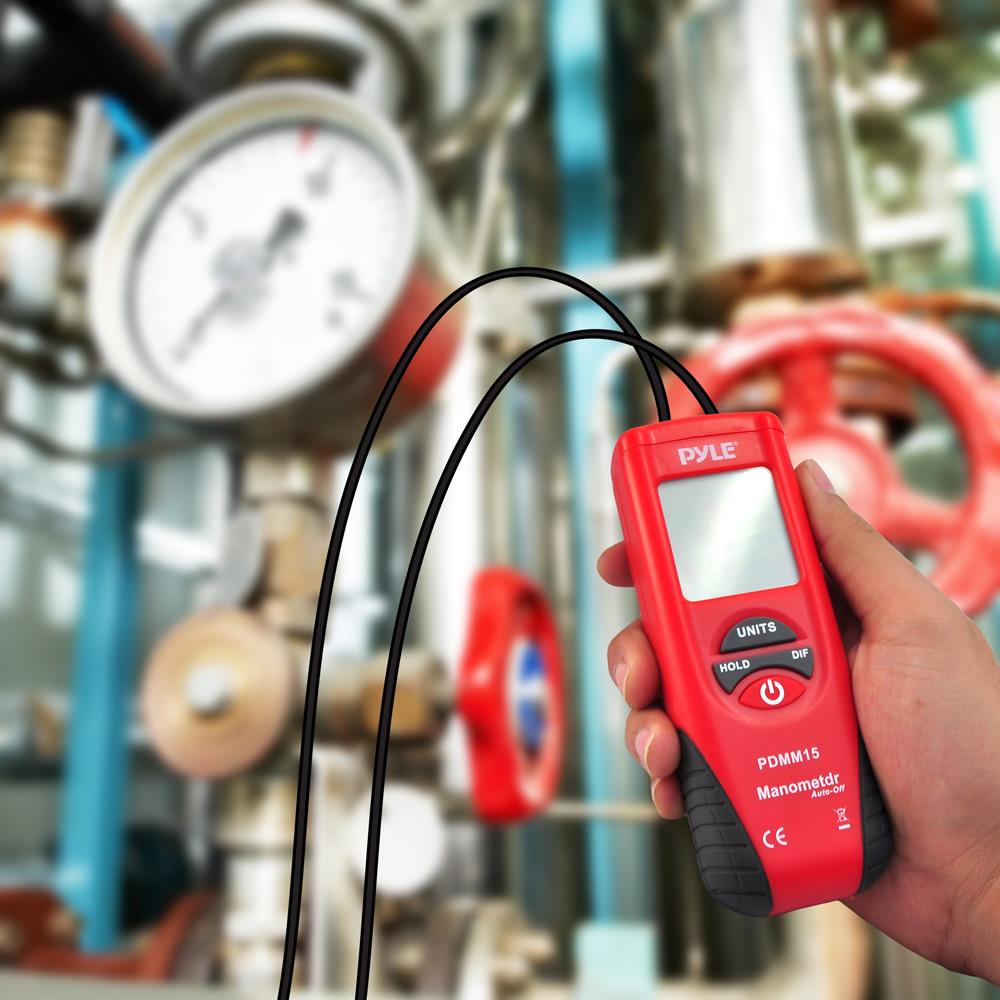

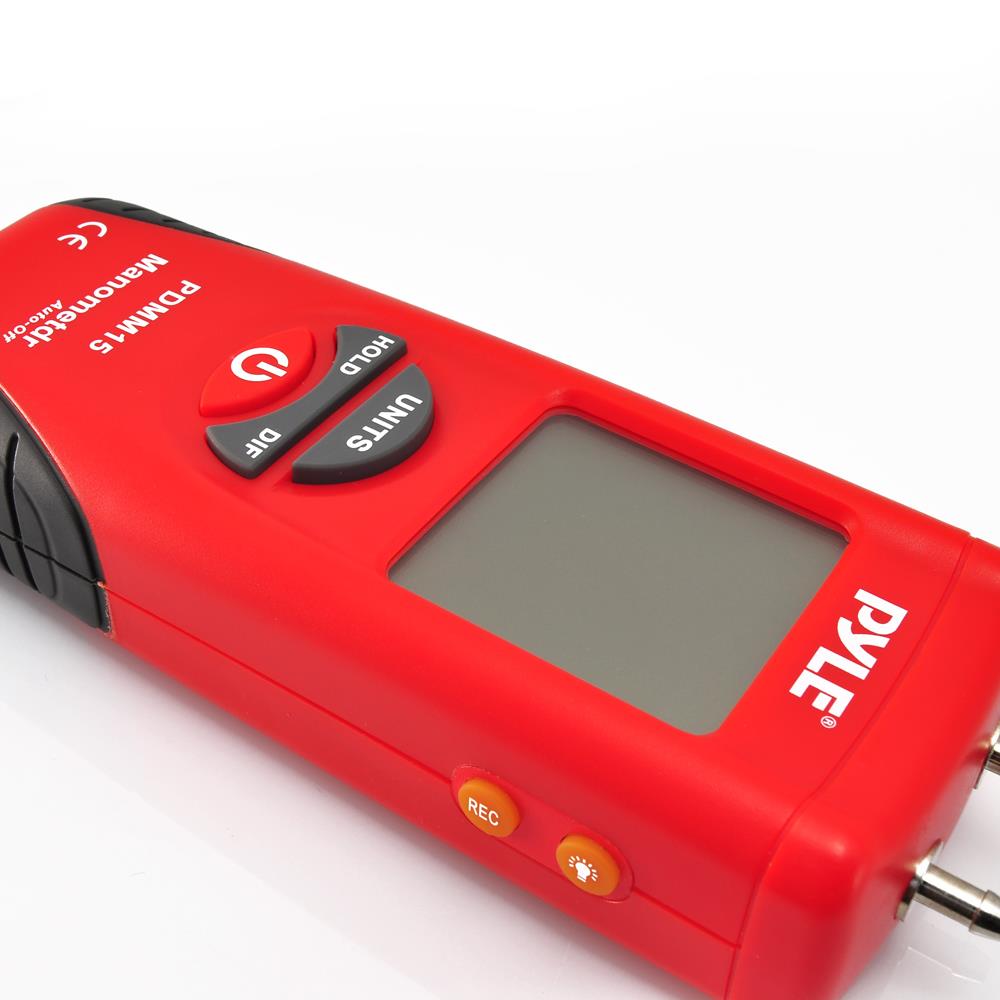

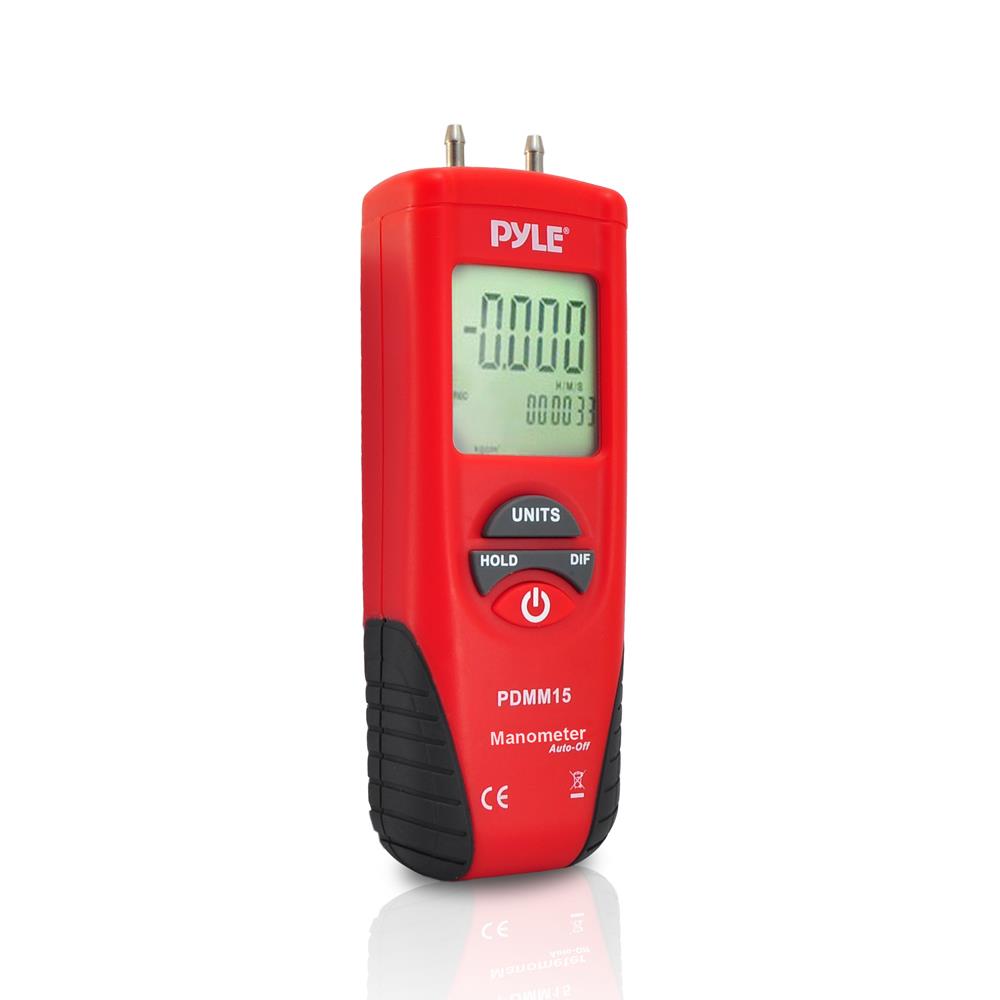

Digital Manometer

• Features: - Easy-to-Use Button Controls - Accuracy: +/- 0.3% FSO (25° C) - Relative Time Clock Display - in Hg: (inches of mercury) - bar: (atmospheric pressure) - mm Hg: (millimeters of mercury)
• 11 Selectable Units of Pressure Measuring - Digital LCD Display with Backlight - Repeatability: +/- 0.2% (Max +/- 0.5% FSO) - psi: (pounds per square inch) - kPA: (kilo-pascals)
• Gauge/Differential Pressure - Battery Operated: Requires (1) 9V Battery, Included - Linearity/Hysteresis: +/- 0.29% FSO - ft H2O: (feet of water) - mbar: (milli-bar (1000mbar = 1bar)
• Minimum, Maximum & Average Data Readout - Low Battery Indicator & Auto Power Off - Response Time: 0.5 Seconds (Typical) - in H2O: (inches of water) - kg cm²: (kilograms per square centimeter)
• 'Hold/Freeze' Data Readout Ability - Over Range and Under Range Indicators - Maximum Pressure: 150 PSI - oz in²: (ounces per square inch) - mm H2O: (millimeters of water)

Features:

• 11 Selectable Units of Pressure Measuring
• Gauge/Differential Pressure
• Minimum, Maximum & Average Data Readout
• 'Hold/Freeze' Data Readout Ability
• Easy-to-Use Button Controls
• Digital LCD Display with Backlight
• Battery Operated: Requires (1) 9V Battery, Included
• Low Battery Indicator & Auto Power Off
• Over Range and Under Range Indicators
• Accuracy: +/- 0.3% FSO (25° C)
• Repeatability: +/- 0.2% (Max +/- 0.5% FSO)
• Linearity/Hysteresis: +/- 0.29% FSO
• Response Time: 0.5 Seconds (Typical)
• Maximum Pressure: 150 PSI
• Relative Time Clock Display
• Included Accessories: Storage Pouch, Flexible Tubing, 1/8'' MPT x 1/8'' Barb Access Filling

Selectable Units of Pressure Measuring:

• in Hg: (inches of mercury)
• psi: (pounds per square inch)
• ft H₂O: (feet of water)
• in H₂O: (inches of water)
• oz in²: (ounces per square inch)
• bar: (atmospheric pressure)
• kPA: (kilo-pascals)
• mbar: (milli-bar (1000mbar = 1bar)
• kg cm²: (kilograms per square centimeter)
• mm H₂O: (millimeters of water)
• mm Hg: (millimeters of mercury)

PDMM15 - Manuals
