Dual Channel Wireless Mic System - Clear Sound, Adjustable Volume, VHF
Dual Channel Wireless Mic System - Clear Sound, Adjustable Volume, VHF
1 Year Warranty
30-Day Returns
Free Shipping in Canada
Couldn't load pickup availability
About this item
Product Highlights
DETAILS
System Features:
- VHF Narrow Band Receiver System
- Dual Frequency Design (Channel A/B)
- High Signal/Noise Ratio Performance
- Broad Frequency Response Range & Low Distortion
- Independent Adjustable Volume Control
- Dual Independent Channel Antennas
- RF Signal and AF Signal LED Indicators
- Radio Frequency and Audio Frequency
What's in the Box:

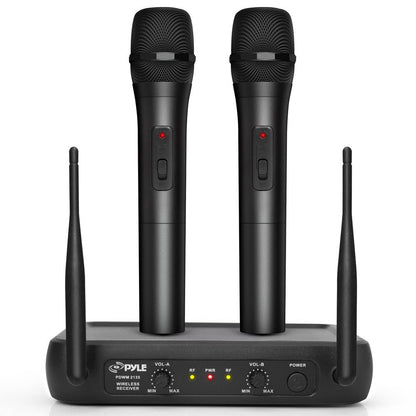

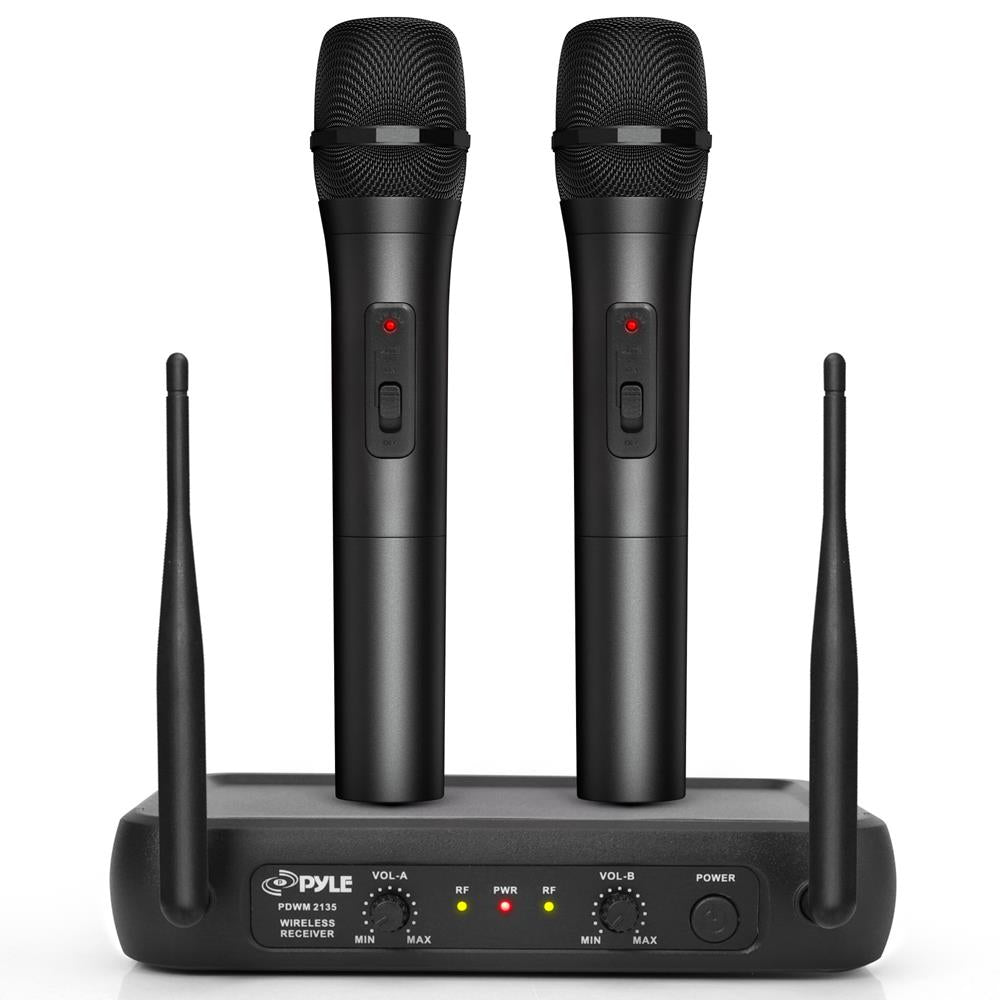

- Receiver Base
- (2) Wireless Handheld Microphones
Handheld Microphones:
- RF Power Output: >13dBm
- Modulation Degree: >30KHz
- Power Current: <110mA
- Harmonic at Higher Degree: <60dB
- Modulation Pattern: FM
- Battery Powered, Require (2) x 'AA' Batteries -Each
System Receiver:
- Sensitivity: -95dBm (S/N:12dB)
- RF Image Rejection:-75dB
- Audio Dynamic Range: 95dB
- T.H.D.: <1%
- S/N Ratio: >70dB
- Neighboring Channel / Interference: >70dB
- Power Supply: AC 120V, 60Hz
- Receiver Dimensions (L x W x H): 8.07'' x 5.75'' x 1.64'' -inches
What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-

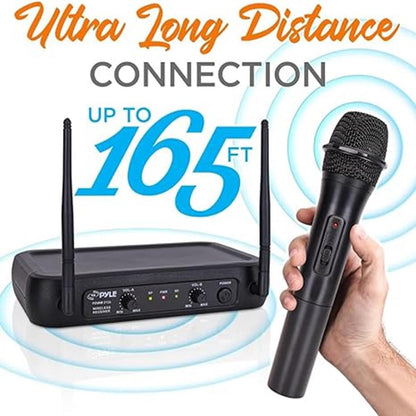

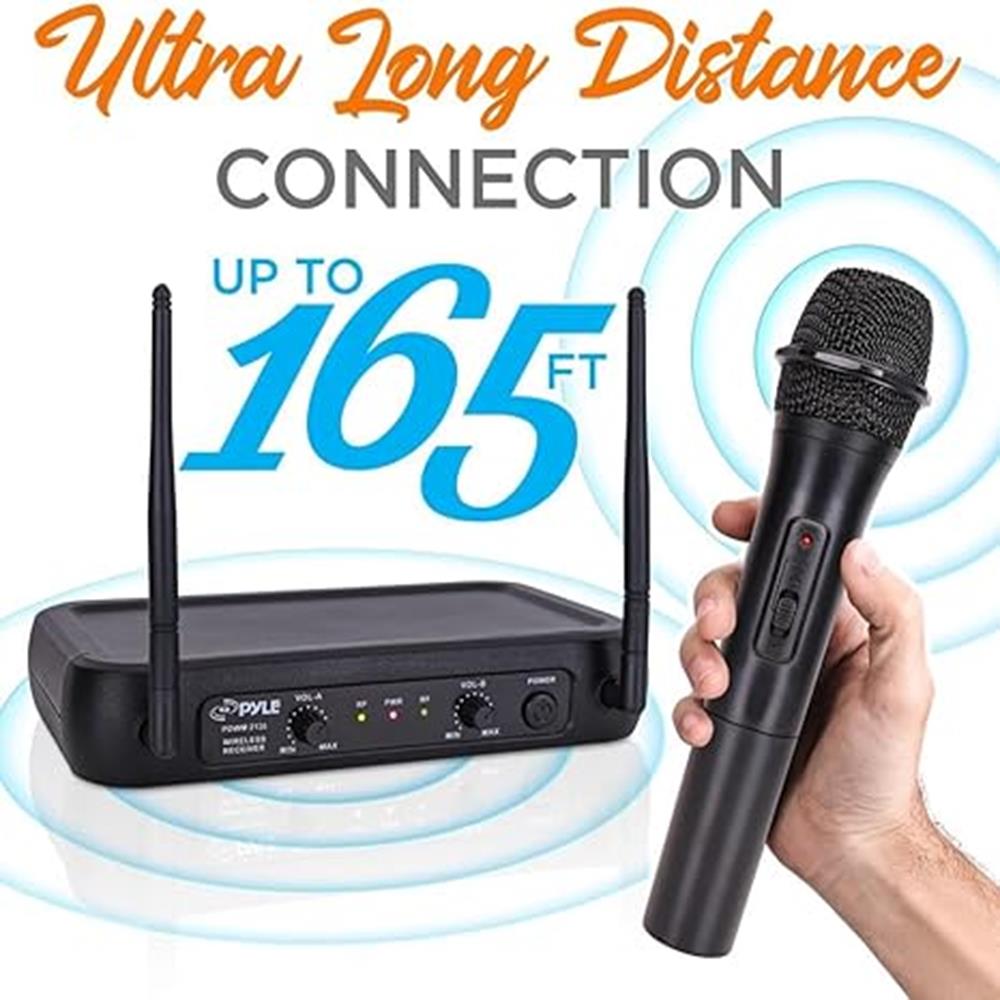

What is the range
The range is about 160 feet with a clear line of sight.
-
When the mic is in the mute position is it draining batteries
Yes, the mic still uses a small amount of battery power when muted, so it’s best to turn it off completely when not in use.
-
I purchased the PDWM2135 to go with the PPHP28AMX. The mic connection is different. When I plug into channels 5 or 6 the sound is only to one speaker. Is there a splitter available to split the mic receiver to both channels 5 & 6? Or is there a cable that has a 1/4" cable connection on one end to the mic receiver and an XLR connector on the other end to plug into the mic plug on the PPHP28AMX?

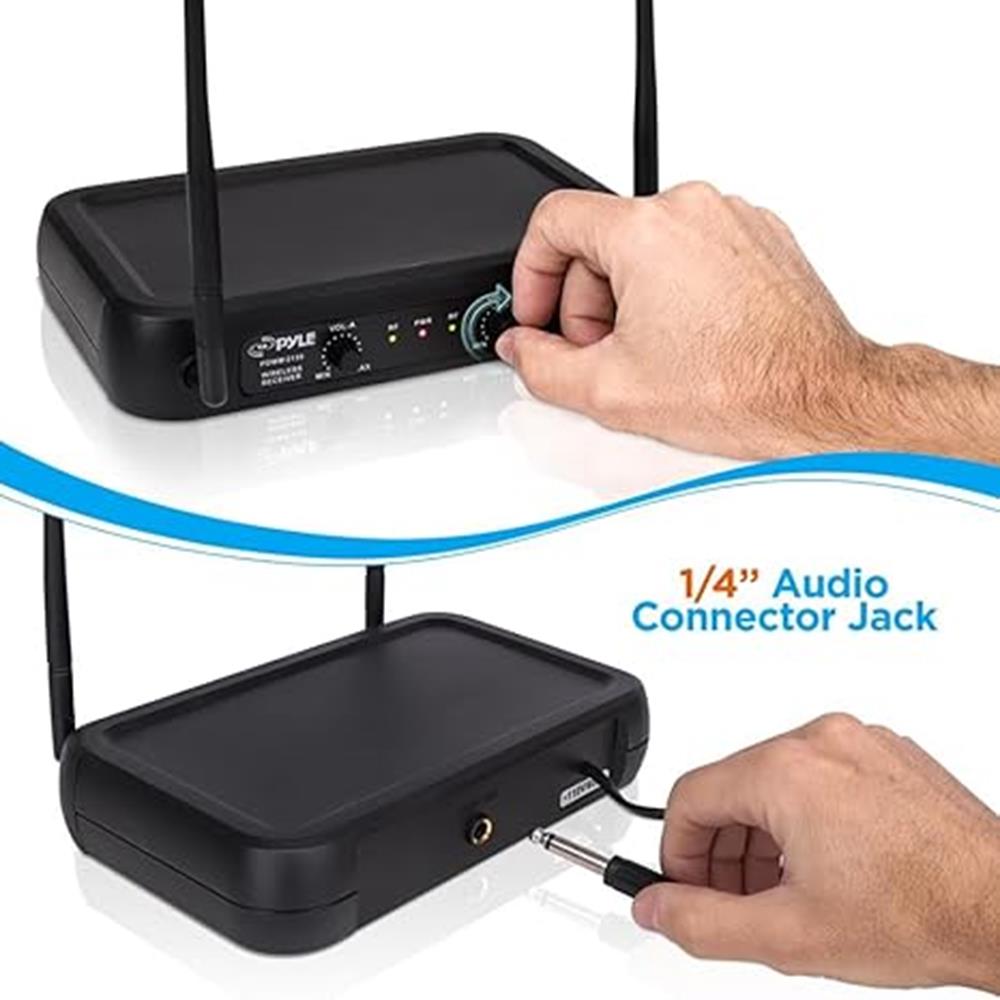

Use a 1/4" to male XLR cable, such as this one available on Amazon.
-
Is it possible to use a third microphone with the pdwm2135 system?
NO
-
I purchased the PDW m2135 and when I turn on the mics the corresponding RF red indicator comes on but whatever I do I can't seem to get any output. The volume is turned all the way up on both mics. I've tried hooking up to an amp, speaker and headphones and can't get any output out of the pdwm 2135.

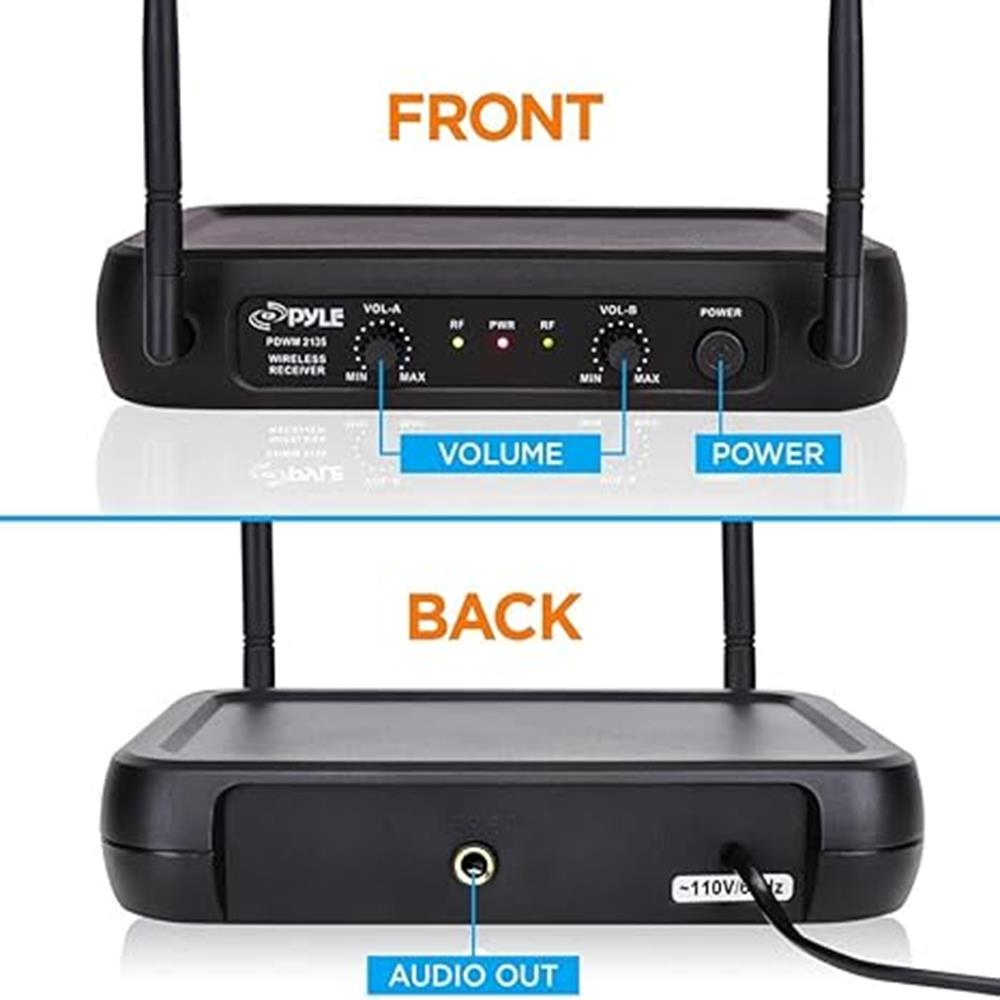

Have you got the output jack at the back of the unit connected to a mic input jack of a speaker or amplifier? Use 1/4" to 1/4" cable
-
Is the PDM2135 with hand mics the same as the PDM2145 with beltpack mics? Are the mics interchangeable, assuming the same frequency?
We have no telling if the frequency will match
-
do you have replacement mics for this sytem available? frequency 175.50
Please contact us through our email support system to assist you further with your concern. Simply go to pyleusa.com, click on the CONNECT tab, and then in the drop-down menu, choose Contact Us. Fill out the form, and in the last part, you will have the option to write your subject, and in the comment box, you can also write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800, ext. 2, during the weekdays from 9 am to 6 pm EST.
-
I PURCHASED THIS PRODUCT AND I AM HAVING PROBLEMS GETTING THE MICROPHONES TO HAVE VOLUME. MAYBE SOMEONE CAN ASSIST ME WITH MY UNIT
Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
