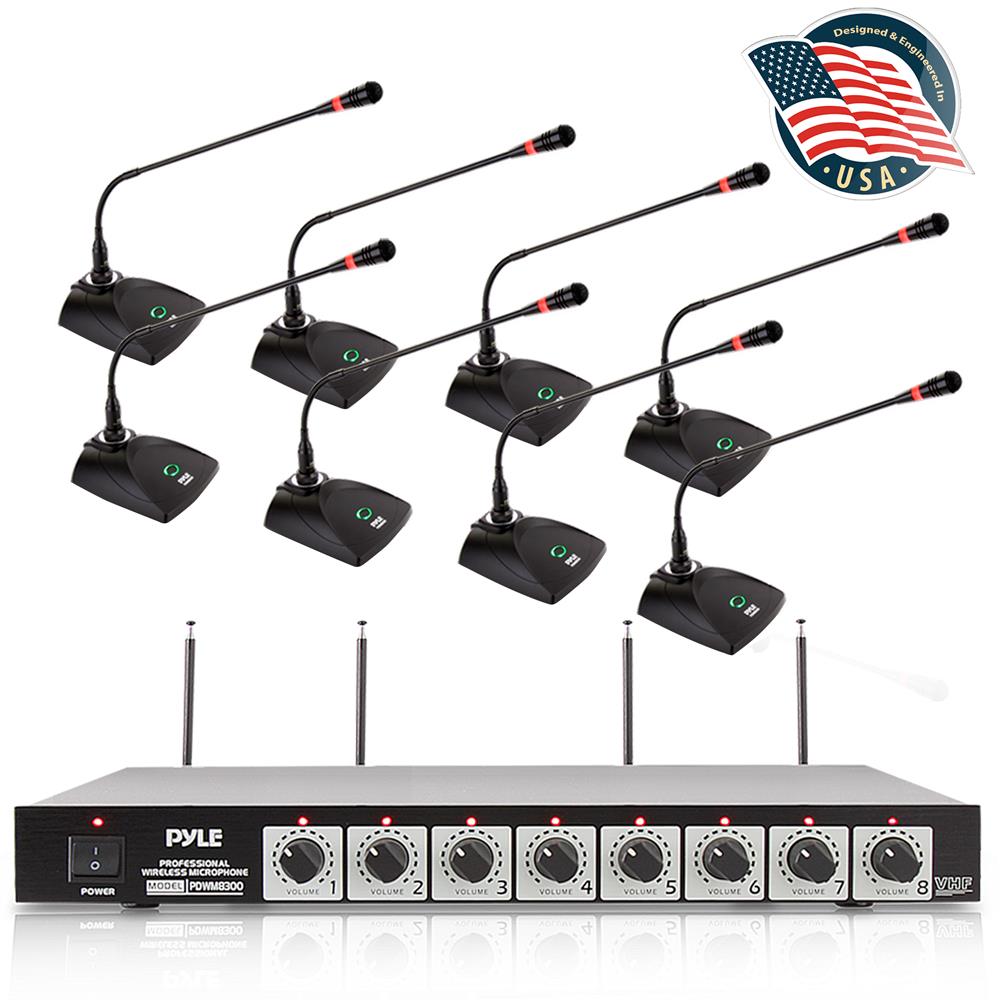

8-Channel Wireless Mic System - Extended Range, Condenser Mics, Rack Mount

8-Channel Wireless Mic System - Extended Range, Condenser Mics, Rack Mount

Reg $375.99 Sale (20% off) SAVE XXX
Sale price $375.99 Reg
Sale (%) Sold out
Tags: Microphone and Accessories, Microphone Systems
  • 1 Year Warranty
  • 30-Day Returns
  • Free Shipping in Canada

View full details

About this item

DETAILS

Features:

  • VHF Professional Conference Microphone System
  • Desktop, Tabletop Office Microphone Style
  • Includes (8) Tabletop Goosenecks Mics
  • Multi-Channel Fixed Frequency Design
  • Low Distortion Condenser Mics
  • Extended Wireless Operating Range
  • Front Panel Receiver Control Central
  • Independent Channel Volume Setting
  • Microphone Broadcasting Switch

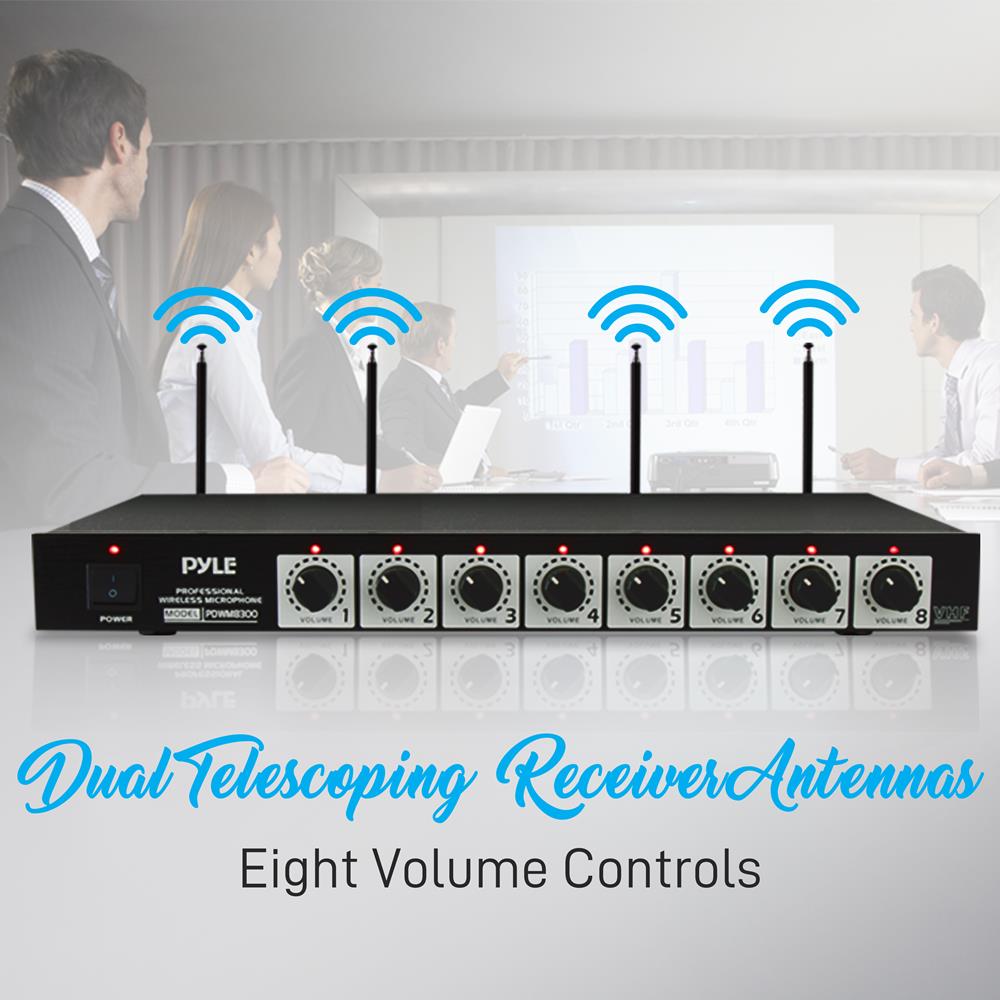

  • Telescoping Receiver Antennas
  • 1/4’’ -inch (6.5mm) Mixed Output Jack
  • XLR (3-Pin) Balanced Connector
  • Microphone LED Indicator Lights
  • Power ON / OFF Switch
  • Rack-Mountable Mic Receiver
  • Used for Office, Store, School & Business Audio Applications

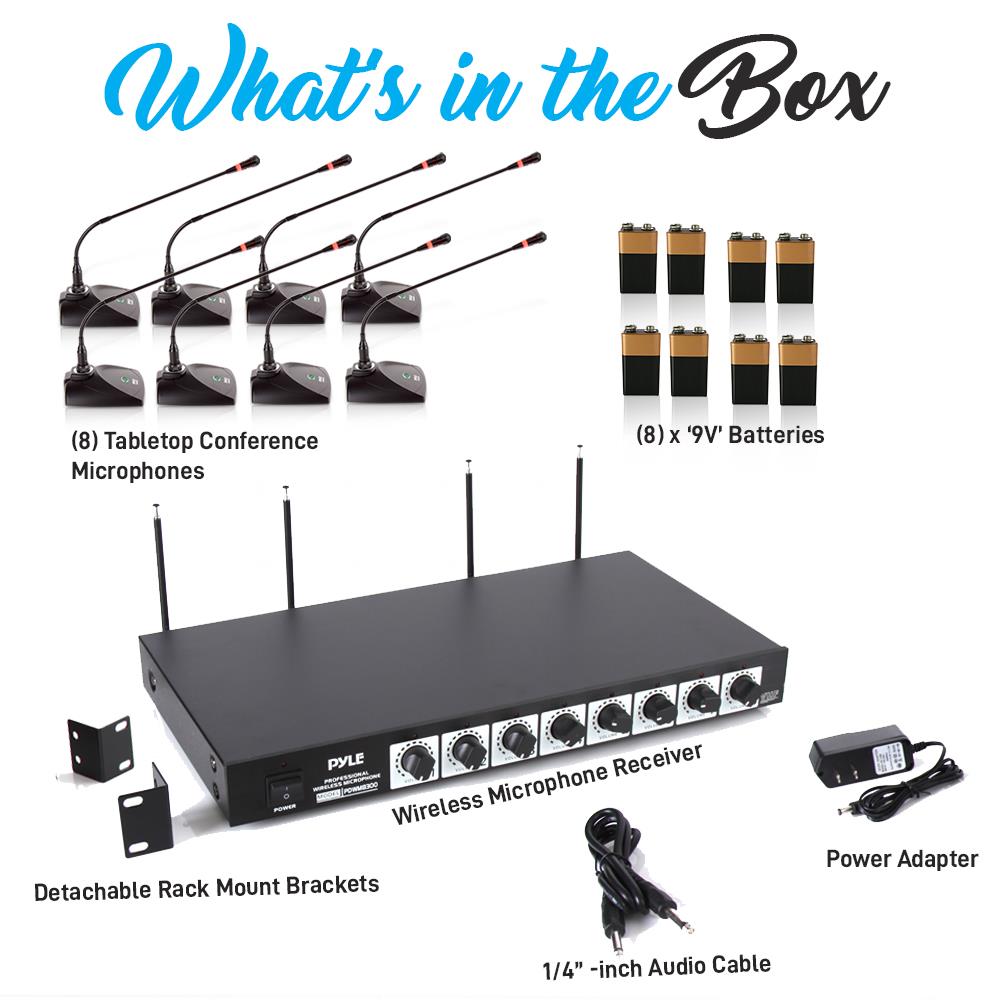

What’s In The Box:

  • Wireless Microphone Receiver
  • (8) Tabletop Conference Microphones
  • (8) x ‘9V’ Batteries
  • Detachable Rack Mount Brackets
  • 1/4’’ -inch Audio Cable
  • Power Adapter

Technical Specs:

  • Audio Transmission: VHF (Very High Frequency) Band
  • Microphone System Type: Desktop Conference Mics
  • Wireless Operation Range: Up to 100+ Meters
  • Mic Receiver Type: 8-Channel
  • Microphone Polarity: Uni-Directional
  • Microphone Type: Condenser
  • T.H.D.: 3.0%
  • Dynamic Range: 92dB
  • Signal to Noise Ratio: 90dB
  • Battery Operated Mics: Require (1) x 9V Battery, Each (Included)
  • Power Supply: 120/240V (13.5V Power Adapter)
  • Conference Mic Size (L x W x H): 4.9’’ x 5.9’’ x 12.7'’ -inches (Each)
  • Receiver Dimensions (L x W x H): 18.9’’ x 8.7’’ x 1.8’’-inches (with Rack Mount)
  • Receiver Dimensions (L x W x H): 16.5’’ x 8.7’’ x 1.8’’ -inches (without Rack Mount)
What's In The Box
  • Receiver Base
  • (8) Conference Microphones
  • MANUALS & DOWNLOADS
    Questions & Answers

    QUESTIONS & ANSWERS

    Ask a Question
    • Is there a compatible hand microphone that can be used with this system? (Replacing one of the goose necks)

      The gooseneck microphone is currently not available.

    • Do you have QTY 12 in stock to ship today? What would be our Reseller Discount for QTY 12? Thanks! Cathi Expresspoint / TKO Electronics

      You can contact directly Allen@pyleusa.com for bulk orders and whole sales

    • What receiver would work with this microphone system? We need to connect speakers and run it through computer for videoconferencing as well.

      P3201BT

    • What speaker(s) could I use with this system. Do you sell such speakers? Thank you.

      PPHP28AMX

    • Can we extend the antennas? What type of connector are the antennas?

      BNC

      https://www.amazon.com/onlineservice-usa-Telescopic-Antennas-Connectors-Portable/dp/B00SDLA206/ref=sr_1_38?keywords=bnc+antenna&qid=1642605543&sprefix=BNC+anten%2Caps%2C463&sr=8-38

    • We bought this on amazon and do not seem to be able to make it work. Is there a driver or other software that needs to be loaded to make this work? We use a DELL latittude 7480 Thank you in advance for your help

      you will need an audio interface

    • Can i just order one of the wireless microphones? I already own the system, but need one replacement microphone.

      The microphones are not yet available

    • When will this be back in stock?

      There is still no ETA on the unit. But we can see that this ha been ordered already

    • hi i would like to procure 6 units of PDWM8300

      This unit is currently out of stock

    • PDWM8300 spec sheets states 0.35v P-P output. I'm more familiar with 1.5v P-P line audio for home stereos, etc. QUES: Will this 0.35v output drive a typical audio input (e.g. RCA jack) on a retail home audio amplifier? Or, do I need an additional pre-amp to increase the signal strength? Thanks!

      you will need to use a mic mixer for this unit

    • How can I buy PDWM8300 8 channel products, does Indonesia have distributors in my country?

      You can try to get them through Amazon or eBay but make sure of the category as NEW UNIT

    • I will need to have at least 12 microphones. If I purchase two of these sets, will they work next to each other without interference? I understand each set will operate independent of each other. Just wondering if they can coexist? Thanks, David

      We would not recommend using two of these as it may cause interference to each other

    • Is there an on/off button for each individual microphone?

      Yes there is

    • Howdy, I think I've lost my power supply for the PDWM8300 base station. Can I buy one from ya?

      You can get this from Amazon

      https://www.amazon.com/UpBright-Global-Adapter-Samsung-DVD-L70/dp/B00ISFD146/ref=sr_1_19?crid=3E64JVSL86LW6&dib=eyJ2IjoiMSJ9.ogIjtbuk9w3Nu2LZoslHCHMdjhlOmYHmEfbNJWurkqA5FHCpnLu-Lct2GcF8dpnMfeWgNnYLtLneEucQRo2-hnCzx4uOwv6hUVwwvCzkXd6NffZ1xJ8Ub4hntqlvArWKmbRbfcfK9ZaLOgAoBojdFL1-M6k95XIfpre1YSSpbm18jQCwgn-5um863nulgdGTP__Fz63dGmN4bNHPojmWOR0kkP8KjGU2h04PgOi8z2Q.pocv266VblOluUNboi9F3fC7LjWvcKDLWEmmf-LOl2g&dib_tag=se&keywords=13.5v+2amp+power+supply&qid=1731459248&sprefix=13.5V+%2Caps%2C346&sr=8-19



    • This system works great for the price but is there a way to for the microphones to be more sensitive? You really have to come close to the mic for it to work. Thanks

      It is only by pulling up the mic volume

    • are replacement microphones back in stock? april 2024

      the replacement microphones are still out of stock

    • If we purchase 3 pdwm8300 to have a 24 mic capability, would there be any interference.

      Yes there will be a possible interference if you purchase more than one as the unit is a fix frequency. If the frequency clashes there is no option to move the frequencies apart.

    • Where can I order replacement power adapters?

      Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

    • Hell Is there a way to control the receiver for PDWM8300 via mobile or tablet

      No. The unit is not Bluetooth compatible.

    • I need to change the frequency on the Microphones.? How do I do it. the Microphones keep cutting out.

      There is no option to change the frequency of the microphone.

    • We ordered a Pyle PDWM8300 wireless receiver/8 microphone set from Amazon. 7 of the 8 microphones worked great, but one which connects to channel 2 was having connectivity issues. It would connect for a bit, and then would go out, you would see the red indicator light on the wireless receiver go out. I tried again with a different transmitter from a different receiver and got it to connect to channel 2, but it seemed to experience the same issue. Would this most likely be a faulty mic, receiver, or is there something problematic with that frequency range?

      Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

    • Can I order replacement microphones

      Microphones for this model are currently not available

    • The system works great, however, mic #5 is not connecting to the receiver. How can I get it replaceed?

      We currently do not have a replacement transmitter available at this time
