Network Cable Tester

The PHCT205 Network Cable Tester is a powerful tool for testing everything from Network/Telephone to BNC and other cabling. Test installed cabling for short circuits, open circuits, continuity, or mismatched wiring. Save time and money by knowing you got it right the first time. The pre-recorded voice alerts you to which mode you are in, whether or not you have an open or short circuit, as well as which number wire these errors are occurring on. The PHCT205 makes it possible to test any number of cables all by yourself and with the internal microprocessor watchdog software, you'll know the results are reliable.

• Test Both Shielded (FTP) And Unshielded (UTP) Cables Via RJ45 Port - For Portable Use W/ Long Battery Life (Up To 50 Hours) - Tester Ports: Main RJ45 Master port (M), Loop-Back RJ45 Port (L), And Far-End Port
• Test RJ11, Telephone lines (TEL) And Coaxial Cable (BNC) Via Included Special Adaptors - Locate Up To 8 Far-End Passive Ports - Included: RJ45 To BNC, RJ45 To Alligator Clip Adaptors For Measuring & Checking Continuity Of Coaxial & Telephone Cabling
• Detect Open Circuits, Short-Circuits, And Mismatched Wiring In Any Variety Of Cables - Single Chip Microprocessor Watchdog Software Ensures Reliable Operation - Working Ambient Temperature: -10° C ~ +40° C
• LCD Display Gives Clear Results While Showing How Each Wire Matches Up - Low Voltage Battery Alarm And Indicator - Requires 4 x AAA 1.5V Batteries (Included)
• Voice Feedback Keeps You Informed At All Times - Maximum Cable Length: UTP/FTP Twisted Cable < 300m, BNC Coaxial Cable < 500m, TEL Telephone Line < 300m - Dimensions: 4.87'' x 2.62'' x 0.96''

Test Both Shielded (FTP) And Unshielded (UTP) Cables Via RJ45 Port

Test RJ11, Telephone lines (TEL) And Coaxial Cable (BNC) Via Included Special Adaptors

Detect Open Circuits, Short-Circuits, And Mismatched Wiring In Any Variety Of Cables

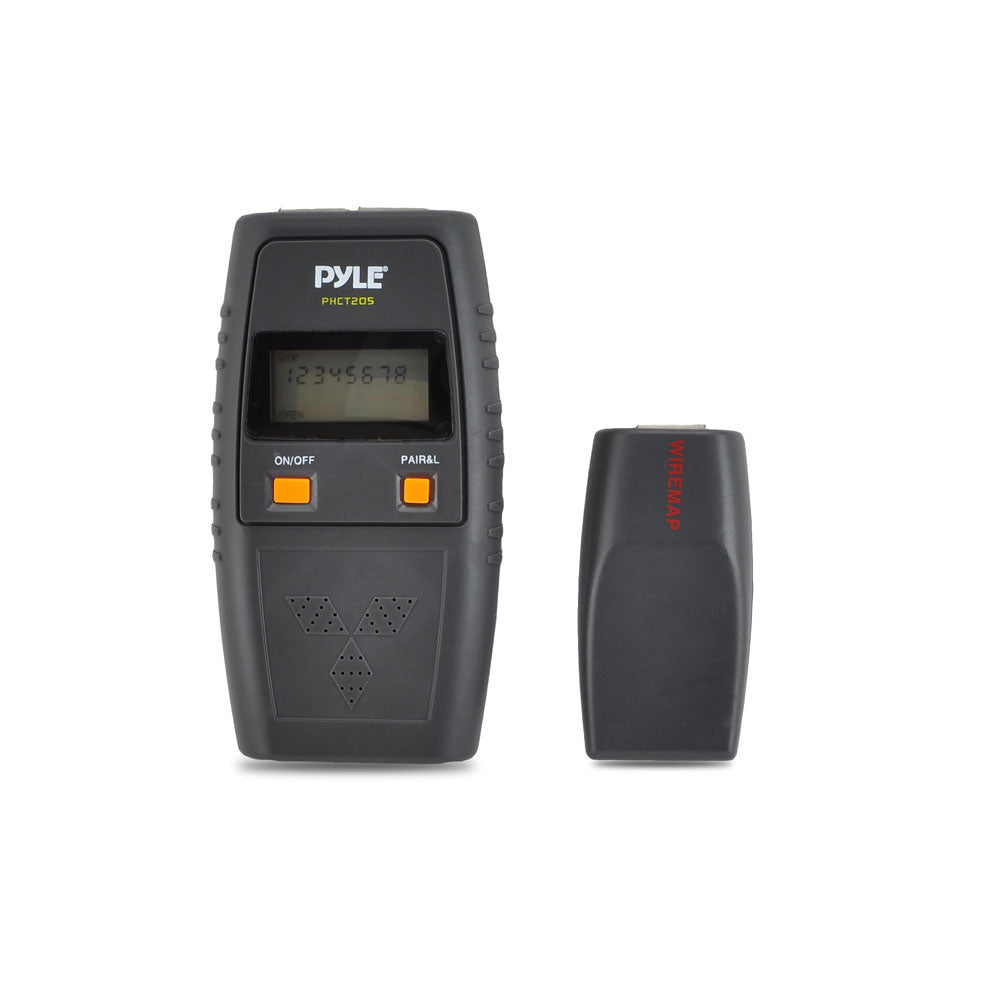

LCD Display Gives Clear Results While Showing How Each Wire Matches Up

Voice Feedback Keeps You Informed At All Times

For Portable Use W/ Long Battery Life (Up To 50 Hours)

Locate Up To 8 Far-End Passive Ports

Single Chip Microprocessor Watchdog Software Ensures Reliable Operation

Low Voltage Battery Alarm And Indicator

Maximum Cable Length: UTP/FTP Twisted Cable < 300m, BNC Coaxial Cable < 500m, TEL Telephone Line < 300m

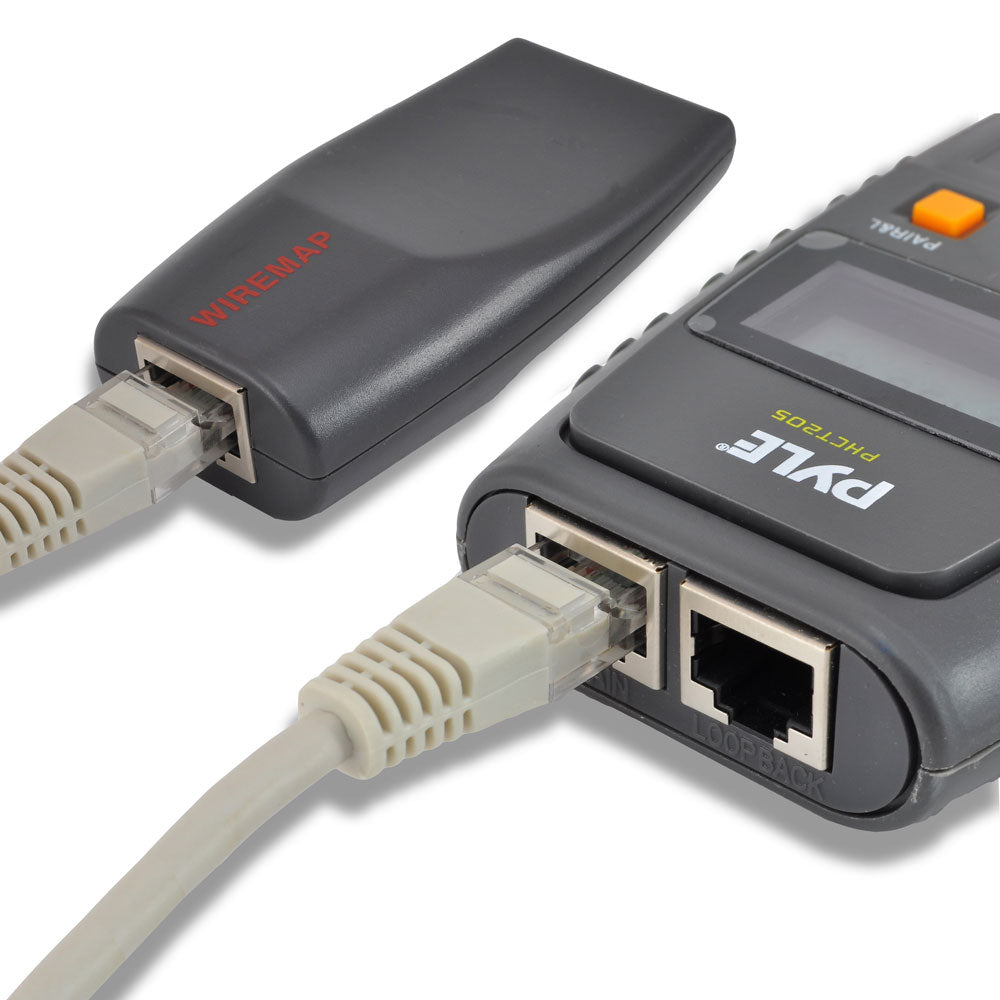

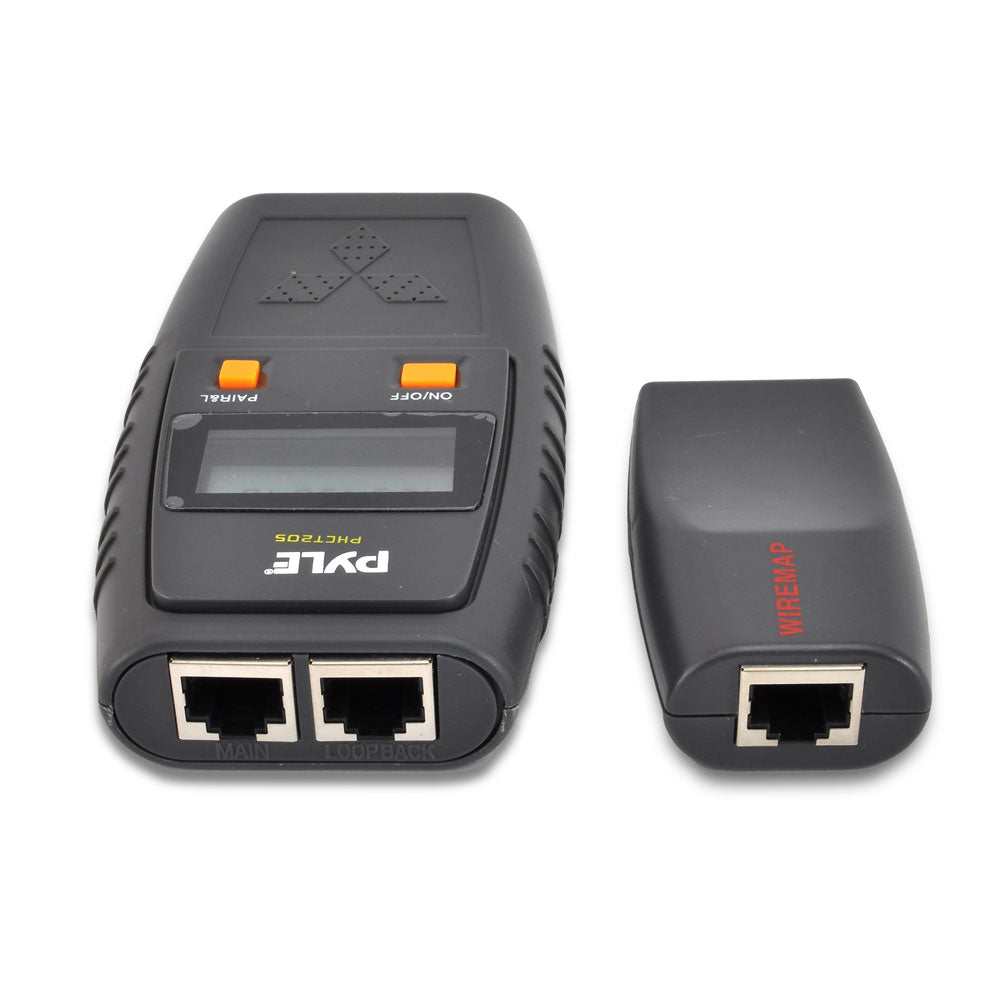

Tester Ports: Main RJ45 Master port (M), Loop-Back RJ45 Port (L), And Far-End Port

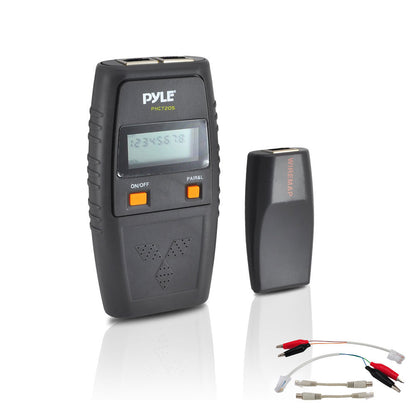

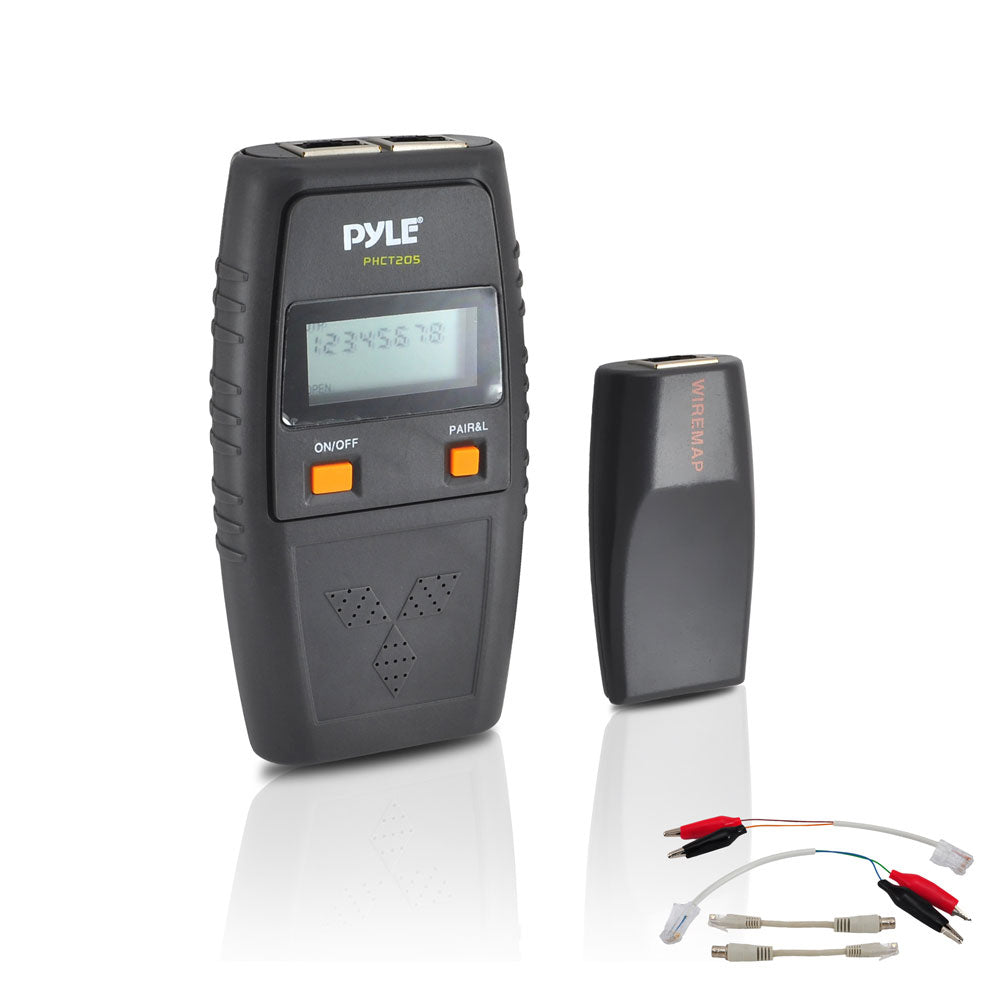

Included: RJ45 To BNC, RJ45 To Alligator Clip Adaptors For Measuring & Checking Continuity Of Coaxial & Telephone Cabling

Working Ambient Temperature: -10° C ~ +40° C

Requires 4 x AAA 1.5V Batteries (Included)

Dimensions: 4.87'' x 2.62'' x 0.96''
