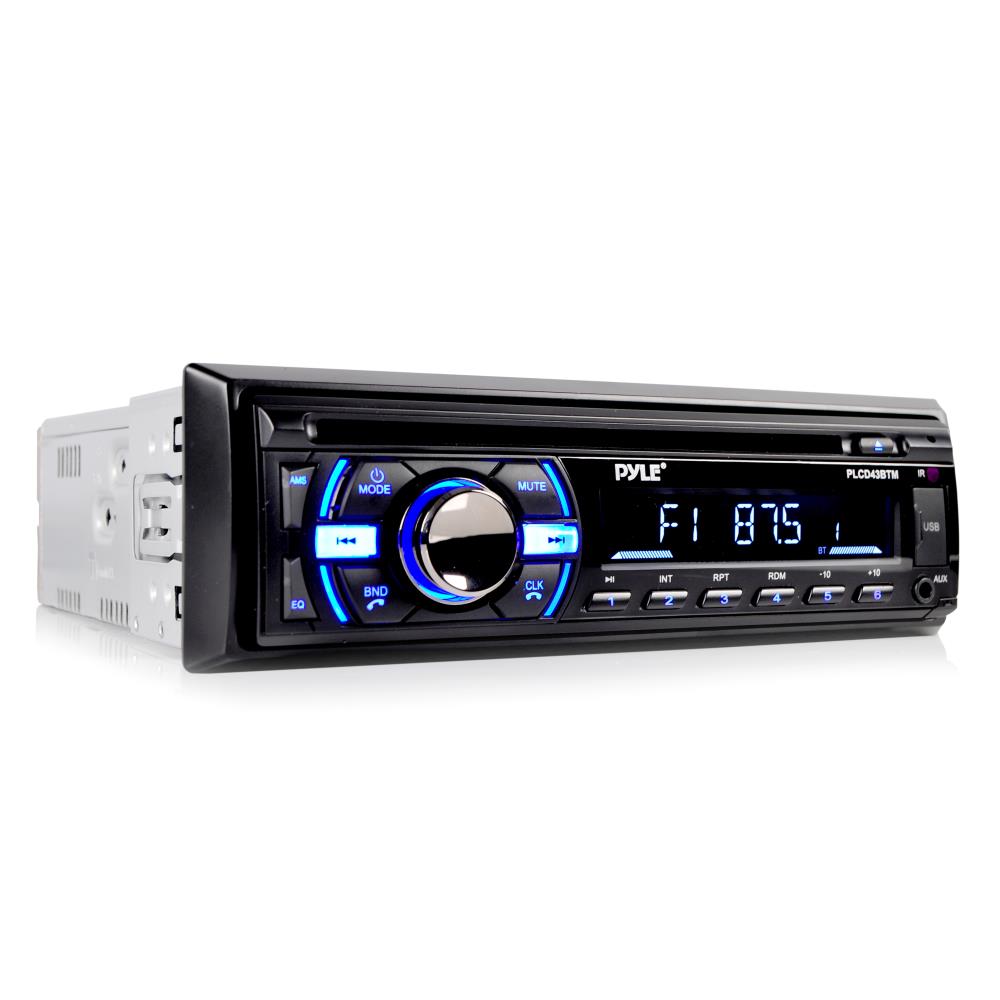

Marine Stereo Receiver Bluetooth Hands-Free CD Player Single DIN

How many watts does this receiver have?

75 Watt x 4

When will it be in stock? Plcd43btm

Order is already in the process no exact date of replenishment

gauge wire in harness is very flimsy. is there another upgraded wiring harness for my boat?

it is the only harness and there are no upgrades

The PLCD43BTM is nice looking, has all the functions desired and appears to be well made. I installed in my boat, yesterday. I have tested the wired in module plug-in and know I show 12 VDC on the yellow wire and black wire! However, I cannot seem to get the unit to turn on, light up? I press the MOD button, I hold the MOD button, and then press the MOD button. I also try the remote on button (plastic battery protector pulled) but nothing lights up, no actions or no sound. Please advise.

Connect the RED Wire to ACC +12volts

Yellow Wire to constant +12volts
Black to Ground

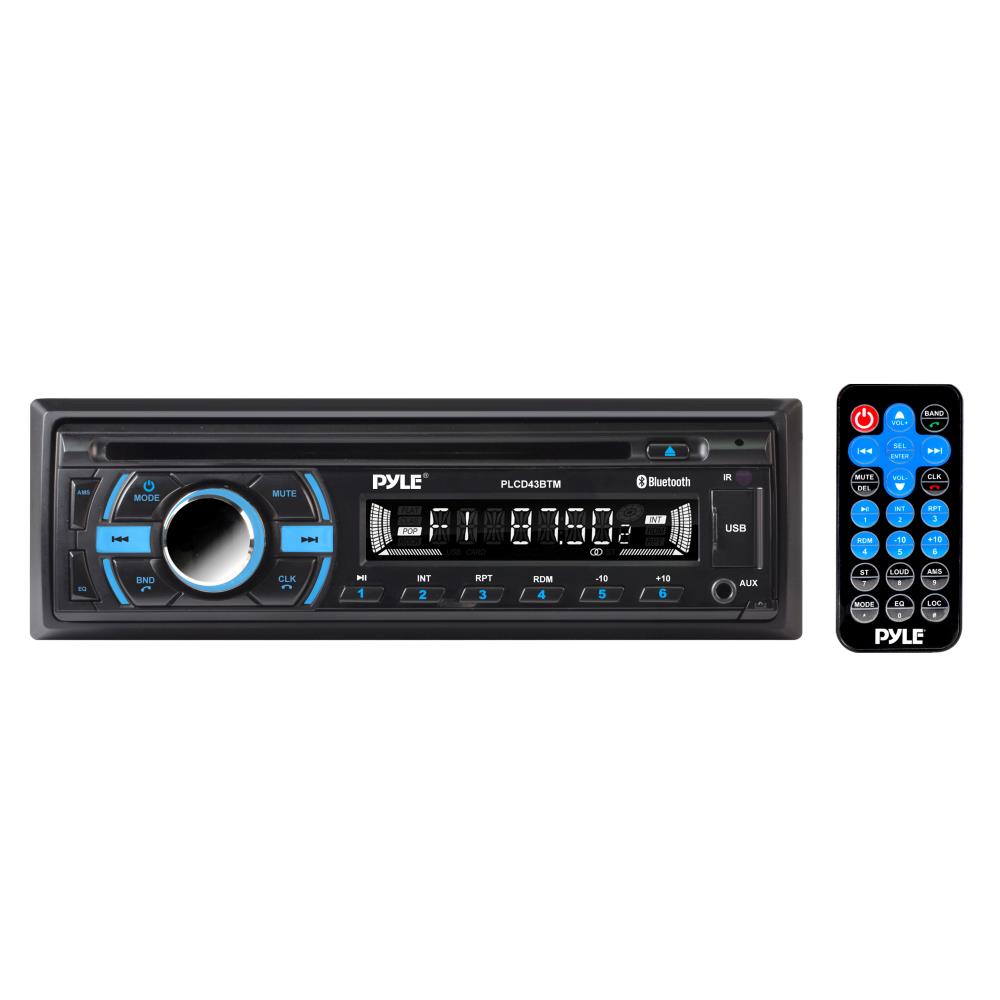

Can I purchase just a remote. I lost mine.

Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

For Parts Request Please Complete the information below:

Full Name:
Email Address:
Contact Number:
Model Number:
Shipping address:
Requesting Part:

Hook up the new radio and it works great except the CD player is not working?? We put a cd in and it started to play and then stopped. We tried another one and nothing. We hear it spinning but no sound. Can you help us please?

Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

I am at a loss, I am not getting any audio, even though I have power and it is playing a CD. I have a set of PLMRF65SW speakers hooked up as passive but there is NO audio. I have tried 2 other sets of speakers with the same result. I am not sure what is up as this is the first time I have had this type of issue. Please hekp. Volume is up, no MUTE and the Balance and FAde are at 0

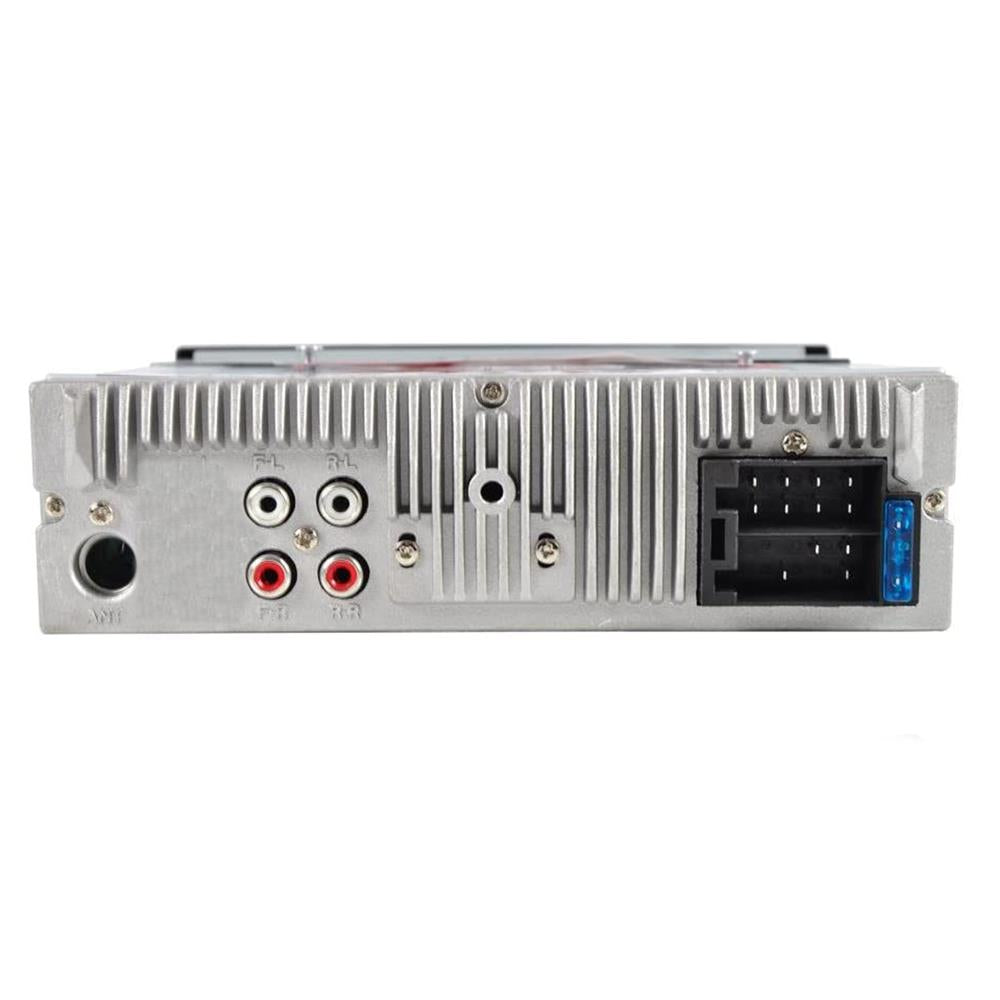

Just to make sure if the connections are right for the PLCD43BT

Please check the list:

Yellow Wire: +12 Volts continuous
Red Wire: +12 Volts Ignition Switch
Black Wire: Goes to Negative/Ground
Blue Wire: To Positive Antenna Motor

Purple/Purple Black: Rear Right Speaker
Green/Green Black: Rear Left Speaker
Gray/Gray Black: Front  Right Speaker
White/White-Black: Front  Left Speaker

Make sure that all wires are new. I hope this helps!

trying to hook up radio in boat. old radio was am fm cassette. trying to hook up just two speakers. four speaker system but only has four wires. no matter how i hookup the volume does not come back on when you turn it off and back on. colors dont match the new ones on the Pyle radio I got. the boat is a 1997 Starcraft. any ideas. thanks for your help.

If you are only connecting 2 speakers. you can use the
Left Channel
Purple (+)
Purple Black (-)
Right Channel
Green (+)
Green Black (-)
For power
Yellow goes to a constant 12 volts
Red goes to accesory switched 12 volts
Black wire goes to Ground / Negative

where are the two screws that need to be removed to release the CD player? I can't find it on the radio.

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

Hello I can not get my new Pyle PLCD43BTM to work and was wondering if you could send me another installation manual to see if i made a mistake on the installation or if it is a non working unit? Thank You, Allen

Please see the link provided.

http://manuals.pyleusa.com/PDF/PLCD43BTM_8fed4aa4-6ff8-471c-95e8-a2947ba2105e.pdf
