Backup Camera System, Safer Parking, Night Vision, Waterproof, 7" LCD Display
Backup Camera System, Safer Parking, Night Vision, Waterproof, 7" LCD Display
3 Year Warranty
30-Day Returns
Free Shipping in U.S.
Couldn't load pickup availability
About this item
Product Highlights
DETAILS
Kit Features:

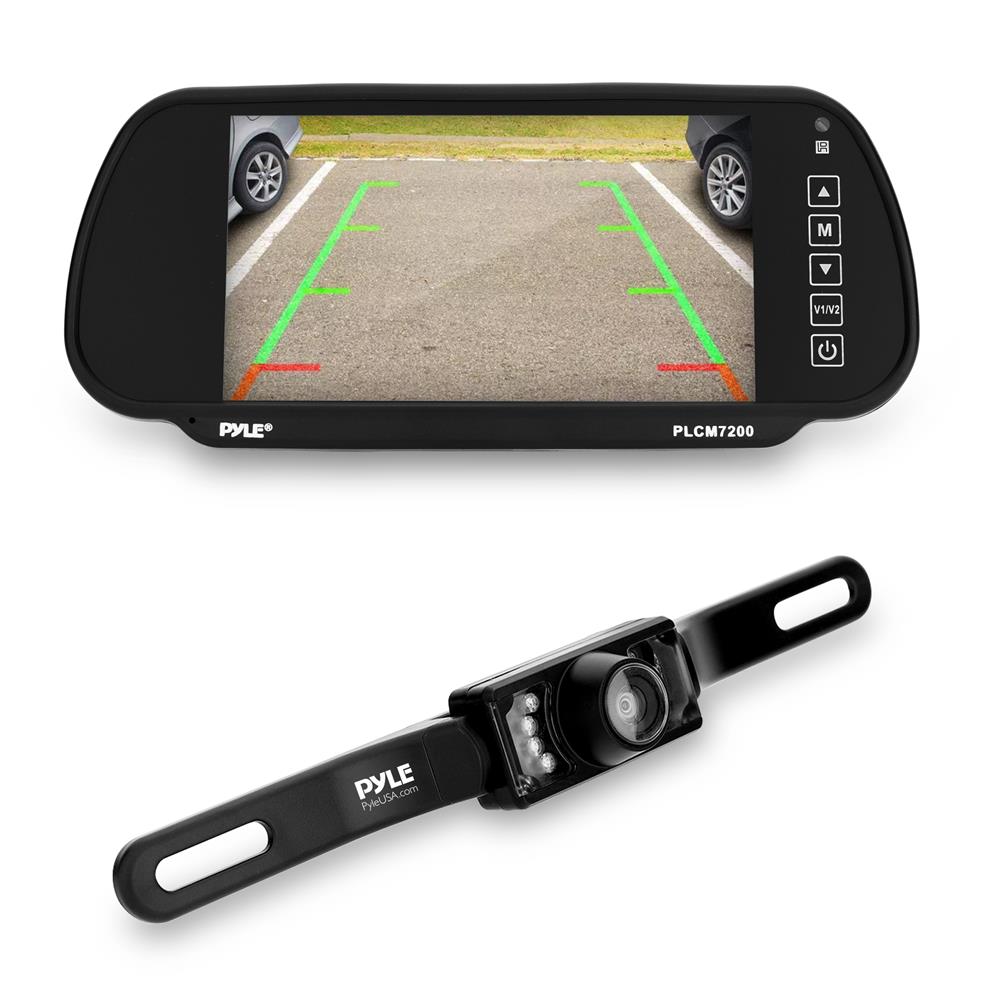

- Backup Camera & Monitor System
- Visual Parking Assist for Safer Driving
- Includes All Necessary Cables & Wiring
Camera:
- Exterior License Plate Mount Cam
- Distance Scale Line Display
- Marine Grade Waterproof Construction, IP68
- Resolution: 380 TV Lines (x 60)

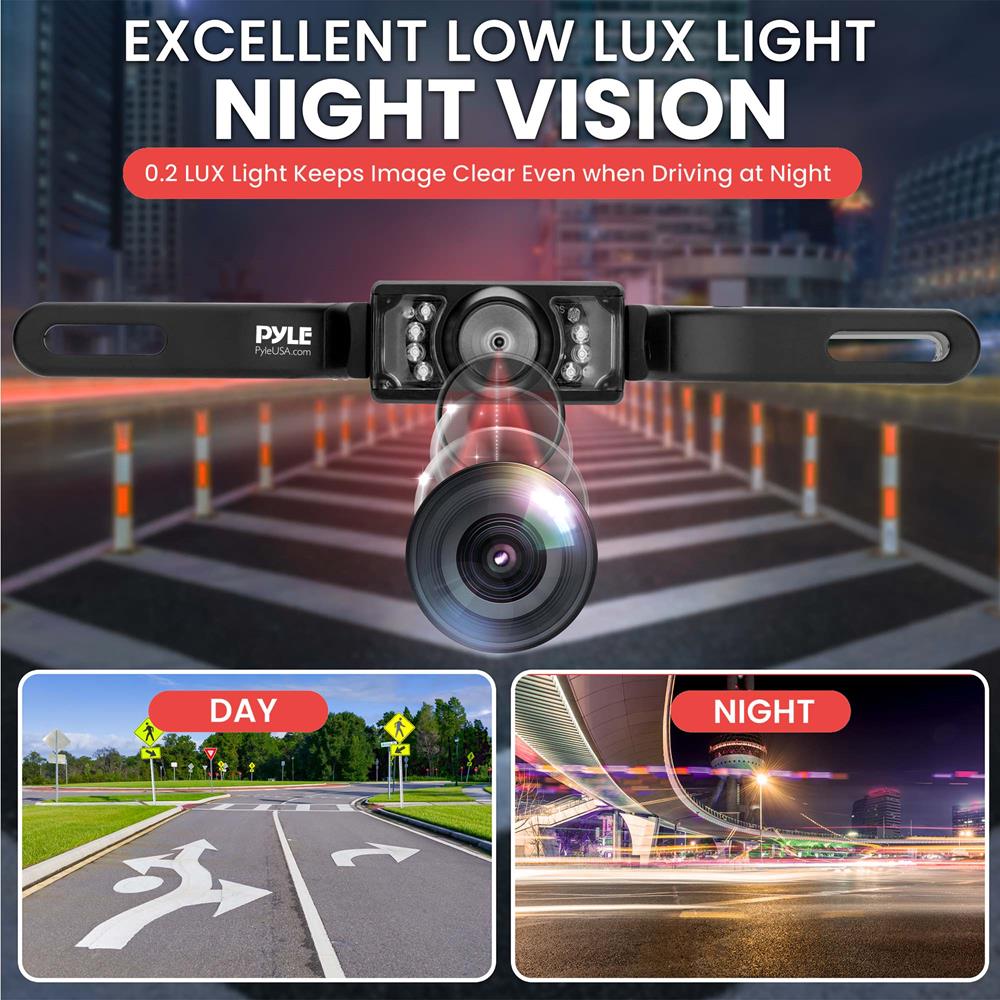

- Night Vision Performance
- Low Lux Light Illumination
- Extra Wide Viewing Angle
- Slim Style Compact Camera
- Swivel Angle Adjustable Cam
Monitor:
- Built-into Rearview Mirror Assembly
- Universal Size Clips onto Existing Mirrors

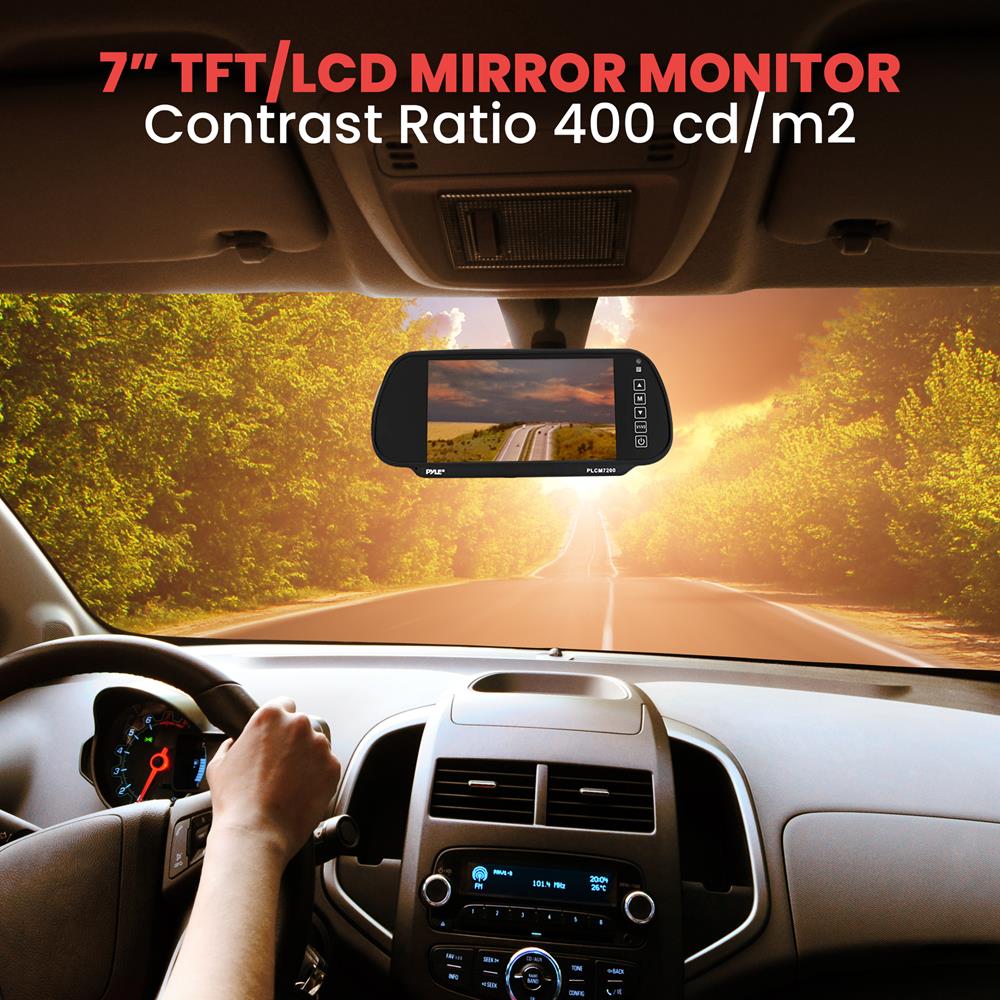

- 7'' TFT / LCD Mirror Monitor Screen Display
- 16:9 Wide Screen
- Resolution: 800 x 480 Pixels (RGB)
- Contrast Ratio: 400 CD/M2
- Anti Glare Coating
- Dual Video Inputs
- Ability to Connect Additional Video Source
- Power Consumption: 6W
- Auto Switch PAL/NTSC
Dimensions / Sizes:
- Screen (W x H): 5.9'' x 3.25''
- Mirror Assembly (L x W x H): 10.0'' x 1.5'' x 4.25''
- Camera Dimensions (L x W x H): 8.46'' W x 1.29''H x 1.37''D

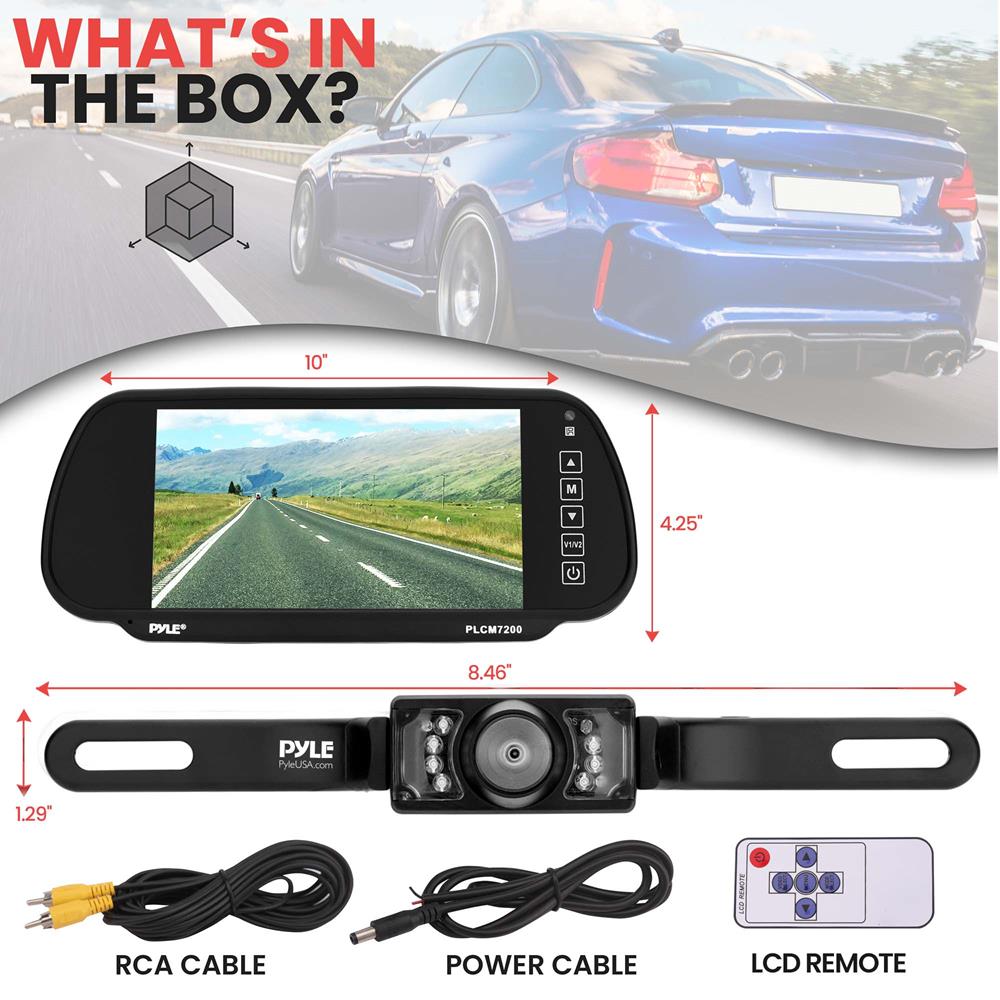

What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I just received my camera kit plcm 7200. Can you advise the proper camera orientation for viewing. No referance instructions or is there a means to flip the view on the mirror mon ? Thanks
You can try turning the camera upside down or You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
How long is the cable with the yellow RCA jacks that connect between the camera and monitor
15 feet
-
Hi, I asked a question about a month ago and haven't received an answer. I bought the PLCM7200 a while ago and recently installed it on my Honda S2000. I can't seem to get the monitor to work. Any hints as to what I can try? I have installed things on my cars before and am pretty good about hooking electrical things up. Thanks!

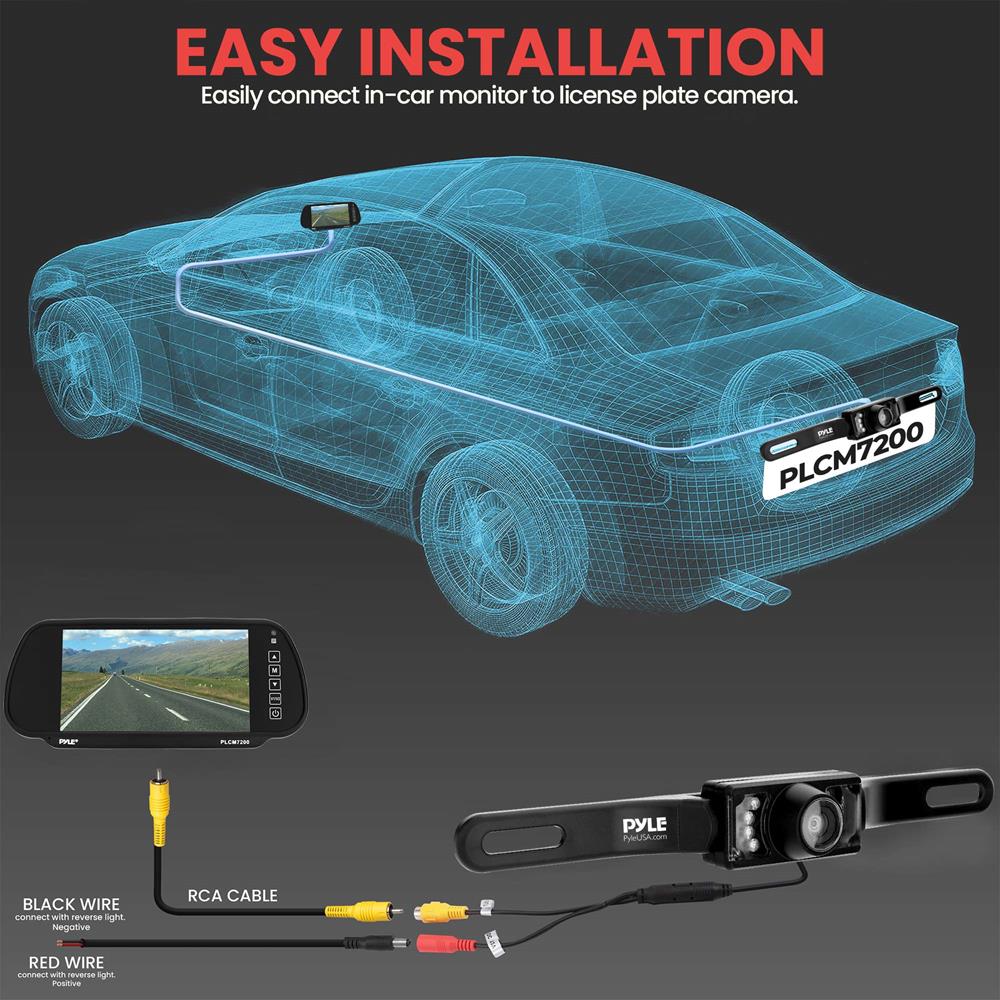

The PLCM7200 Works on any vehicle since it has simple electrical wiring on it. For power and reverse trigger, Tap the RED wire to the 12 volts on the Ignition switch and the GREEN wire to the reverse Trigger to turn on the video screen while on the reverse and the black wire goes to the Negative or Chassie Ground. The camera at the back needs to be powered as well so the power cable that comes along with it has a RED and BLACK Leads so simply Tap the RED lead to the reverse tail light and the BLACK to Chassie Ground. The remaining line will be for the VIDEO CABLE.
-
I have a Pyle plcm7200 rearview system with 2 backup cameras. 1 camera for rear traffic view the 2nd for trailer hitch view. The rear view camera seal has broken and now moisture obstructs view. Do you have a replace available and at what price
Try the PLCM18SC
-
I had this unit installed on my 2003 Chrysler PT Cruiser. It is great for backing up; however, the rearview mirror is always dark day and night and makes it hard to see. Can I make it like a normal rearview? I can't read anything that came with unit to tell me how.
https://www.youtube.com/watch?v=JZkmO23HiNs
-
I purchased the plcm7200 from a discount store and it is missing the 3 cables required to install the camera and monitor. Can those be ordered separately?
The main cable that attaches to the monitor s not available.
