Backup Camera System, Safer Parking, 7" LCD, Night Vision, Waterproof

Add an extra line of safety and become a better driver with this backup camera and monitor system with Bluetooth ability. The Pyle PLCM7400BT Driving Assistance Kit allows you to mount your camera and monitor exactly where you need it -- while gaining access to Bluetooth hands-free talking and wireless music streaming ability. The system works with all of your favorite Bluetooth-enabled devices and pairs easily. The small and durable waterproof camera mounts above your rear license plate and provides you with an extra set of eyes when on the road. Steer clear of bicyclists, watch out for pedestrians and skill your way into those tight parking spots like never before. The rearview mirror monitor attaches to your existing mirror assembly and features a built-in 7'' LCD display. It provides a crisp, color picture from your backup camera. It's also useful whenever you reverse or when visibility is limited. The system comes with all the necessary cables and wiring for installation. Drive safer and smarter with the Pyle PLCM7400BT Bluetooth Camera and Monitor Driving Assist System.

System Features:

• Backup Camera & Rearview Mirror Monitor System
• 7'' LCD Display Screen Built into Mirror
• Bluetooth Wireless Streaming Ability
• Visual Parking Assist for Safer Driving
• Reverse Signal Sense Priority
• (*Automatically Activates Once Car is Placed in Reverse)

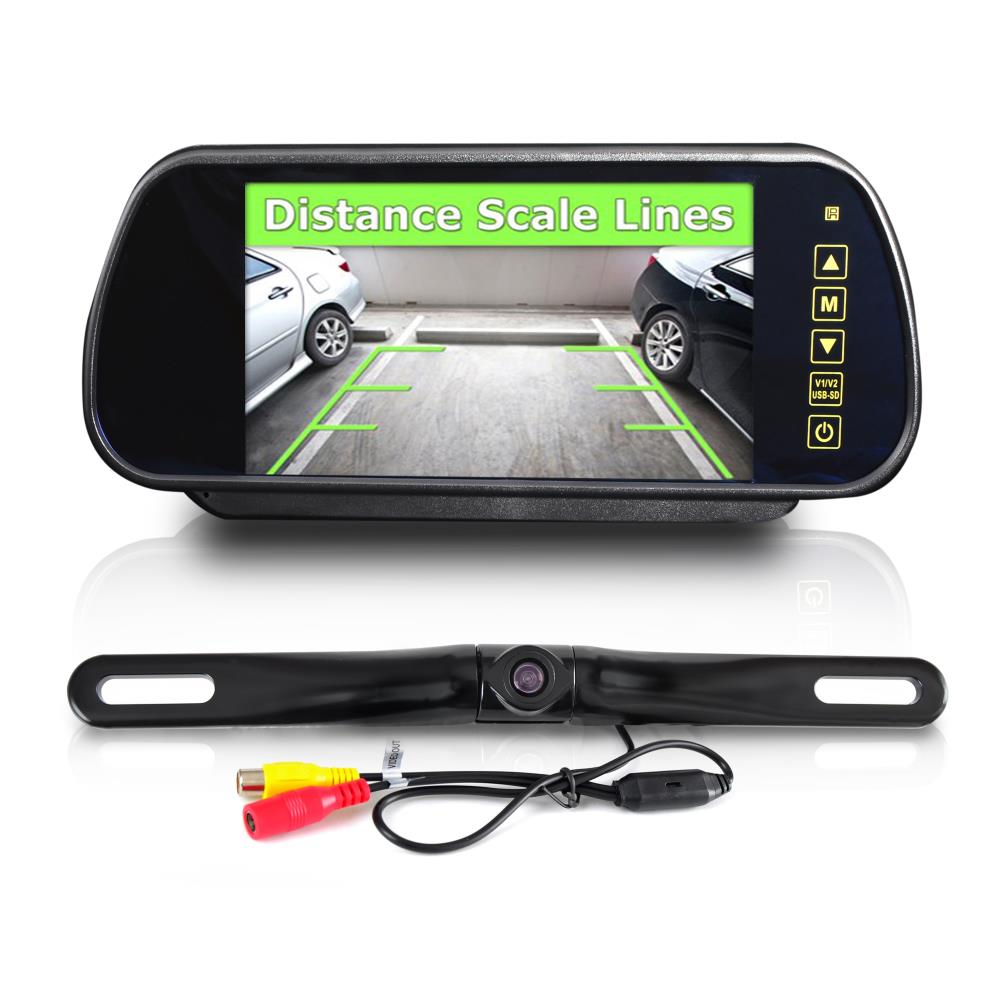

• Distance Scale Line Display
• Front Panel Touch Button Controls
• USB Flash & SD Memory Card Readers
• Digital Audio, Video & Image File Compatibility
• Dual RCA Video Input Connector Jacks
• Ability to Connect An Additional Video Source
• RCA (L/R) Audio Output Jacks

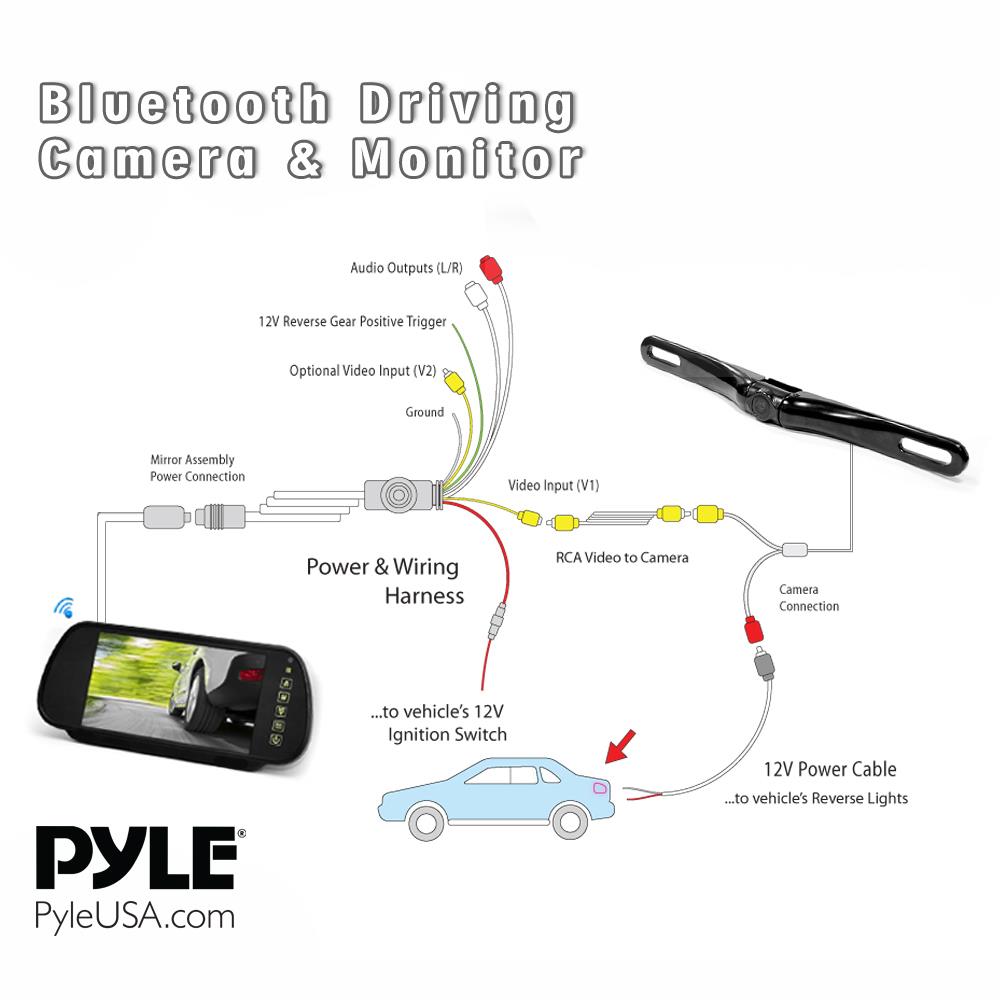

• Includes Remote & All Necessary Cables/Wiring

Bluetooth Connectivity:

• Hands-Free Talking & Music Streaming Ability
• Built-in Microphone and Speakers
• Easily Pairs to your Smartphone Device
• Works with iPhone, Android, Smartphones, Tablets, etc.
• Bluetooth Version: BT.2.0 +EDR
• Bluetooth Network Name: ‘CAR BT’
• Bluetooth Network Password: '0000'
• Wireless Range: Up to 30' ft.

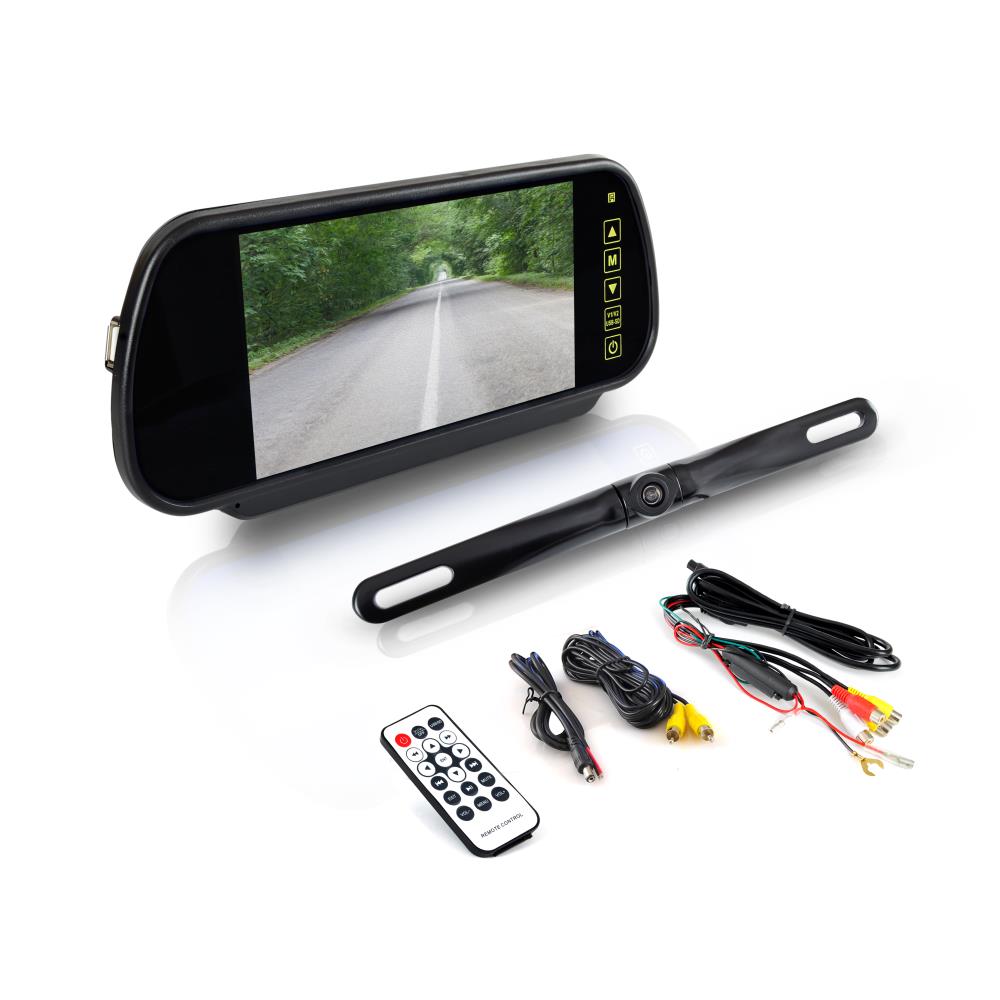

What’s in the Box:

• Video Mirror Monitor Assembly
• Backup Camera
• Power & Wiring Harness
• RCA Video Cable, 20’ ft.
• DC Power Cable, 3’ ft.
• Remote Control

Backup Camera:

• Waterproof & Fog Resistant Construction
• Marine Grade IP-67 Rating
• Night Vision Illumination, 0.2 LUX
• Built-in Distance Scale Lines
• Preferably Mounted Above the Rear License Plate
• Tilt Adjustable Camera Lens Angle
• 420 TVL Horizontal Resolution
• True Color Reproduction
• Total Pixels: 656 x 492
• Resolution: 420 TV Lines
• Viewing Angle: 170 Degree
• Auto White Balance
• Video Output: 1.0V PP-75 Ohm
• Power Supply: DC 12V
• Camera Size (L x W x H): 10.0'' x 1.2'' x 1.3'' -inches

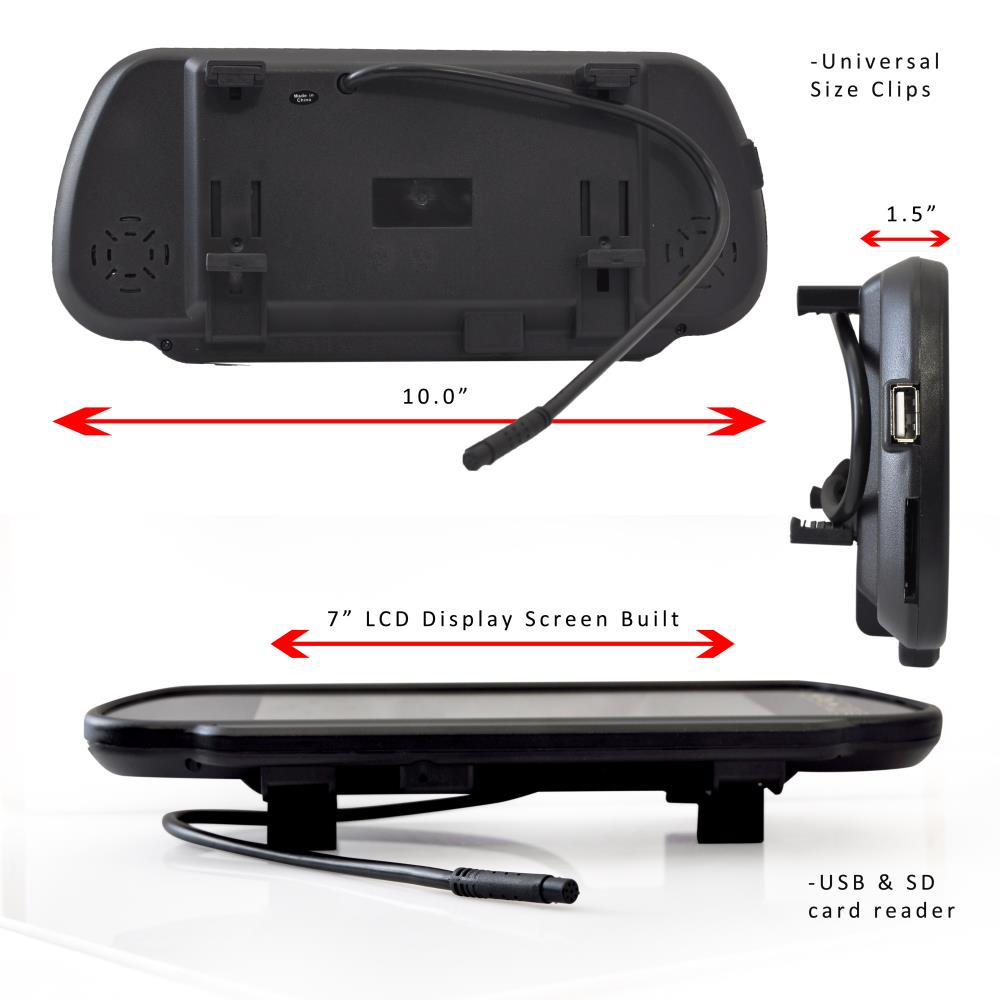

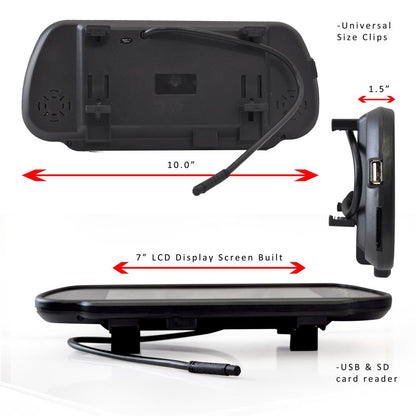

Mirror Monitor:

• 7'' LCD Display Screen
• Monitor Built-into Rearview Mirror Assembly
• Universal Size Clips onto Existing Mirrors
• Display Ratio 16:9/4:3, Wide Screen
• Resolution: 480 x 234, RGB
• FM Transmitter
• Auto Switch PAL/NTSC
• Anti-Glare Coating
• Contrast: 400 cd/m2
• Maximum USB/SD Support: 32GB
• Digital File Playback Support: MP3/MP4/MP5 (Audio) - AVI/MOV (Video)
• Battery Operated Remote Control: Requires (1) x CR-2032, Included
• Power Supply: DC 12V (Consumption: 7W)
• Mirror Assembly Size: (L x W x H): 10.0'' x 1.5'' x 4.2'' -inches

Video Mirror Monitor Assembly

Backup Camera

Power & Wiring Harness

RCA Video Cable, 20’ ft.

DC Power Cable, 3’ ft.

Remote Control
