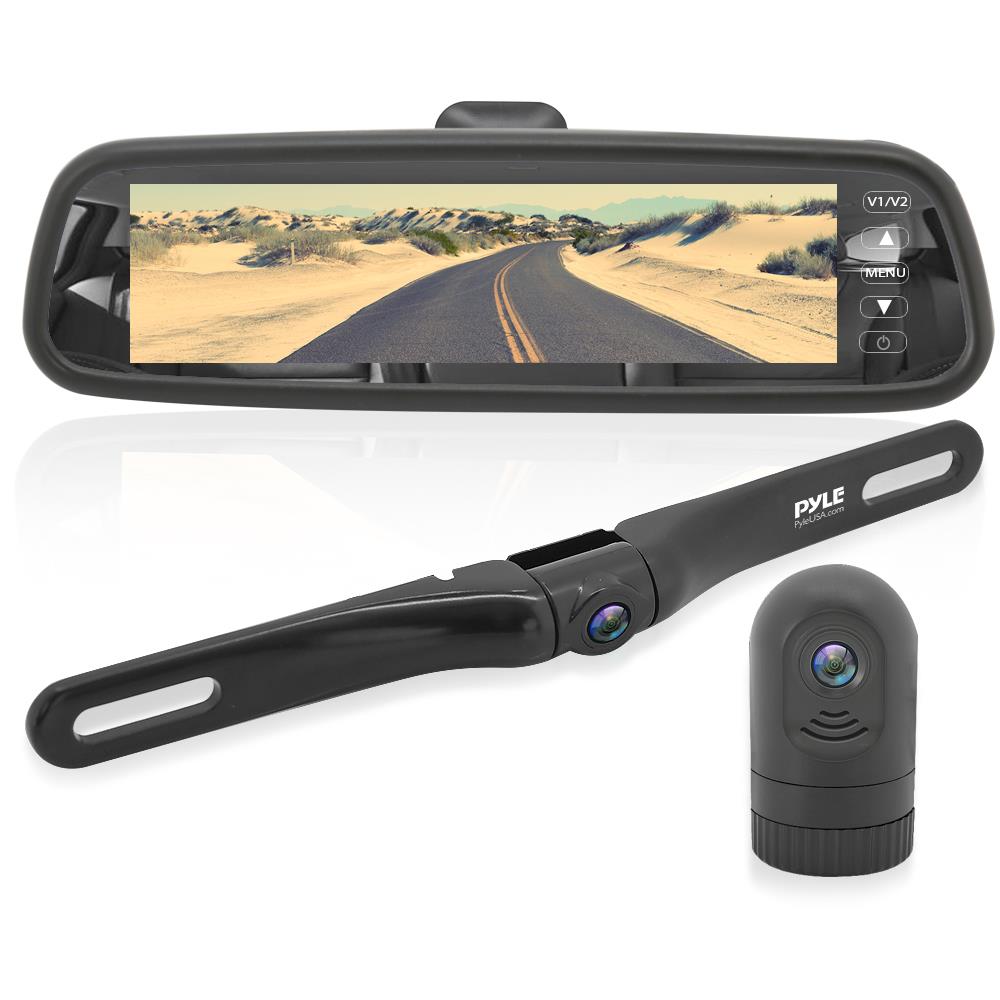

Dash Cam with Night Vision, 7.4" LCD, Waterproof, G-Sensor, Backup Camera

Dash Cam with Night Vision, 7.4" LCD, Waterproof, G-Sensor, Backup Camera

Reg $247.99 Sale (20% off) SAVE XXX
Sale price $247.99 Reg
Sale (%) Sold out
Tags: Rearview Backup Cameras - Dash Cams
  • 3 Year Warranty
  • 30-Day Returns
  • Free Shipping in U.S.

View full details
Dash Cam with Night Vision, 7.4" LCD, Waterproof, G-Sensor, Backup Camera has a rating of 4.4 stars based on 9 reviews.

About this item

Product Highlights
Description The Pyle PLCMDVR77 rear view backup parking assist camera adds night vision and low light capability when on the road. The camera outputs a clear, colorful picture along with distance scale lines to help you drive safer and to get into those tight parking spots. System includes all the necessary cables and wiring for installation along with a license plate frame mount. Connect it your monitor display screen and the marine grade construction reveals any obstacles, rain or shine. Built-in night vision illumination for dark environments and when visibility is limited with G-sensor auto-save recording during collision via 32gn memory card slot. Drive safer and smarter with the Pyle PLCMDVR77 night vision license plate frame parking assist camera.
DETAILS

Features:

  • Vehicle DVR Driving Video Recording System
  • Rear-View Mirror Assembly with Built-in 7.4’’ -inch Display Screen

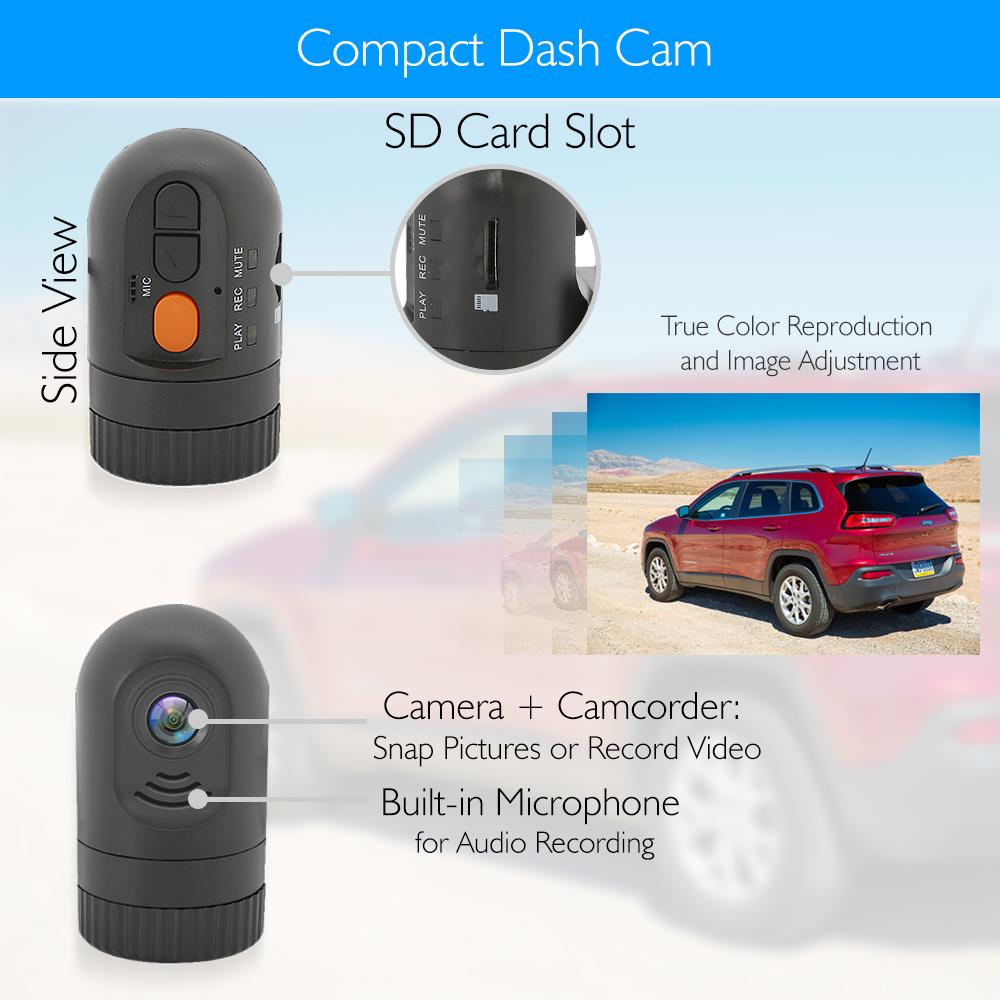

  • Camera + Camcorder: Snap Pictures or Record Video
  • Night Vision Illumination
  • Built-in G-Sensor Auto-save Recording during Collision
  • Built-in Microphone for Audio Recording
  • True Color Reproduction and Image Adjustment
  • Micro SD Memory Card Slot
  • Easy File Saving & Sharing
  • Universal Dashboard / Windshield Mountable
  • *Designed to Replace Your Existing Rear-View Mirror Assembly

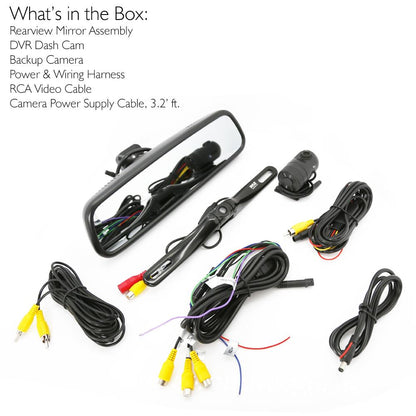

What’s in the Box:

  • Rearview Mirror Assembly
  • DVR Dash Cam
  • Backup Camera
  • Power & Wiring Harness
  • RCA Video Cable
  • Camera Power Supply Cable, 3.2’ ft.

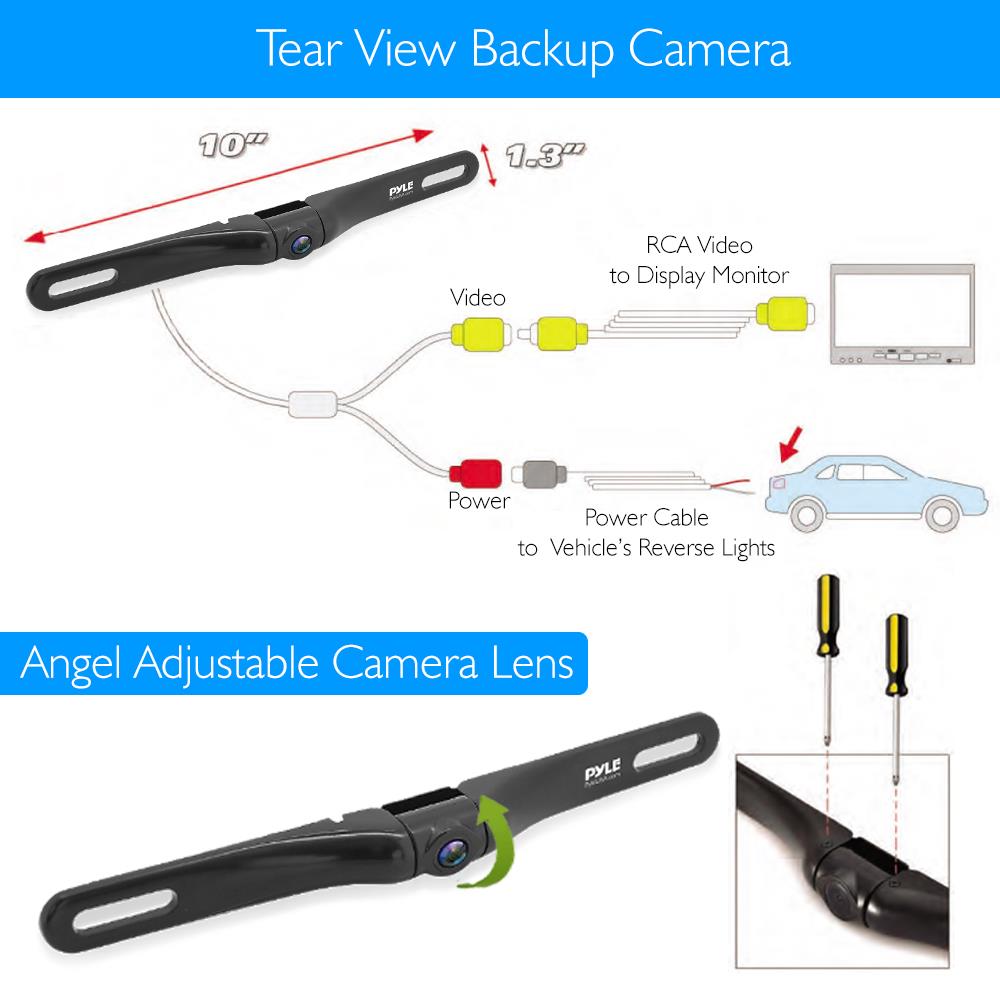

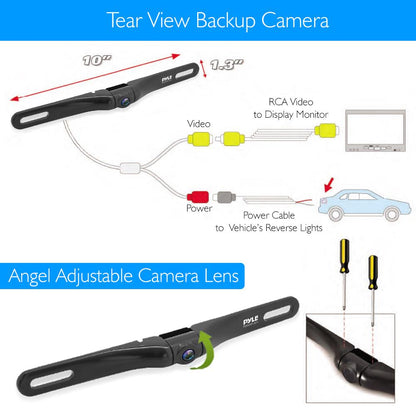

Backup Camera:

  • Video System: PAL/NTSC Auto Switching
  • Image Sensor: 1/4'' Color CMD
  • Effective Pixel: 656 x 492Pixels
  • Resolution: 420 TV Lines
  • Lens Angle: 170° Degree
  • Marine Grade Rating: IP-69
  • Video Output: 1.0V PP-75 Ohm
  • Camera Dimensions (W x H x D): 10.0" x 1.3" x 1.3" -inches
  • Weight: 0.72 lbs

Technical Specs:

  • Video System: PAL/NTSC Auto Switching
  • LCD Screen: 7.36’’ TFT LCD
  • Monitor Resolution: 1280 x 420 Pixels
  • Brightness: 1000cd/m2
  • Aspect Ratio: 16:9
  • Monitor And Camera Connector: RCA connector
  • AV Inputs: 3CH- AV1- Left Camera, AV2-Back Camera, AV3-Right Camera
  • Micro SD Card Support: Up to 32GB, Not Included
  • Power Consumption: 7W (Working) 0.5W (Standby)
  • Power Supply: DC 12-24V
  • Monitor Dimensions (L x W x H ): 10.0" x 1.3" x 1.26" -inches
What's In The Box
  • Rearview Mirror Assembly
  • DVR Dash Cam
  • Backup Camera
  • Power & Wiring Harness
  • RCA Video Cable
  • Camera Power Supply Cable, 3.2’ ft.
  • MANUALS & DOWNLOADS
    Questions & Answers

    QUESTIONS & ANSWERS

    Ask a Question
    • is there a wireless version of this exact system/product? I am primarily interested in replacement mirror, large screen, wireless system with backup assist for a 2006 Toyota Tundra Double Cab truck

      We currently do not have wireless with this model

    • The C pillars in my Toyota Prius restrict the view I see in my rear view mirror. Would the PLCMDVR77 be suitable for replacing my rear view mirror? The camera and display would be on the entire time I'm driving.

      It is possible to set it on at all times depending on how it is wired

    • Where does the front camera mount on the mirror or the windshield ?

      Please contact us through our email support system so we can share images to further assist you. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

    • Hello, the dash camera what are the colored wires go example yellow what connection is this for and the red wire same thing and the black I am thinking ground

      Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

    • How does this mount? I don't see anything showing how it mounts. Are there different mounting options?

      Please contact us through our email support system to further assist you. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

    • Hello - I bought this item but I need to replace the front dash camera. Where can I get this from Pyle?

      This is what we recomend. PLCM2720

    • Are the left and right trigger lines, for turn signal voltages that initiate the the display to show the left or right side cams?

      Yes

    • On the PLCMDVR77, what are the "trigger lines" for... are those inputs to the display to tell it what camera to look at? I suspect you mean for the display to be powered "off the ignition switch". If so, will it turn on and display the most recent camera when I turn the key on, or will I need to separately turn the display on and fool around with it every time I start the car? The car in question is a camper van and I'd want to use your mirror/display with a different kind of camera that I could mount on the roof of the van. I guess the camera interface is pretty standardized, correct? Thanks, Chris 707-900-1070 if you'd rather talk

      The trigger wires are for the Left and Right signal trigger and reverse trigger for the backup camera. If the Video inputs are not labeled, once it is installed initiate a trigger to left and plug a camera on the video inputs to find which is left same goes for the rest of the two cameras.

    • I need the rubber bands that hold the rear view mirror/camara on the existing vehicle rear view mirror. How do I order those?

      Not really sure if we have the rubber bands but you can send a request

      Please do not hesitate in contacting us through our email support system. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.

      For Parts Request Please Complete the information below:

      Full Name:
      Email Address:
      Contact Number:
      Model Number:
      Shipping address:
      Requesting Part:
