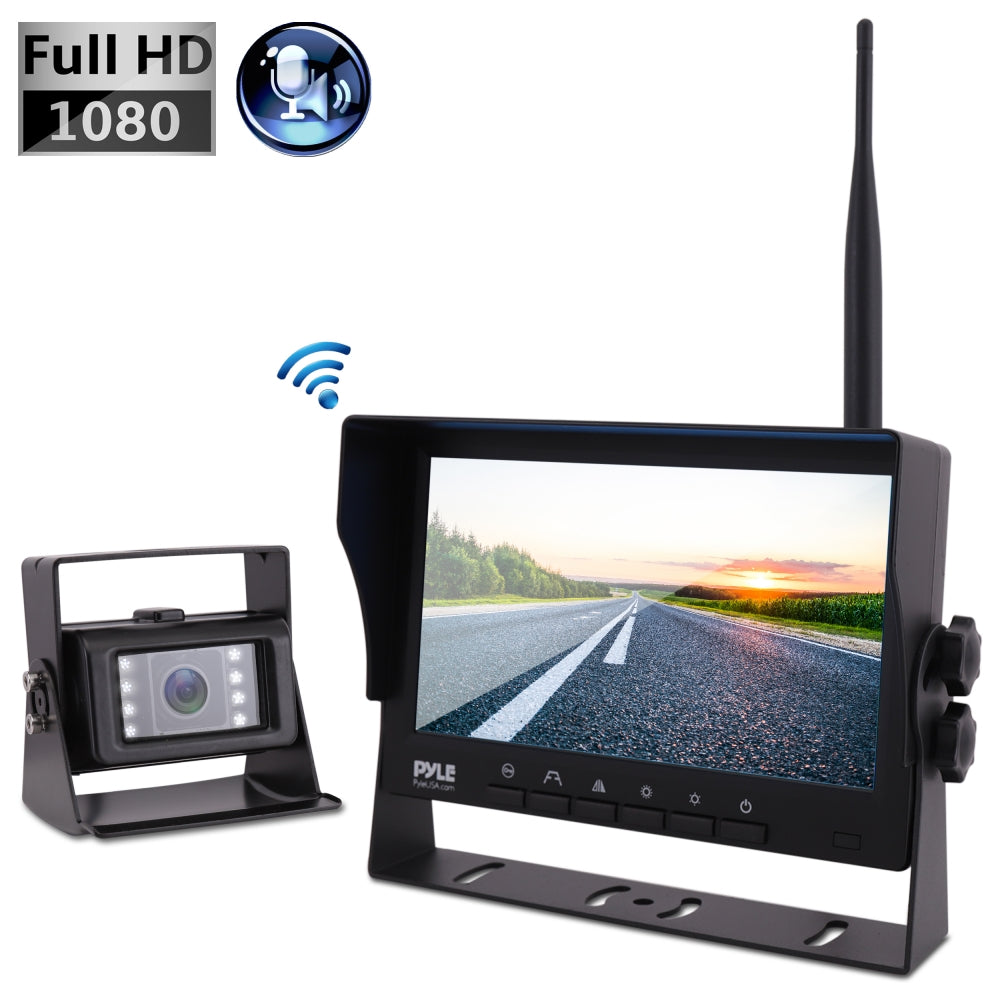

Wireless Backup Camera Kit 7" HD Monitor Night Vision Audio
Wireless Backup Camera Kit 7" HD Monitor Night Vision Audio
3 Year Warranty
30-Day Returns
Free Shipping in U.S.
Couldn't load pickup availability
About this item
DETAILS
Features:
- All View Angle IPS TFT LCD Panel
- 2.4G Digital Wireless Transmit Solution
- Wireless Transmit Range at About 11,811’’ -inches
- Camera with Built-in Microphone
- Transmits Audio Sound to the Monitor
- Monitor Have Sound Mute Operation Button

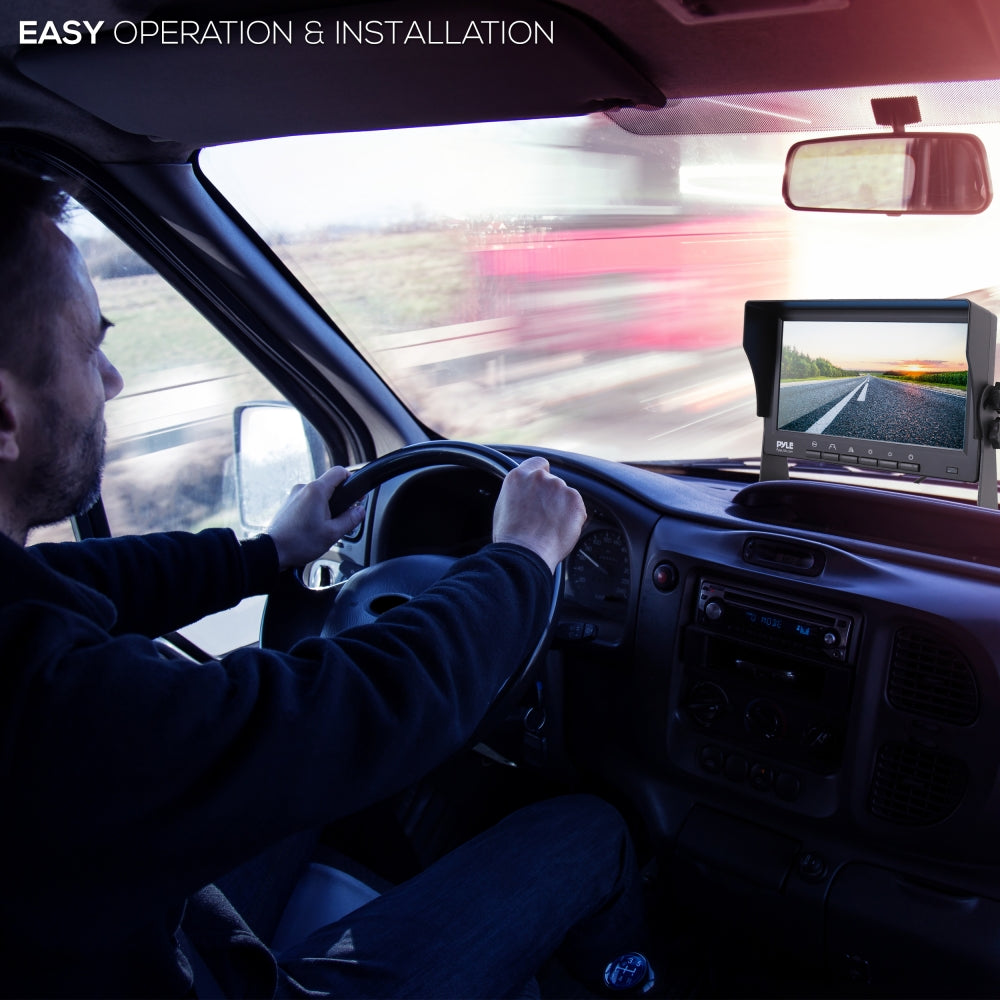

- Easy Operation & Installation on Vehicles
- Includes Sound Control Button
- Built-in Speaker and Microphone
- Ability to Connect Only One Wireless Camera
- Designed for Car/Truck use 12/24 Volt Systems

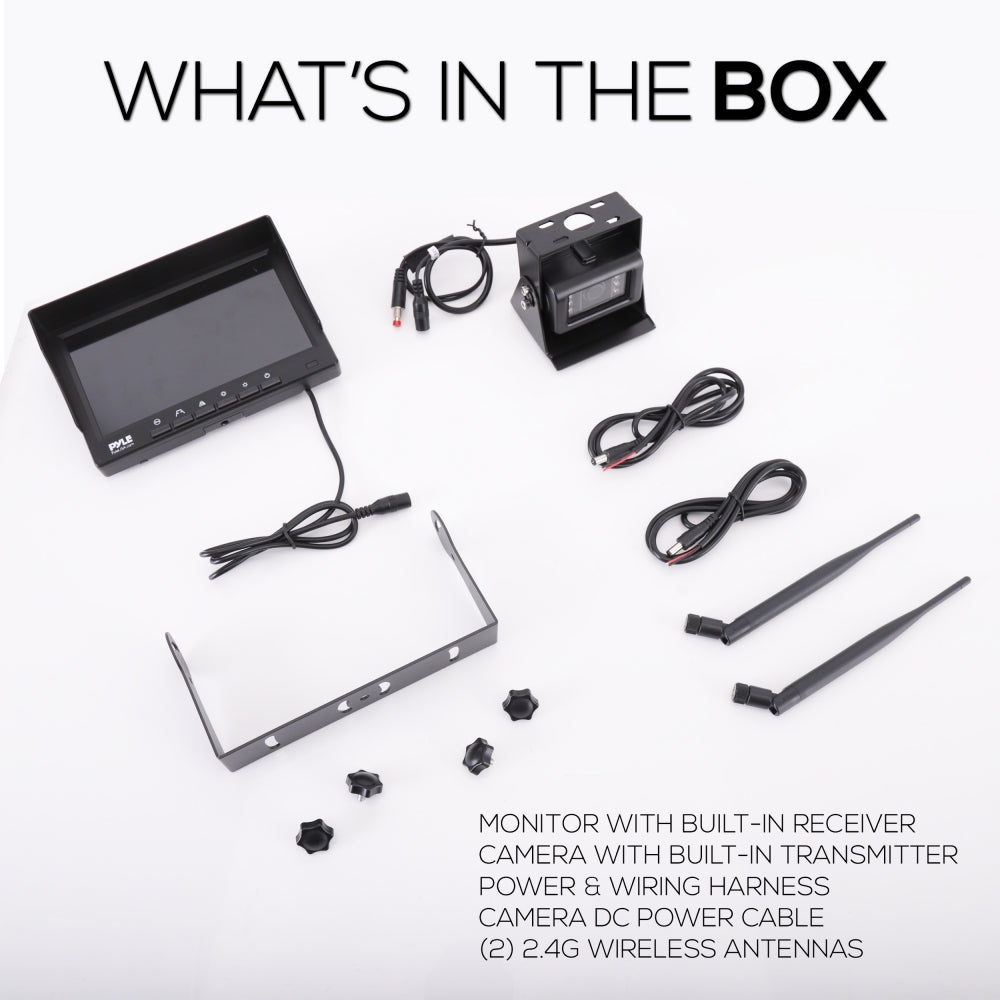

What’s In The Box:
- Monitor with Built-in Receiver
- Camera with Built-in Transmitter
- Power & Wiring Harness
- Camera DC Power Cable
- (2) 2.4G Wireless Antennas

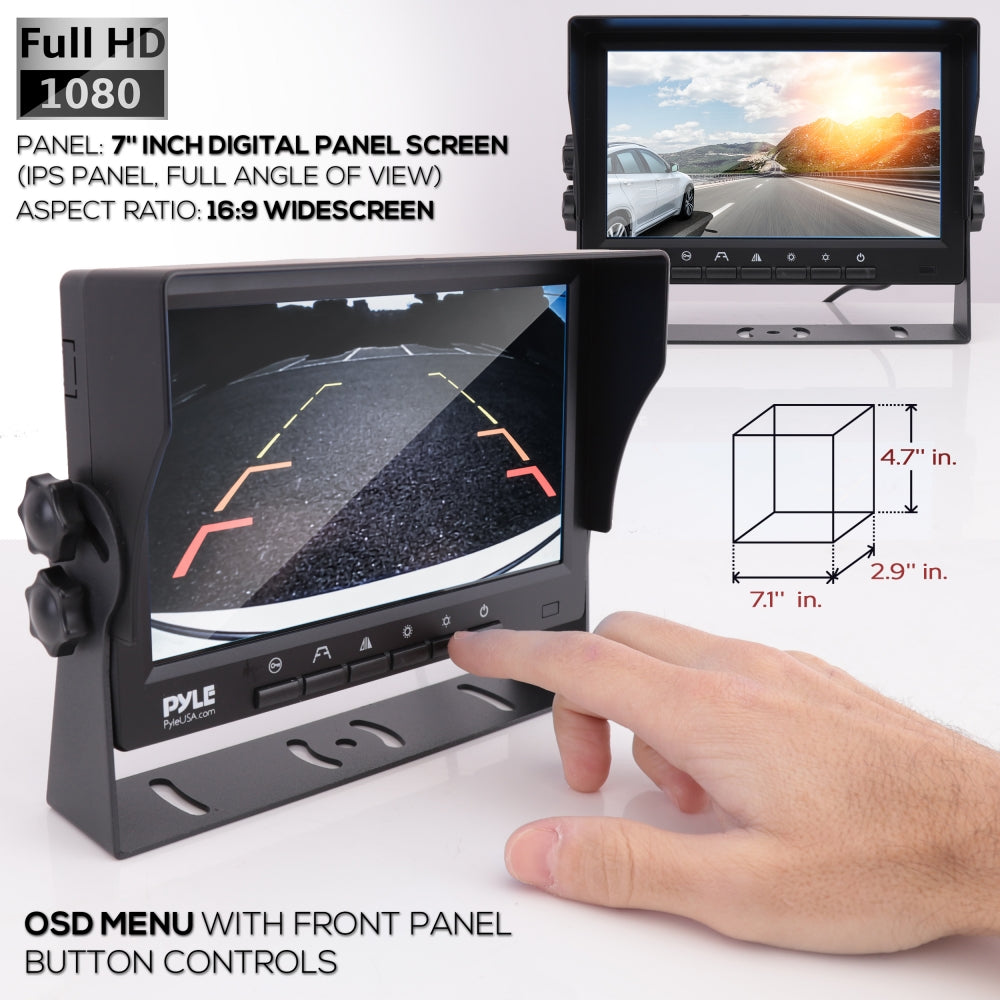

Monitor Specs:
- 1080p HD Quality
- Panel: 7'' -inch Digital Panel Screen (IPS panel, Full Angle of View)
- Aspect Ratio: 16:9 Widescreen
- System: PAL/NTSC Auto-Switching

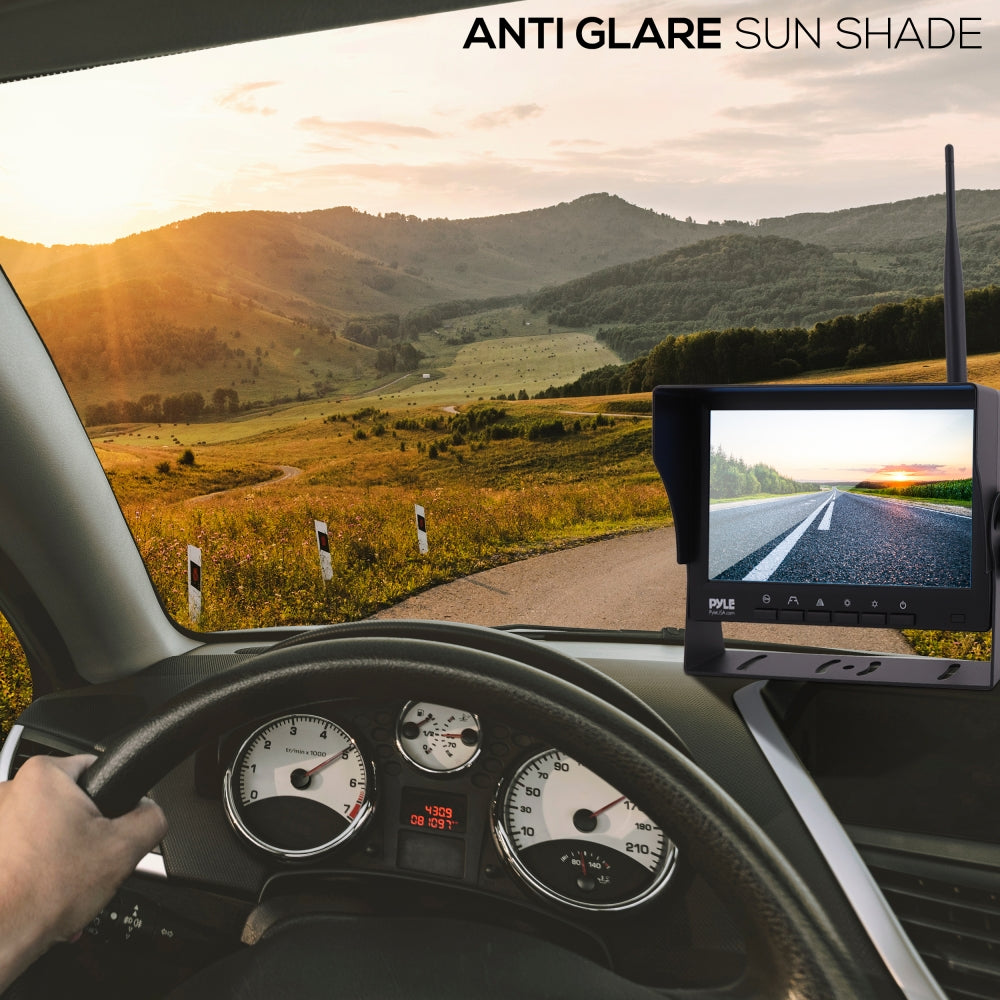

- Anti Glare Sun Shade
- Universal Stand Mount
- Resolution: 800 x 480 Pixels
- Power: DC12V & DC24V（Max to DC36V）
- Power Consumption: Less than 5W
- Max.Current: Less 450mAh
- Storage temperature: -30℃〜80℃
- Working temperature: -20℃ to 70℃
- Brightness: 500 cd/m2
- OSD Menu with Front Panel Button Controls
- Brightness, Color, Contrast Adjustable
- Dimensions: (L x W x H): 7.1'' x 2.9'' x 4.7'' -inches
Monitor Wireless Receiver Specs:
- Operating frequency range Cover: 2.4GHz~2.4835GHz
- Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
- Modulation Type: FSK/GFSK
- RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
- RF Bit Rate: 4MHz BER<1E-3
- Spread Spectrum: FHSS
- Distance: Over 300M

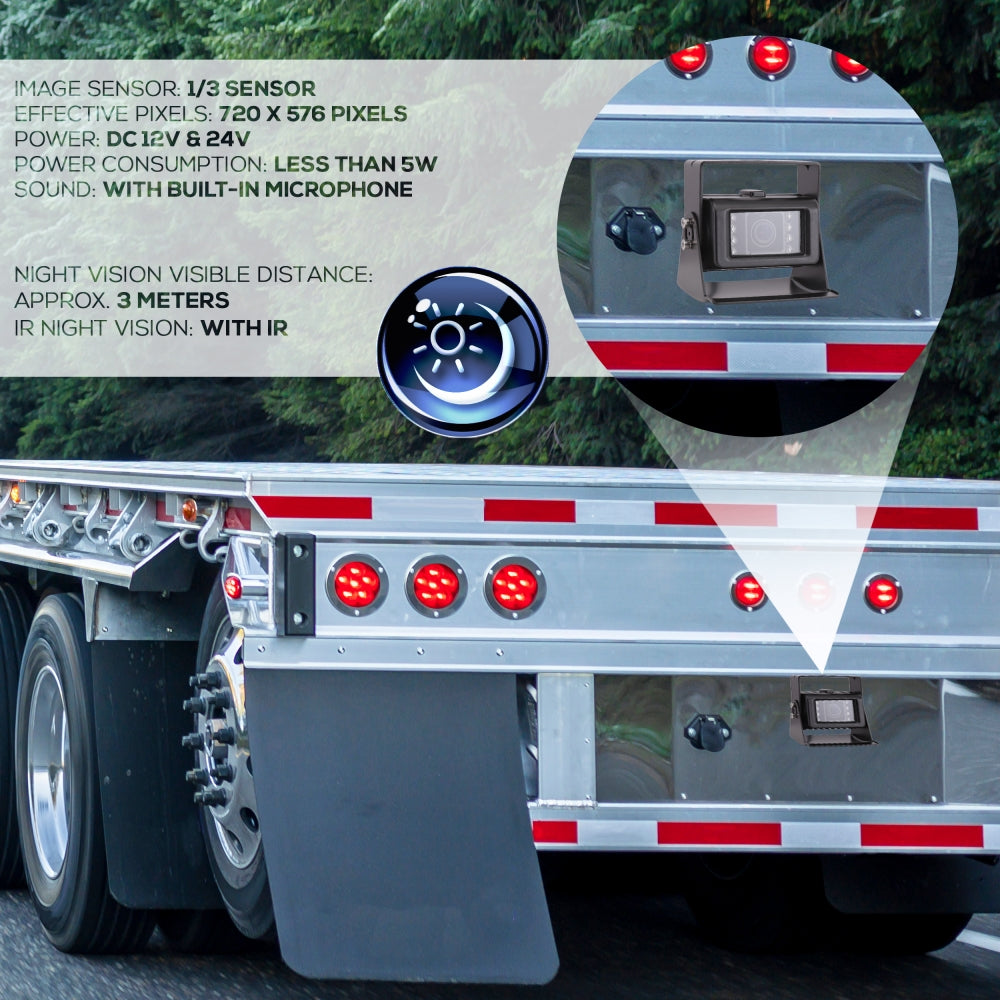

Camera Specs:
- Image Sensor: 1/3 sensor
- Effective Pixels: 720 x 576 pixels
- System: AHD
- Night Vision Visible Distance: About 3 meters
- IR Night Vision: with IR
- Power: DC 12V & 24V
- Power Consumption: Less than 5W
- Max.Current: Less 450mAh
- Storage temperature: -30℃〜80℃
- Working temperature: -20℃ to 70℃
- Sound: With Built-in Microphone
- Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17" -inches

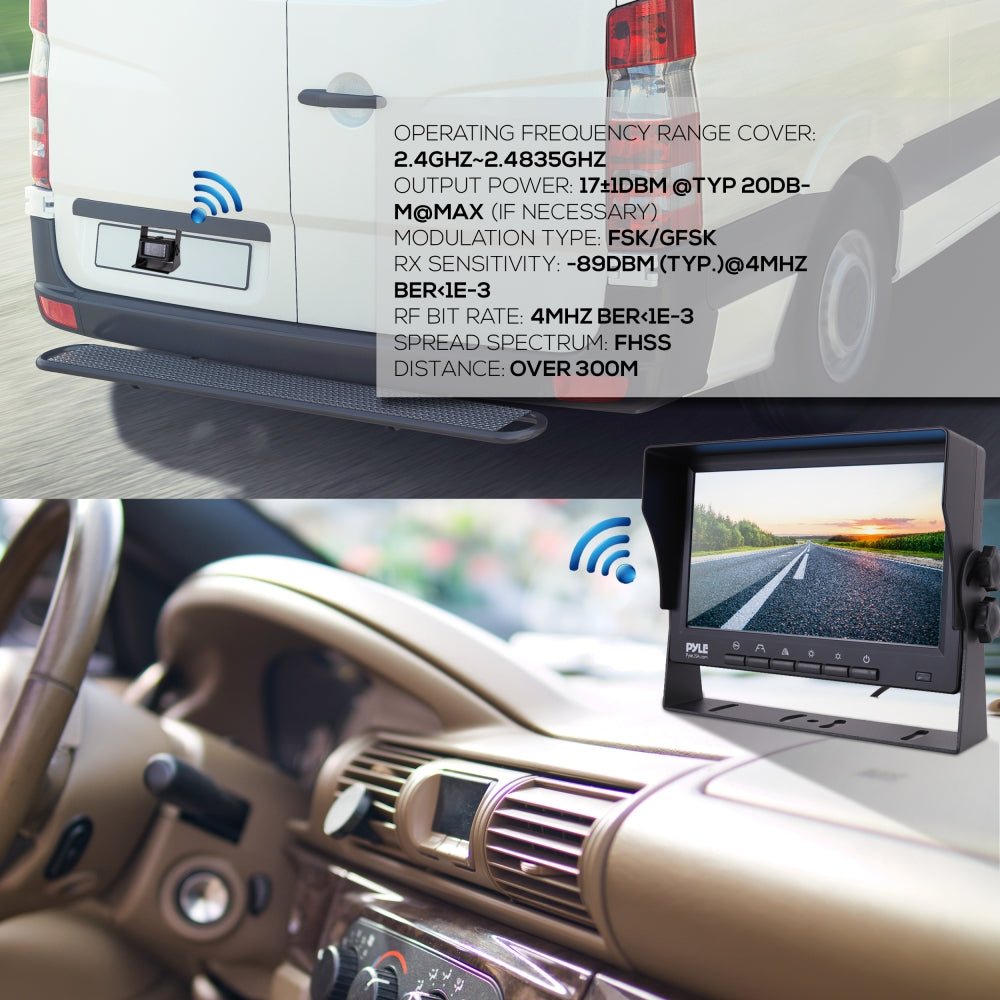

Camera Wireless Transmit Specs:
- Operating frequency range Cover: 2.4GHz~2.4835GHz
- Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
- Modulation Type: FSK/GFSK
- RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
- RF Bit Rate: 4MHz BER<1E-3
- Spread Spectrum: FHSS
- Distance: Over 300M
What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
How do I install this? I am new to back up cameras and there are no instructions in the box. Just the parts and a how to mount.
Please contact us through our email support system so we can assist you further and share images. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
-
I need a second camera. How do I go about that
Hi we don't have the wireless part of the camera but we have this
https://pyleusa.com/products/plcm27?_pos=1&_sid=7fc9227e2&_ss=r
Please see if this would help. -
I have this system and would like to buy another wireless camera to add to it . I can’t find extra cameras on your sight ,which camera do I need ?
The PLCMTR83WIR is designed only to have one camera.
