Mono-Block Weather Resistant Audio Ampli

Features:

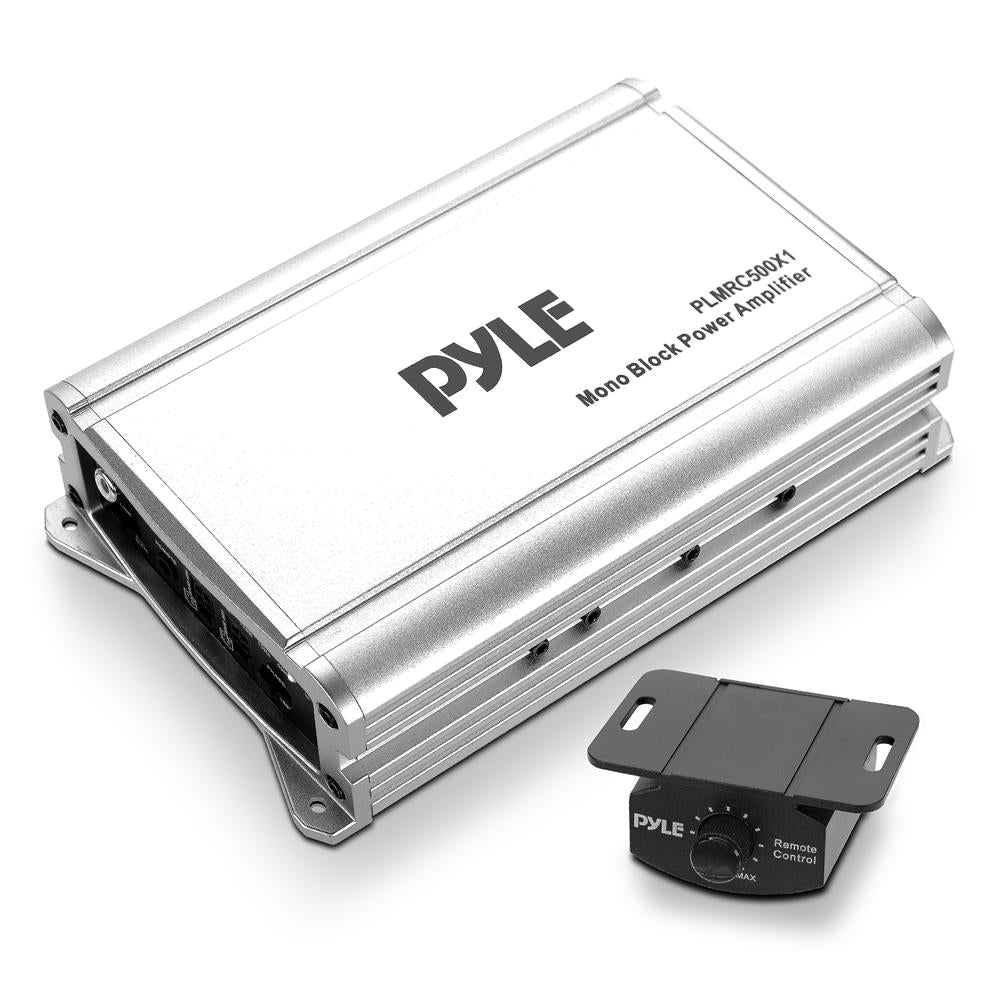

• Mono-Block Audio Amp System
• Weather Resistant Class D Compact Amplifier
• IPX4 Effect
• Integrated Power Wiring Harness
• Perfect for Custom Installations& Applications
• Ability to Connect& Stream Audio from External Devices

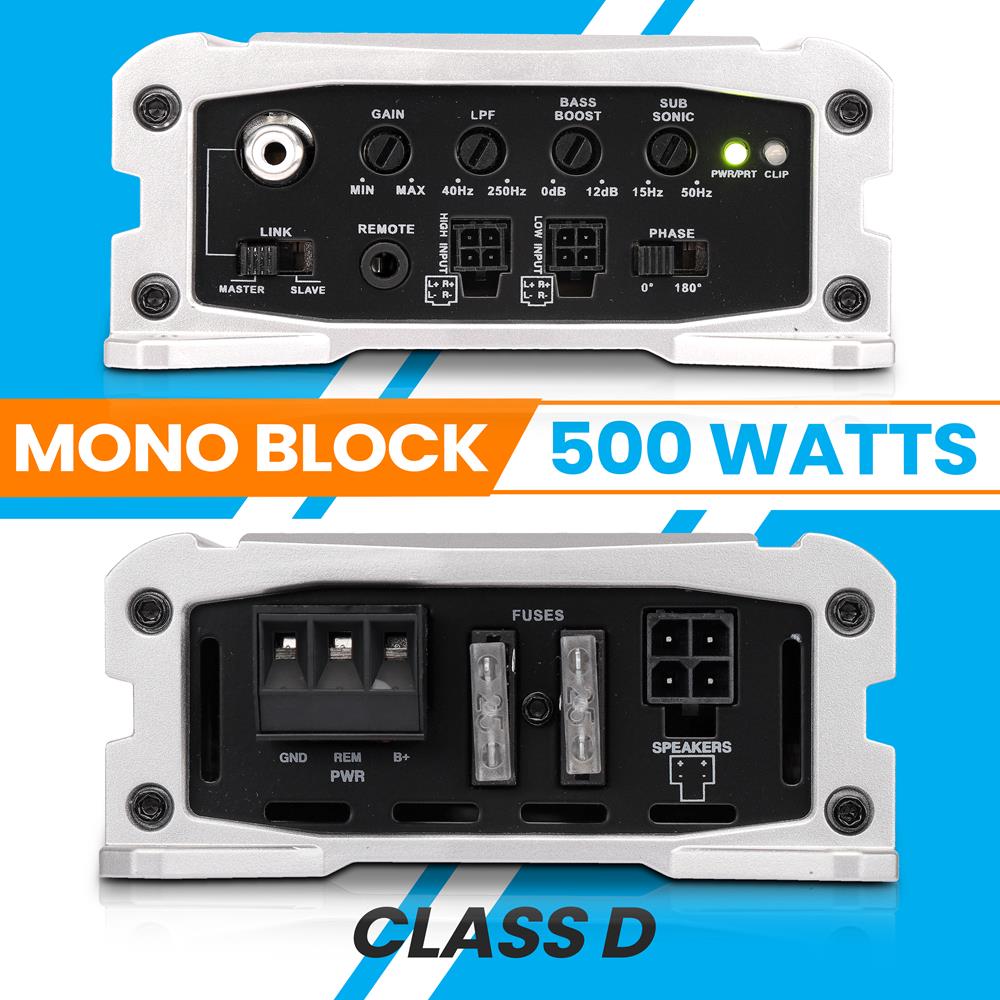

• Speaker Wiring Connectivity
• Soft Turn On /Off
• Overload &Power Protection Circuitry

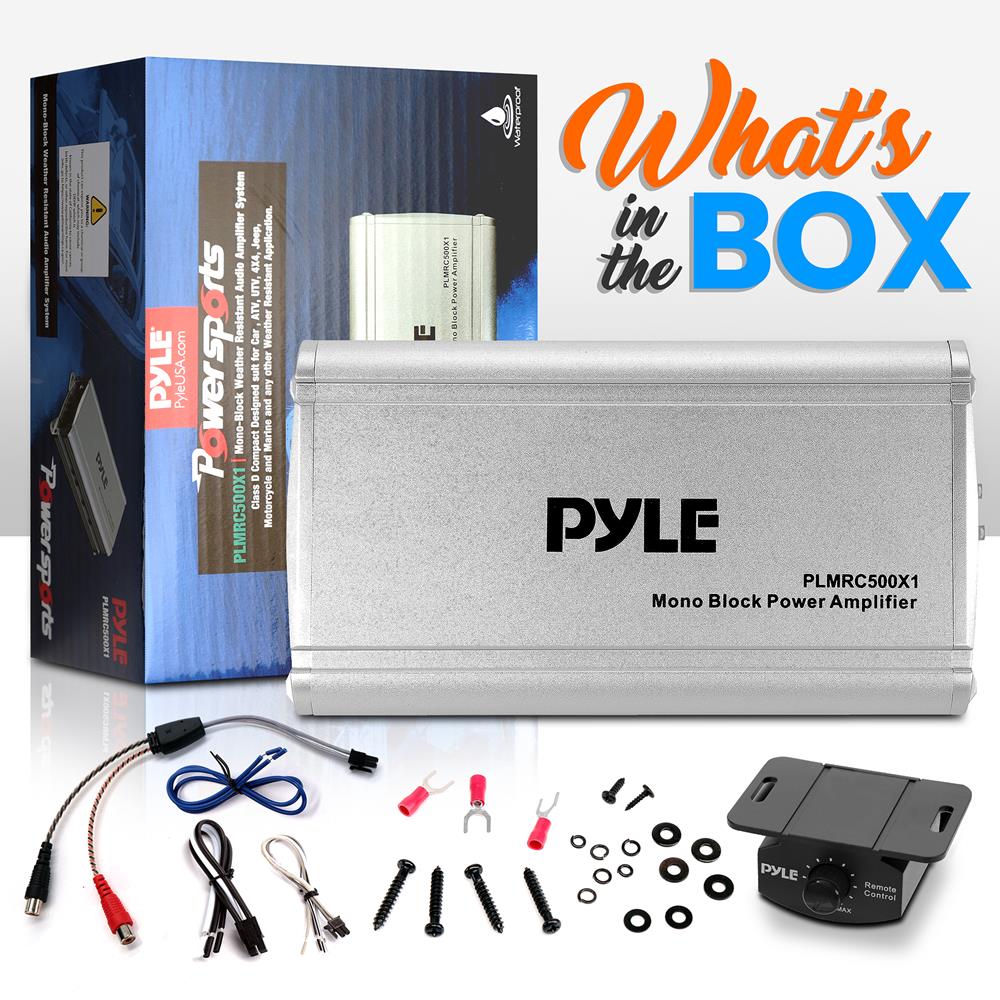

What’s in the Box:

• Mono-Block Audio Amp System
• Bag of Mounting Hardware
• Remote Control with Cable
• Speaker Output Wire
• Low-Level Input Wire
• Hi-Level Input Wire
• Remote In Wire (Blue)
• Power Connector

Technical Specs:

• RMS Power Output:
• 190W x 1 @ 4 ohm @ 1% THD @ 14.4V
• 310W x 1 @ 2 ohm @ 1% THD @ 14.4V
• 500W x 1 @ 1 ohm @ 1% THD @ 14.4V
• MAX Power Output:
• 400W @ 4 ohm
• 650W @ 2 ohm
• 1000W @ 1 ohm
• T H D: 0.1%
• S / N Ratio: >90 dB
• Frequency Response: 10Hz-250Hz
• Fuse: 25A x 2
• Power: DC 12V

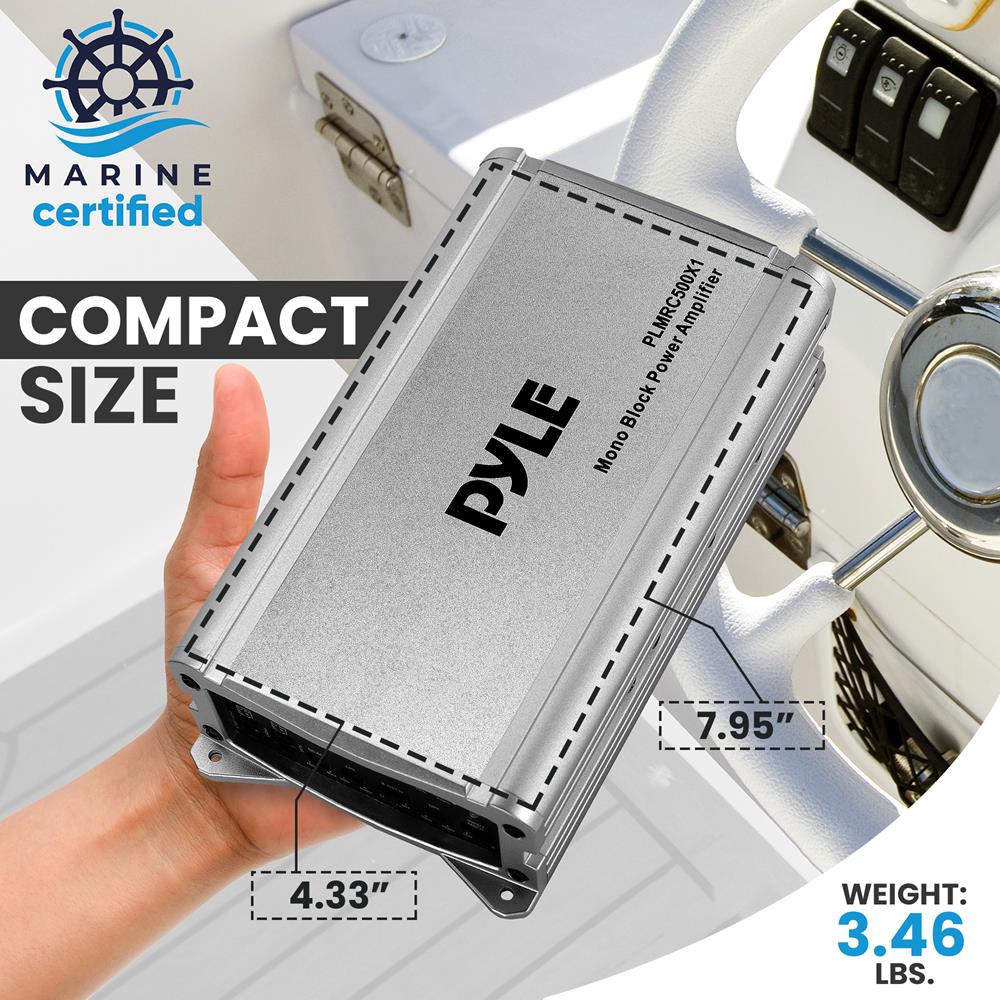

• Amp Dimensions (L x W x H): 7.95'' x 4.33'' x 1.87'' -inches
