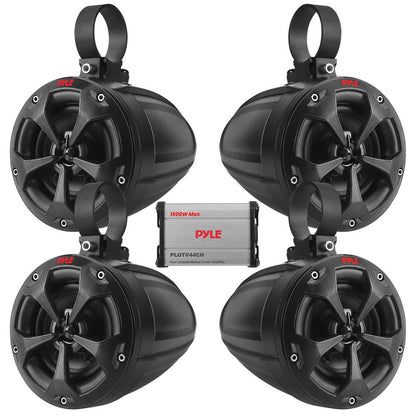

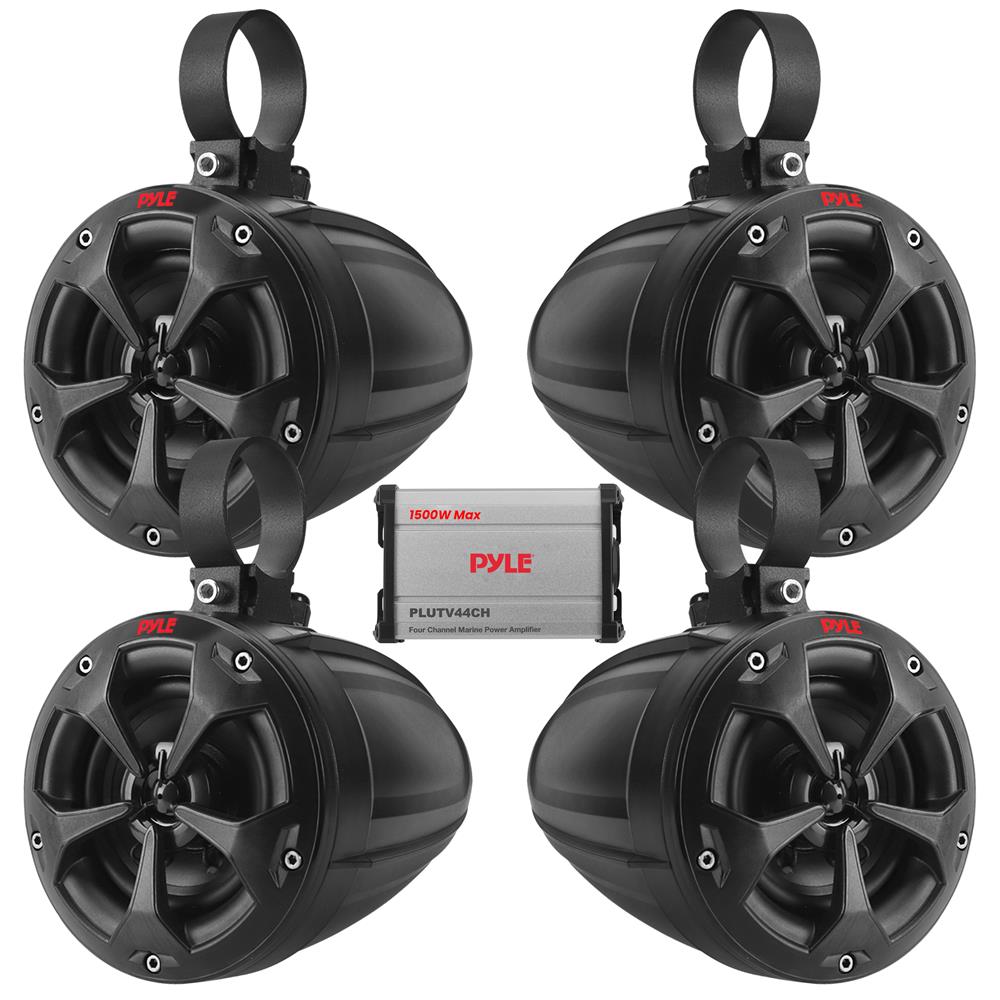

4 Ch. Marine Power Amplifier

• Waterproof Rated Speakers - Pro Audio Power Sports Amplifier System Kit - 4-Channel Marine Audio Amplifier - Marine Grade Rugged Construction - Waterproof Rated & Weather-Resistant Connectors - Integrated Power Wiring Harness
• Perfect for Custom Installations & Applications - Ability to Connect & Stream Audio from External Devices - Wired RCA/AUX Audio Input - Speaker Wiring Connectivity - Anti-Thump Turn-On - Soft Turn On / Off - Input Voltage: 12V
• Pre-Amp RCA Out to Any OEM / Factory-Made Universal Mono Block/or Full Range Amplifier - Overload & Power Protection Circuitry - Used for Watercraft & Portable Mobile Vehicle Sound Systems What's in the Box:
• (4) 4’’-inch Marine Speakers - Compact Marine Amp - RCA-to-Aux (3.5mm) Cable - Aux (3.5mm) Audio Cable Amplifier Type: 4-Ch. Audio Component - Power Output: 1500 Watt MAX - 4 x 45 Watts RMS @ 4 Ohm
• 2 x 150 Watts MAX @ 4 Ohm - Marine Grade IP-65 Rating - T.H.D: 0.1% - S/N Ratio: > 93dB - Channel Separation: > 50dB - Frequency Response: 20Hz-20kHz - Fuse: 20A - Universal Mounting Brackets Roll-Bar/Roll-Cage Diameter: 1.25''- 2.0'' -inches

Features:

• Waterproof Rated Speakers
• Pro Audio Power Sports Amplifier System Kit
• 4-Channel Marine Audio Amplifier
• Marine Grade Rugged Construction
• Waterproof Rated & Weather-Resistant Connectors
• Integrated Power Wiring Harness
• Perfect for Custom Installations & Applications
• Ability to Connect & Stream Audio from External Devices
• Wired RCA/AUX Audio Input
• Speaker Wiring Connectivity
• Anti-Thump Turn-On
• Soft Turn On / Off
• Pre-Amp RCA Out to Any OEM / Factory-Made Universal Mono Block/or Full Range Amplifier
• Overload & Power Protection Circuitry
• Used for Watercraft & Portable Mobile Vehicle Sound Systems

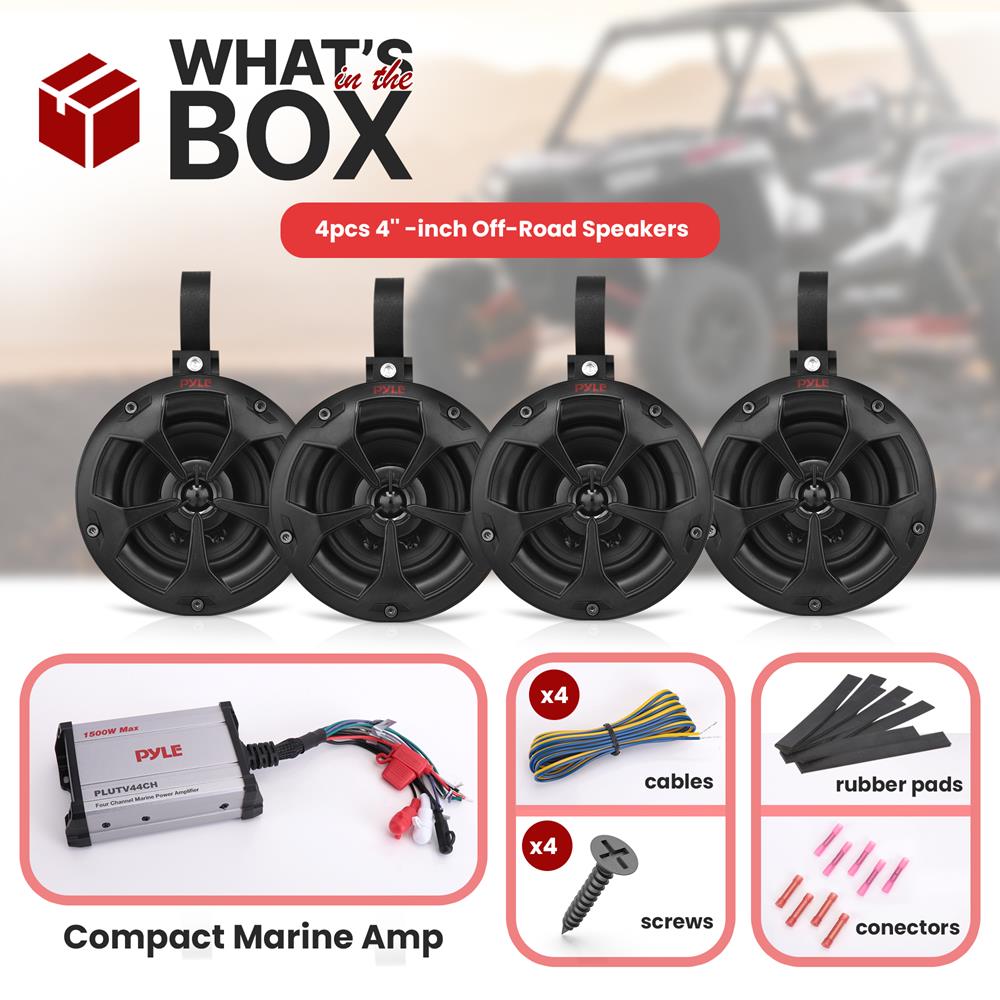

What's in the Box:

• (4) 4’’-inch Marine Speakers
• Compact Marine Amp
• RCA-to-Aux (3.5mm) Cable
• Aux (3.5mm) Audio Cable

Technical Specs:

• Amplifier Type: 4-Ch. Audio Component
• Power Output: 1500 Watt MAX
• 4 x 45 Watts RMS @ 4 Ohm
• 2 x 150 Watts MAX @ 4 Ohm
• Marine Grade IP-65 Rating
• T.H.D: 0.1%
• S/N Ratio: > 93dB
• Channel Separation: > 50dB
• Frequency Response: 20Hz-20kHz
• Fuse: 20A
• Input Voltage: 12V
• Universal Mounting Brackets Roll-Bar/Roll-Cage Diameter: 1.25''- 2.0'' -inches
• Roll Bar Mounting Clamp Size: Up to 2" -inches
• Speaker Size (Front D x L): 5.6'' x 7.3'' -inches (each)
• Amp Dimensions (L x W x H): 5.3’’ x 3.5’’ x 2.1’’ -inches
