Line Array Speaker System - Powerful Sound, 1320W, Bluetooth Streaming

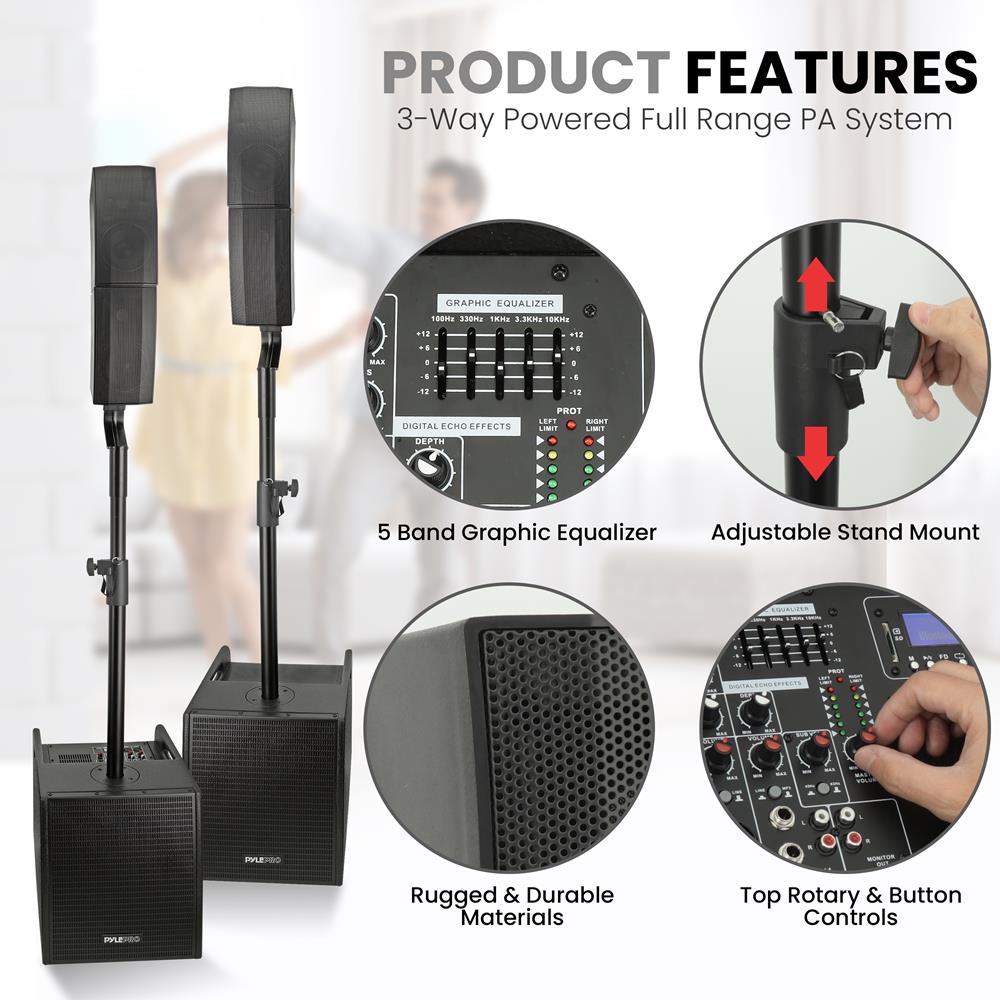

Features:

• Loudspeaker PA System
• Rugged, Durable & Reliable Sound
• Bluetooth Wireless Streaming Ability
• Bluetooth Wireless Music Streaming Ability

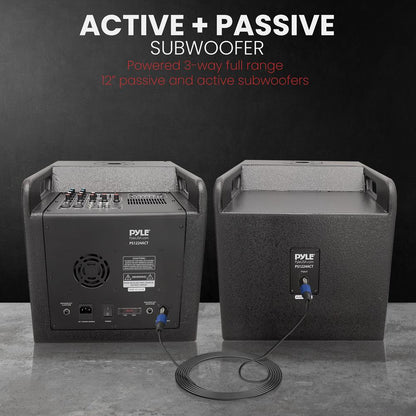

• Speaker System: 2x12'' Active and Passive Subwoofer, 4 x 4” woofer,4 x 1'' Tweeter
• Compression Driver with PEI Diaphragm
• 3-Way Full Range Audio Projection
• Built-in Digital Audio Amplifier
• XLR Microphone Input
• 1/4’’ Jack, RCA (L/R) Stereo Line Input
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display

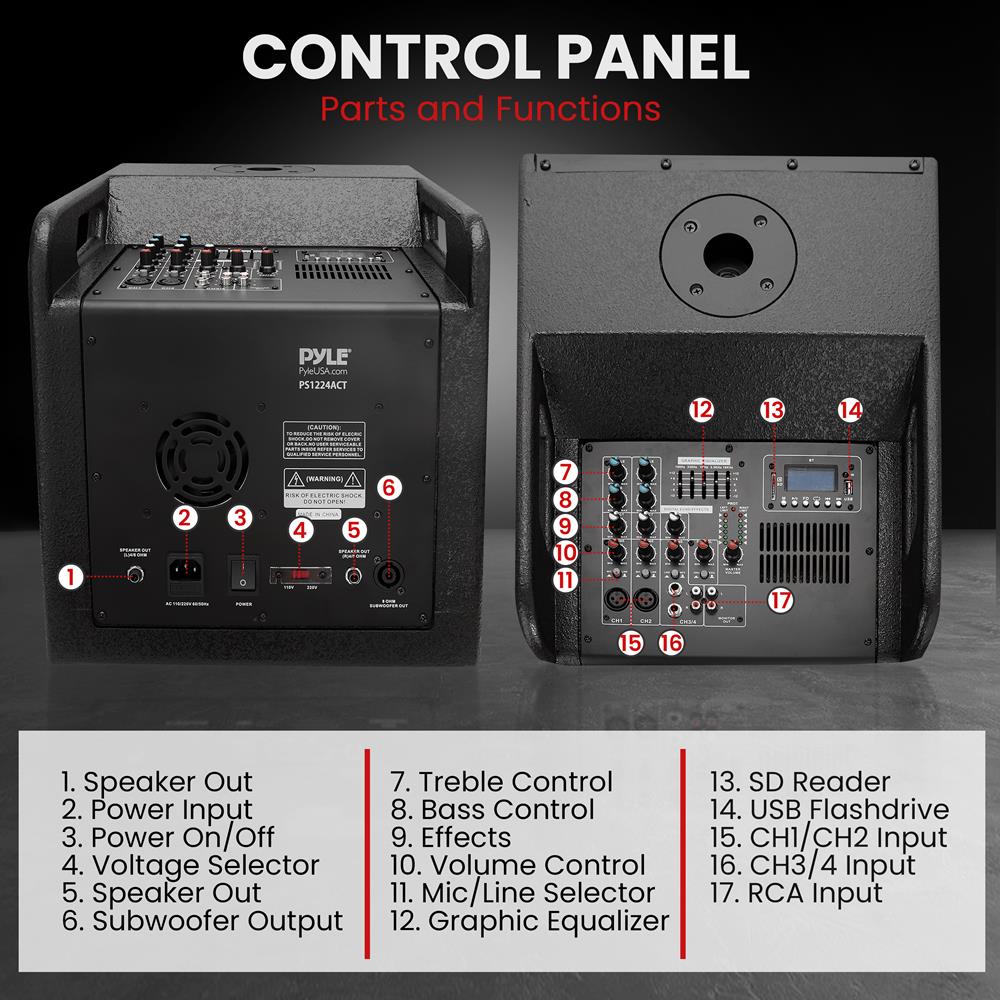

• Rear Panel Rotary Dial & Button Control Center
• Master Volume, Mic Volume, Treble, Bass, Effect Adjustable
• 5 Band Graphic Equalizer
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible

Bluetooth Wireless Streaming:

• Instantly Stream Music from Your Bluetooth Devices
• Works with All Your Favorite Bluetooth Devices
• (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Bluetooth Version: 5.0
• Bluetooth Wireless Range: 100'+ Feet
• Bluetooth Network Name: 'Pyle '

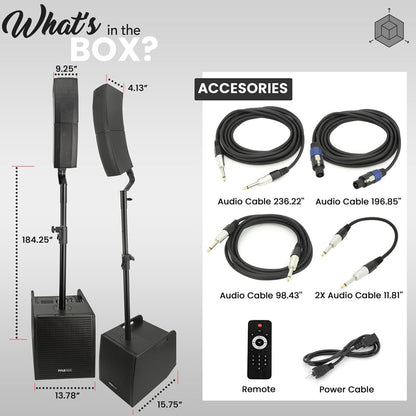

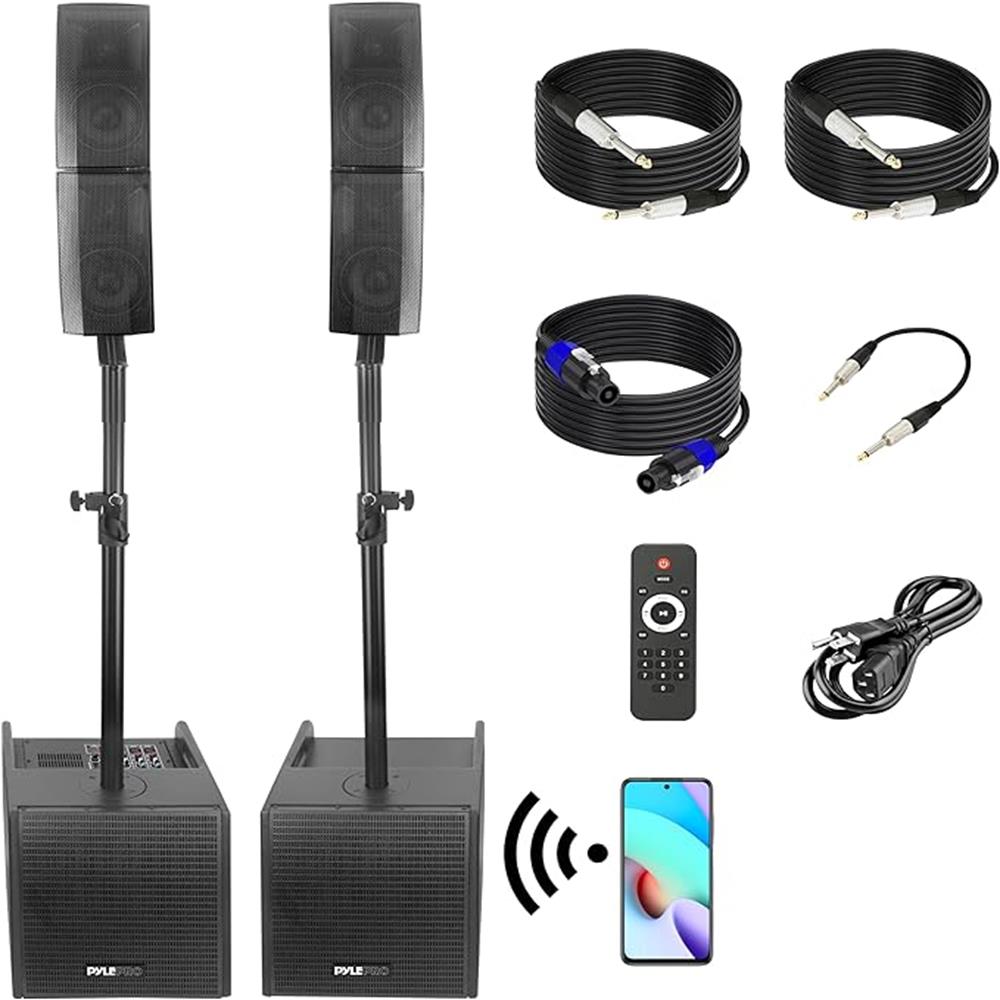

What's in the Box:

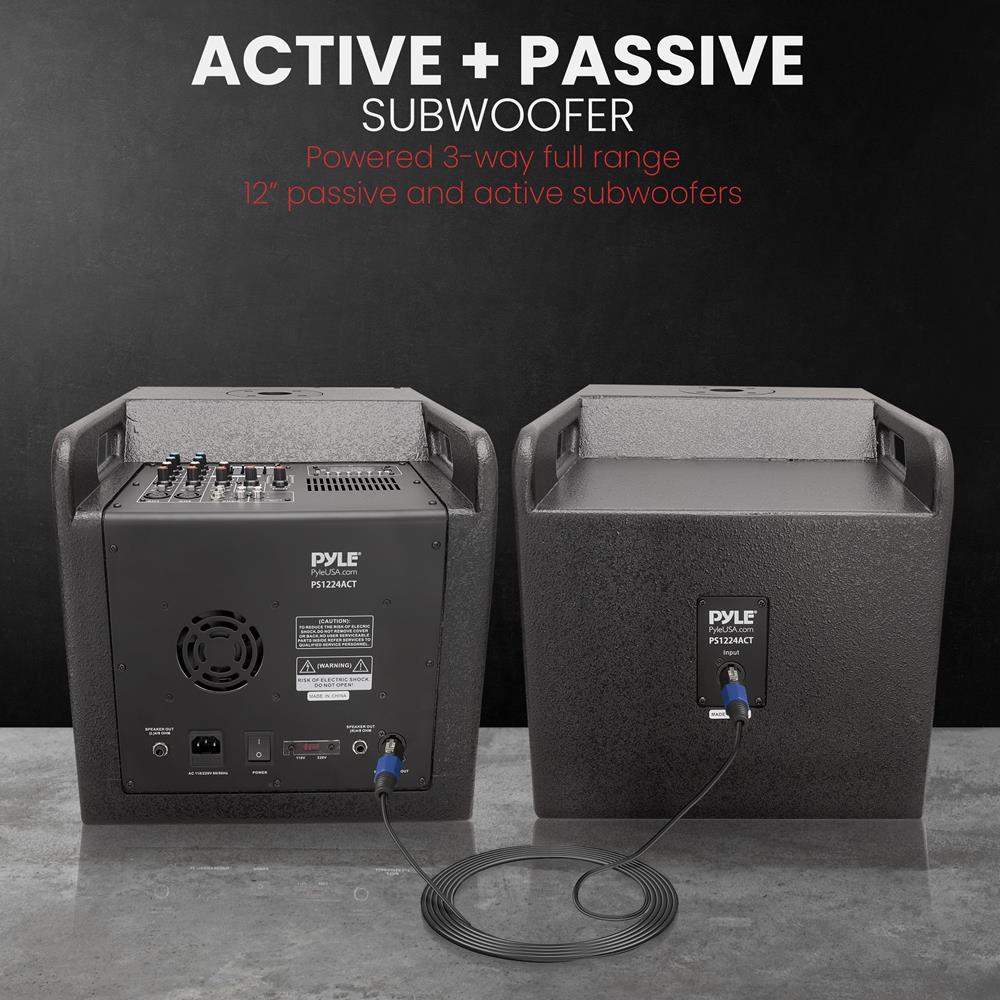

• 12'' Bluetooth Active Subwoofer Speaker
• 12'' Passive Subwoofer Speaker
• (4) 4” Passive Line Array Speaker
• (2) Stand
• Power Cable
• Audio Cable 98.43'' -inches (Both Sides are 6.35 1/4’’ Jack )
• Audio Cable 236.22'' -inches (Both Sides are 6.35 1/4’’ Jack )
• (2) Audio Cable 11.81'' -inches (Both Sides are 6.35 1/4’’ Jack)
• Audio Cable 196.85'' -inches (Both Sides are SpeakOn)
• Remote Control

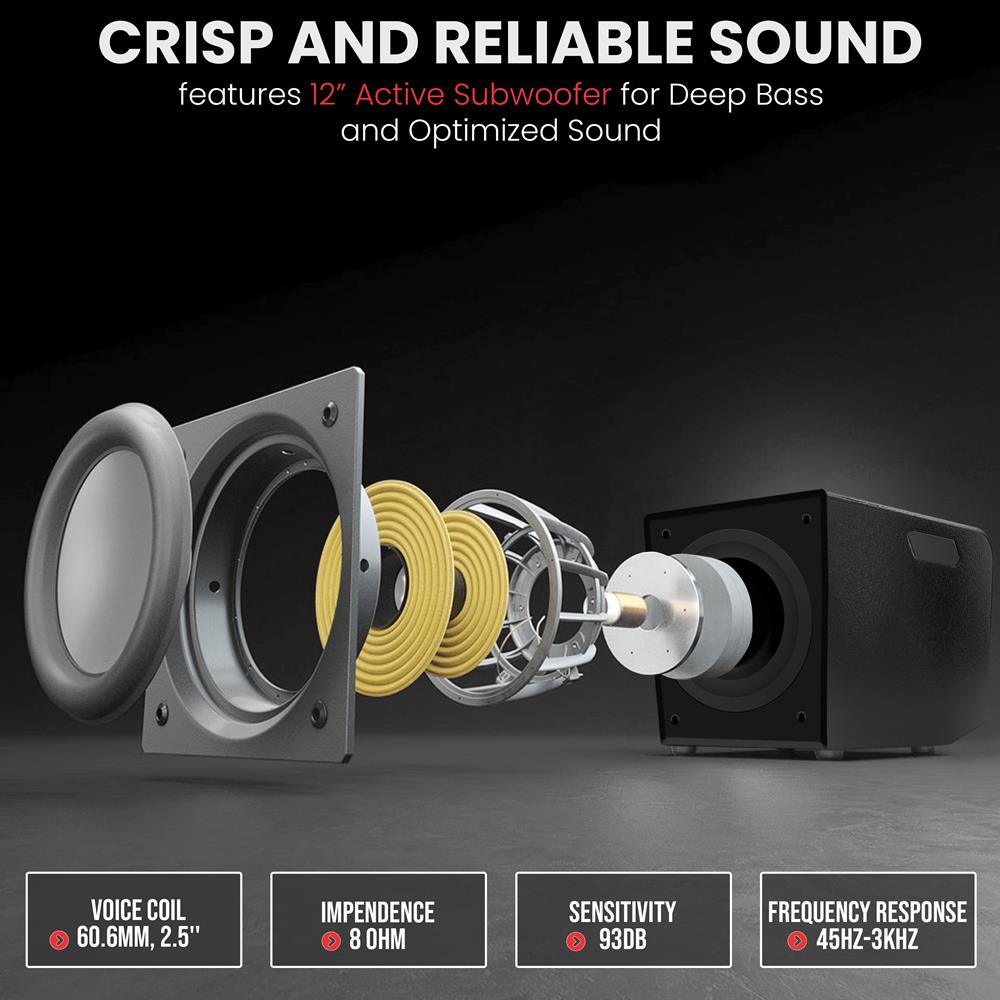

Subwoofer:

• Size: 12'' -inch
• Material: Stamped Steel Basket
• Impendence: 8 Ohm
• Magnet: 50 oz.
• Voice Coil: 60.6mm, 2.5'' -inch
• Sensitivity: 93dB
• Frequency Response: 45Hz-3kHz

Woofer:

• Size: 4'' -inch
• Material: Stamped Steel Basket
• Impendence: 8 Ohm
• Magnet: 10 oz.
• Voice Coil: 25.5mm, 1'' -inch
• Sensitivity: 88dB
• Frequency Response: 80Hz-8kHz

Tweeter:

• Size: 1.0'' -inch
• Material: PEI
• Impendence: 8 Ohm
• Sensitivity: 104dB
• Voice Coil: Kapton
• Frequency Response: 800Hz-20kHz

Technical Specs:

• Max Power Output: 1320 Watt
• RMS Power Output: 660 Watt
• Amplifier Class: D
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
• Inputs/Outputs 1/4" TS/unbalanced and 3.5mm TRS/Stereo Input with RCA Input
• T.H.D.: 1%
• Crossover Frequency: 120Hz/3.3kHz
• Voltage: AC 110/220V 60/50HZ
• Remote Control requires 3V Lithium Battery CR2025, Included
• Active Subwoofer Dimensions (L x W x H): 13.78’’ x 184.25’’ x 15.75’’ -inches
• Passive Subwoofer Dimensions (L x W x H): 13.78’’ x 184.25’’ x 15.75’’ -inches
• Passive Line Array Dimensions (L x W x H): 9.25’’ x 4.13’’ x 4.92’’ -inches
