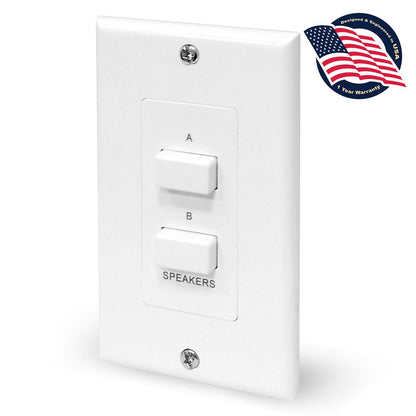

In-Wall Speaker Selector Switch 120W Push Button 3 Configurations

In-Wall Speaker Selector Switch 120W Push Button 3 Configurations

$37.99 Sale (20% off) SAVE XXX
$37.99
Sale (%) Sold out
Tags: In Wall Receiver & Amplifier, Wall Plates - In-Wall Control
  • 1 Year Warranty
  • 30-Day Returns
  • Free Shipping in Canada

View full details
In-Wall Speaker Selector Switch 120W Push Button 3 Configurations has a rating of 4.7 stars based on 45 reviews.

About this item

Product Highlights
The Pyle PVCS2 is an in-wall A/B speaker selector switch that installs in a junction box, just like a light switch. This switch makes it simple to direct your home amplifier's audio to two sets of speakers, such as one set indoors and one set outdoors. Activate the A speakers, B speakers, or both. Easy push button operation allows you to activate or deactivate your speakers quickly. The included wall plate frame cover allows for a clean installation for your walls. Take control of the audio with the Pyle PVCS2 Wall Plate Speaker Control Selector Switch.
DETAILS

Features:

  • Convenient Speaker Selection

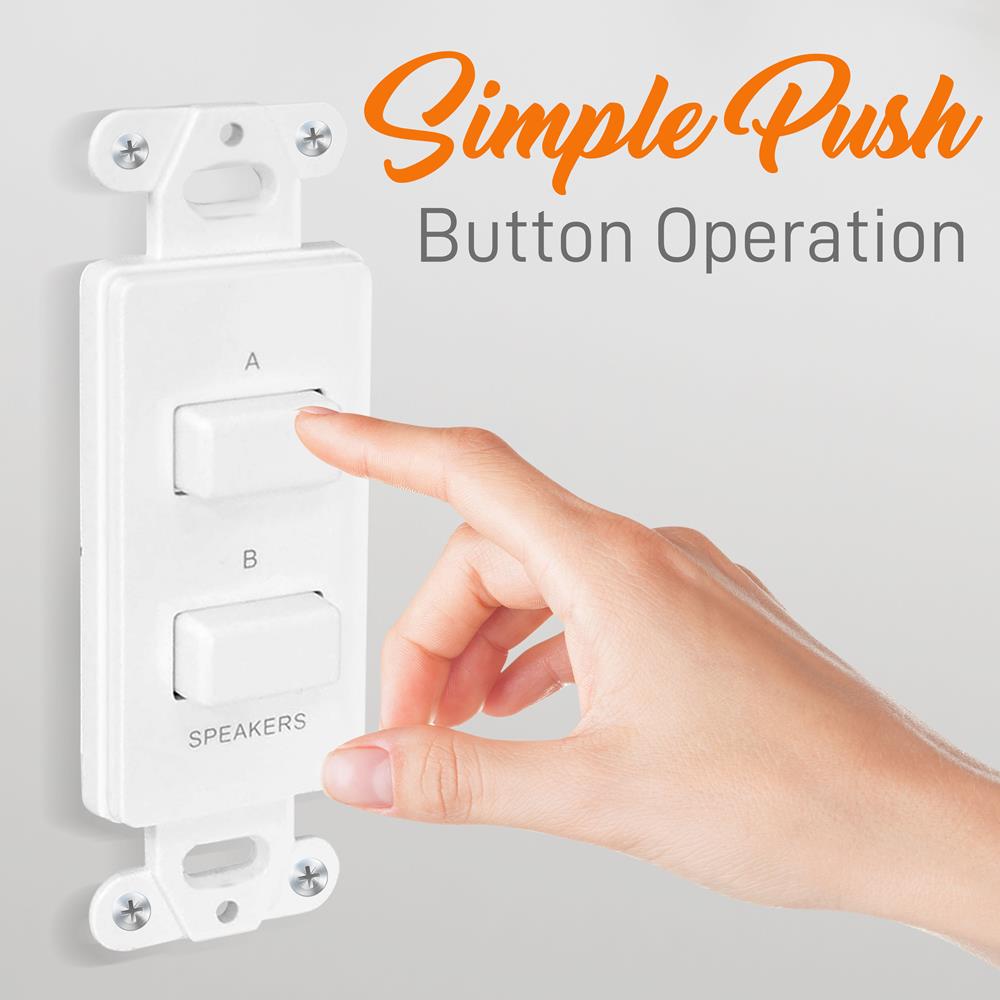

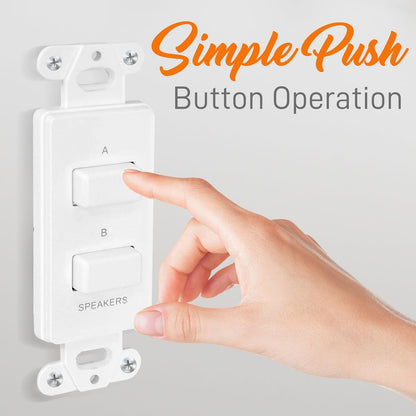

  • Simple Push Button Operation
  • (3) Possible Configurations: A, B, or Both (A + B)
  • Terminal Block Speaker Connectors
  • Universal Standard Wall Plate Size
  • Fits Standard Electrical Junction / Gang Boxes
  • Compatible with All Audio / Video Systems

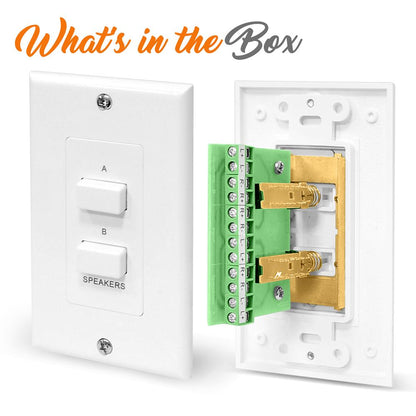

  • Includes Decorative Frame Plate Cover
  • 120 Watt Load Power Handling
MANUALS & DOWNLOADS

PVCS2 - Manuals

Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

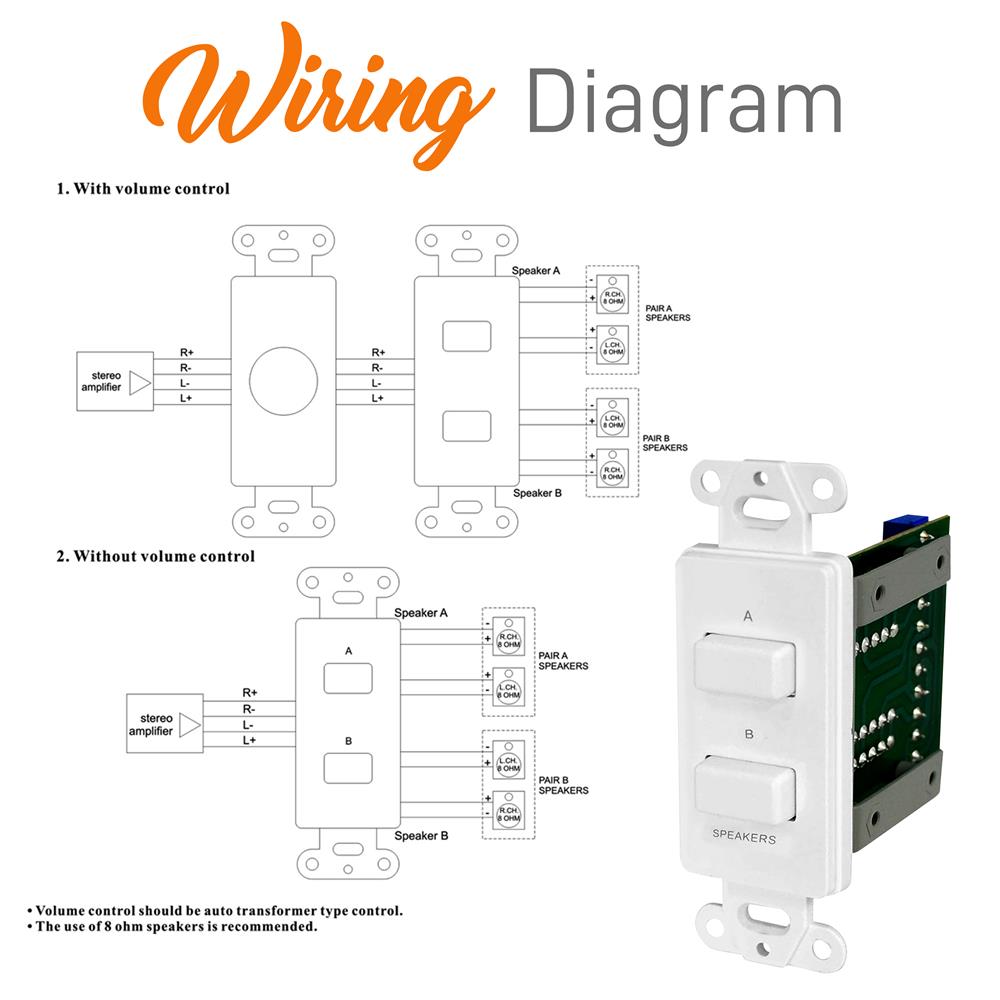

  • How are speaker wires properly connected to the terminal block in the back of the PVCS2 speaker selection switch? Thank you

    The middle Left and Right section is the input

  • When will these be back in stock? They've been out everywhere for months.

    The order has been placed, We do not have an ETA on the replenishment!

  • I moved and brought my PVCS2 A-B speaker selector switches with me but don't remember how to hook them up. I had them working at my old house. At the new house, I only seem to be able to get one of each set of speakers working or find that one side is on the A switch and one is on the B switch. I know the leads for the inputs from my amplifier are in the center, but can't seem to figure out the L+ L- and R+ R-. I couldn't seem to be able to get both right and left speakers in one room working on the same switch. Can you provide a graphic showing the hock up for each set on speakers. Please help me? Thanks.

    Please refer to the link below:

    file:///C:/Users/Levy%20Dilag/Downloads/PVCS2%20-%20Manuals.pdf

  • Can I use 16 gauge speaker wire with this switcher?

    Yes, you can use 16AWG wire

  • Could þhis be used to switch between 2 sources to one set of speakers?

    This is for a single source only

  • I want to connect to 8 speakers. I can daisy chain so that 2 speakers are connected to each speaker output?

    this connection will vary depending on the impedance of the amplifier and the speaker
