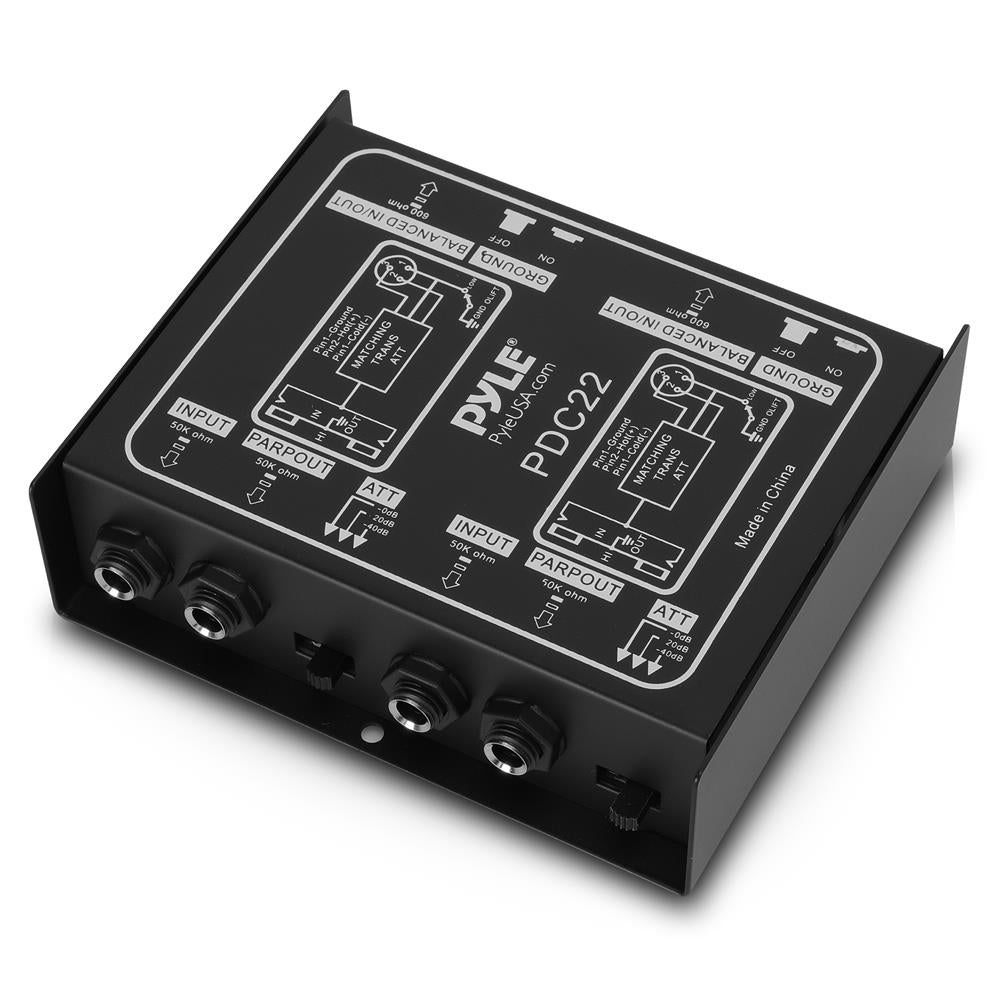

Dual Passive DI Box - Hum Eliminator, Steel Chassis, 1/4" to XLR

Product Highlights

Pyle PDC22 is a necessity if you are looking for the higest quality of sound, with low distortion, noise, and eliminate ground loops. A DI unit, DI box, Direct Box, Direct Input, Direct Injection or simply DI is an electronic device that connects a high impedance, line level, unbalanced output signal to a low impedance mic level balanced input, usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing console's microphone input. The DI performs level matching, balancing, and either active buffering or passive impedance bridging to minimise noise, distortion, and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.

DETAILS

Features:

Two High-Quality Direct Boxes In One Convenient Enclosure

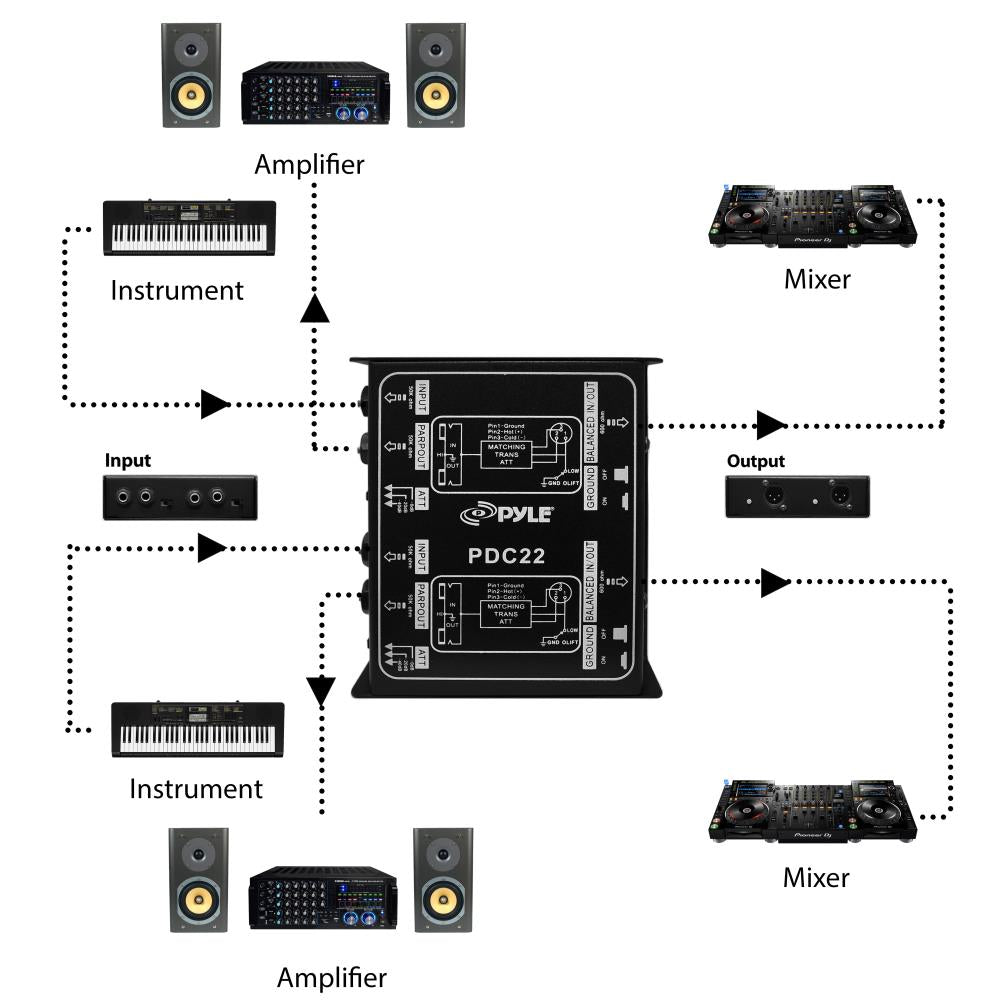

Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
1/4 Device Connector
Ultra-low Noise and Distortion
Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.
Suitable for Outboard Signal Processors & High-Powered Speaker
Enables to Tap Off the Signals w/out Affecting the Original Sounds
Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
Provides a Clean Signal at a Low Level
Plug-in Guitar Directly into the PA System
Easy to Use Passive Electronic Device
Controls Hum and Buzz from Stage with the Ground Lift
Heavy Duty 14 Gauge Steel Construction
Bi-Directional Impedance Matching

What’s In The Box:

Premium Direct Injection Audio Box

Technical Specs:

Frequency Response: 5-35 KHz, -3dB
Noise Level: -104dBu
THD: 0.013%
Input Impedance: 50K Ohm
Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)

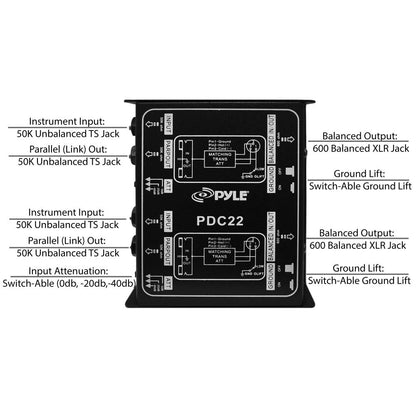

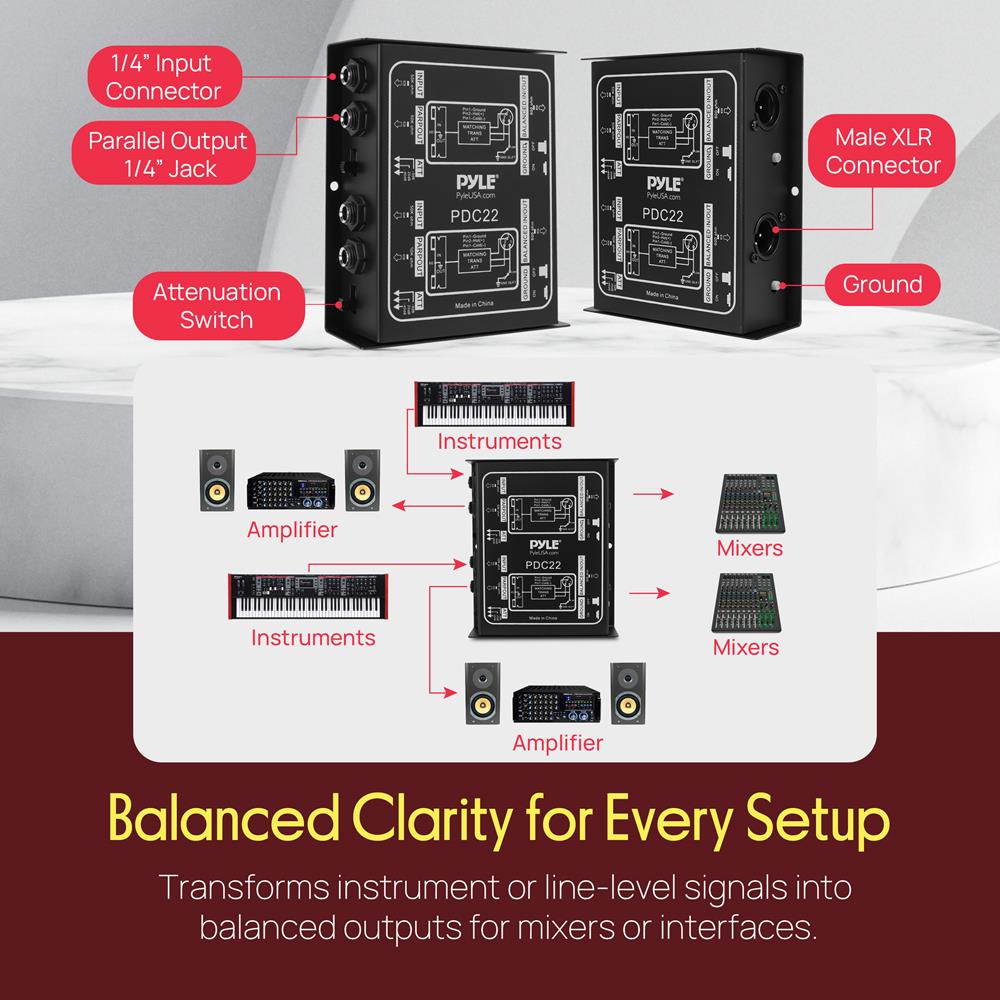

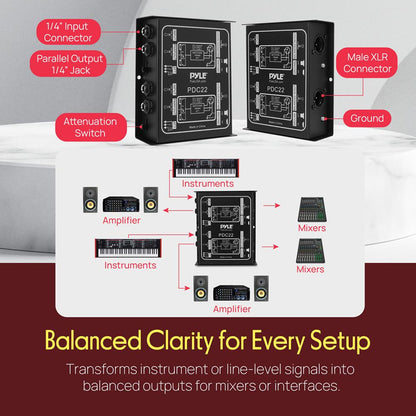

Instrument Input: 1/4'' Phone Jack, unbalanced
Parallel (link) Out: 1/4'' Phone Jack, unbalanced
Balanced Output: XLR Connector, balanced
Ground Lift: Switch-Able Ground Lift
Input Attenuation: Switch-Able (0db, -20db,-40db)
Construction Material: All Steel Chassis

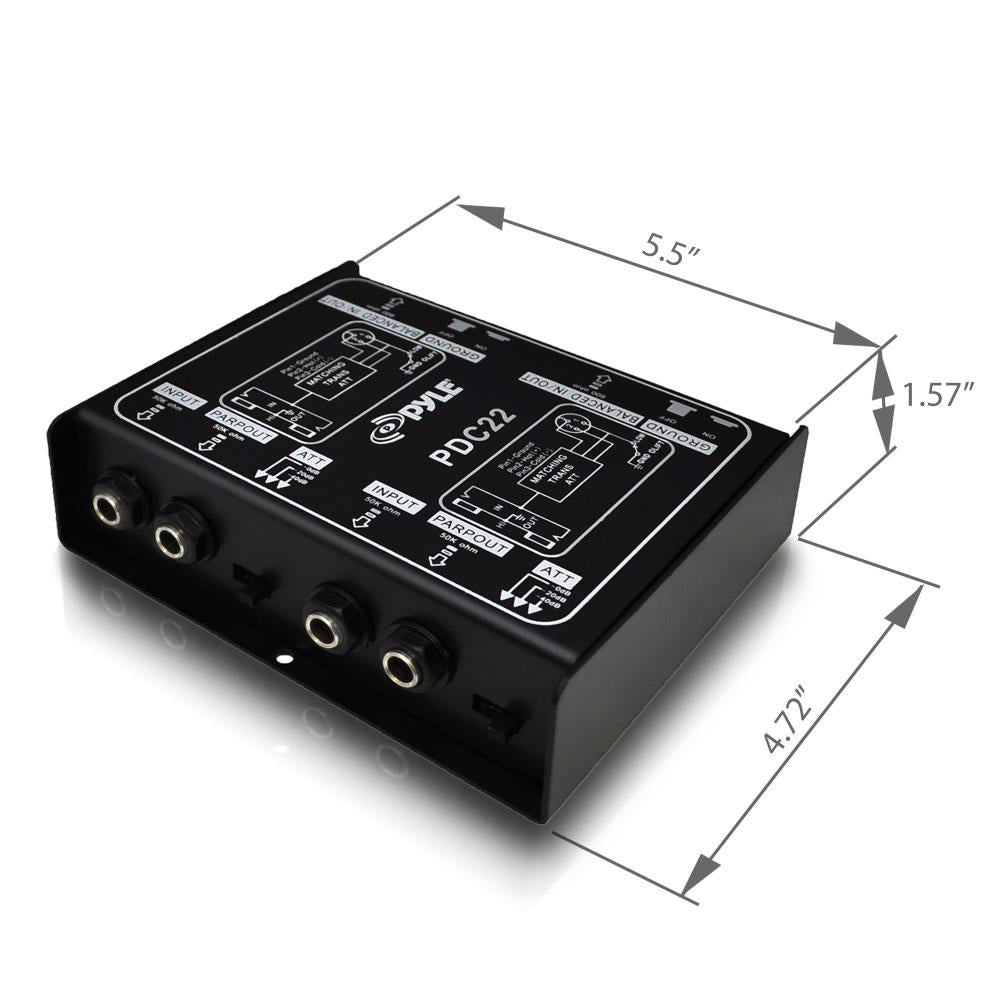

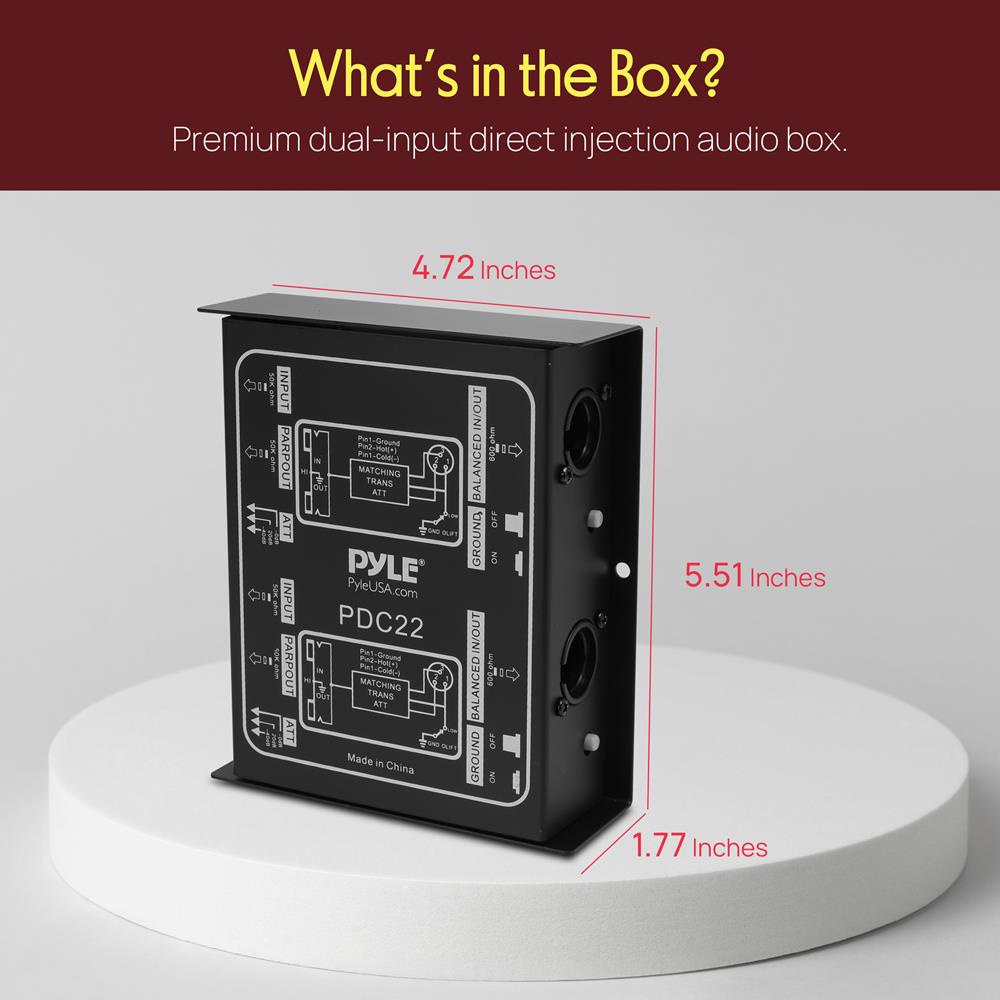

Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches

What's In The Box

Premium Direct Injection Audio Box

Specification

Pyle PDC22 is a necessity if you are looking for the higest quality of sound, with low distortion, noise, and eliminate ground loops. A DI unit, DI box, Direct Box, Direct Input, Direct Injection or simply DI is an electronic device that connects a high impedance, line level, unbalanced output signal to a low impedance mic level balanced input, usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing console's microphone input. The DI performs level matching, balancing, and either active buffering or passive impedance bridging to minimise noise, distortion, and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.

MANUALS & DOWNLOADS

PDC22 - Manuals

Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

Hi, I'm wondering my acoustic guitar ,when plugged in to the PDC 22 sounds so thin? I have a digiflex DPDI and the guitar sounds normal with it. thanks Mark

Check your warranty option and if possible ask for warranty replacement
hi, is there a difference between pyle PDC22PRO and PDC22? Thanks

It is just the same
Hi, you have many great products, I can't chose. In my dreams, i plug my guitar in my FX box and can chose all or send signal to 4 guitar amps, and XLR to go to my Poweramps. 1 INPUT or more & many OUT including XLR. I read the manuals to many of your products, seriously impressed, just unsure what to chose. Thank you in advance, i got emails from you but didn't recall the model. Be well.

https://pyleusa.com/products/pdc22
When will you have the Premium Dual Direct Injection Audio Box in stock

Please contact us through our email support system to assist you further with your concern. Simply Go to pyleusa.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject, and also on the comment box, you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back to you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
