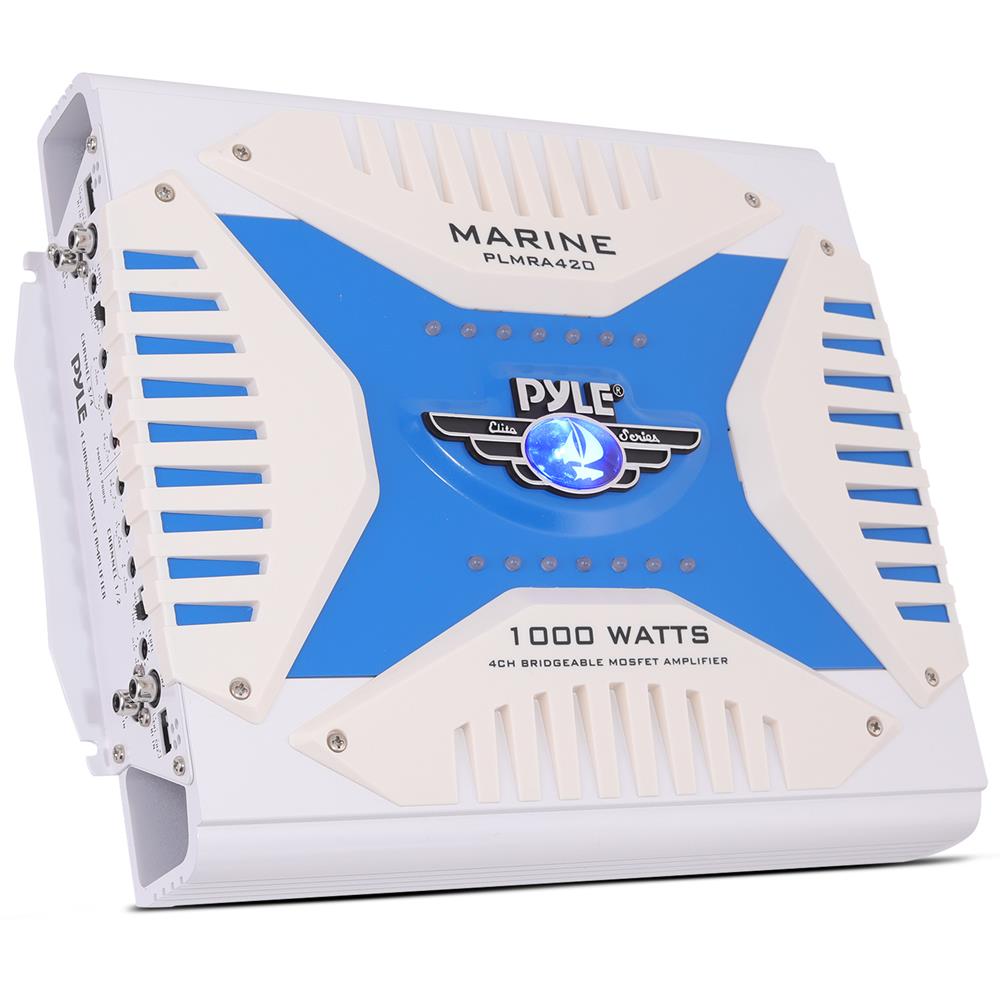

4-Ch. Elite Series Marine Amplifier

The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard boat or even by the pool! Additional features include MOSFET power supplies built-in electronic circuitry protection heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200 PLMRA400 PLMRA420 PLMRA620 PLMRA820).

System Features:

• Bridgeable Audio Amplifier
• Tri-Mode Configurable
• 4-Channel Amp System
• Dual MOSFET Power Supply

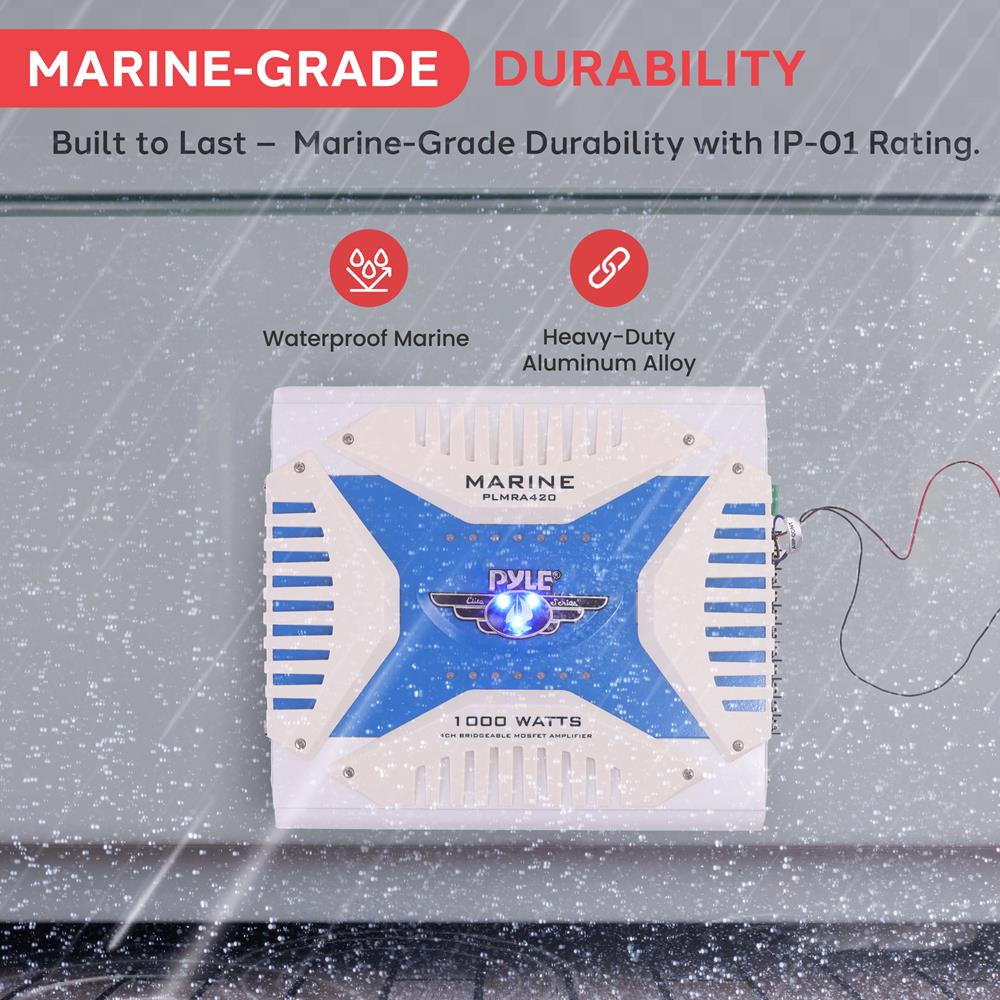

• Marine Grade Construction
• Waterproof Marine Rating IP-01

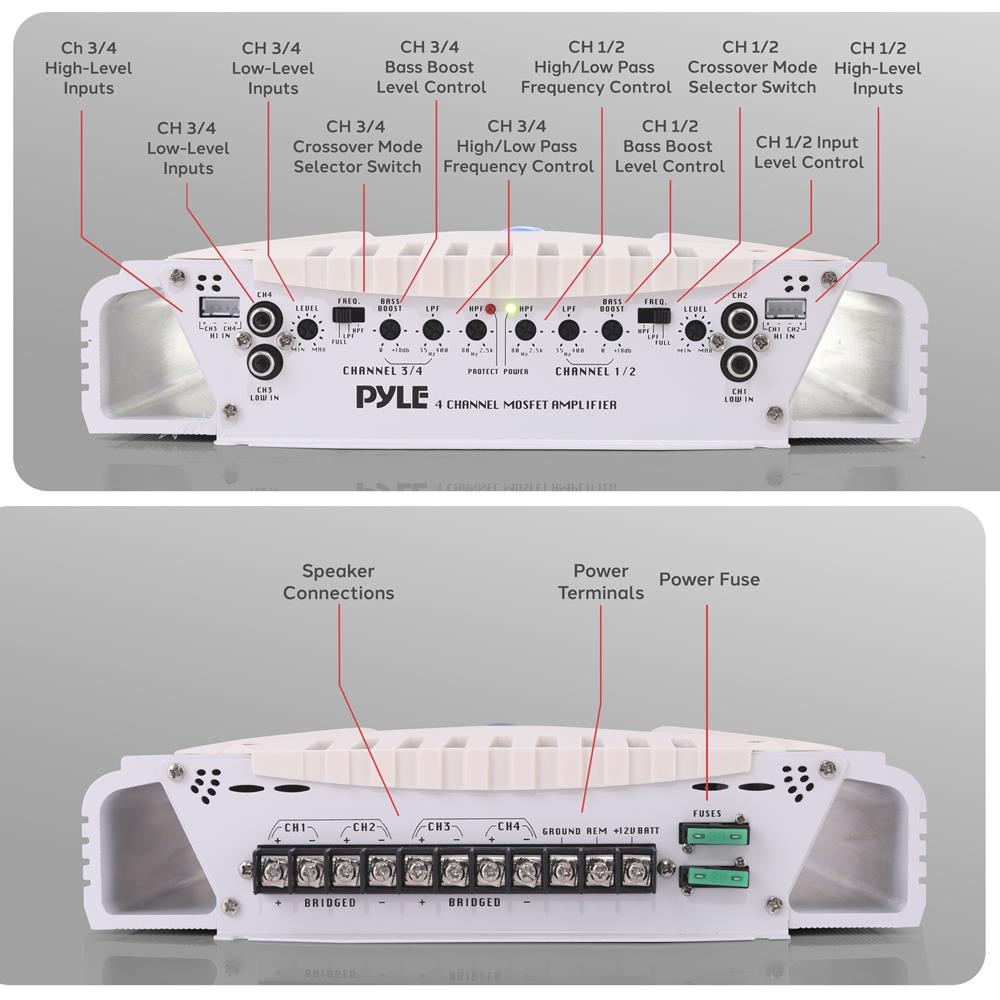

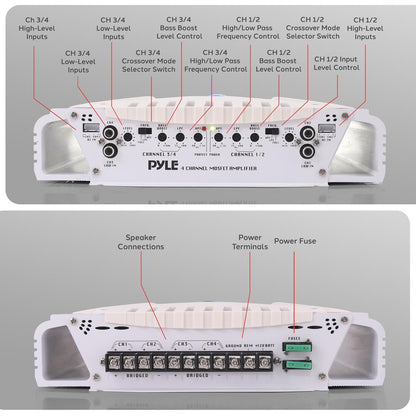

• Hi/Lo Electronic Crossover Network
• Dual Adjustable Input GAIN Level Controls
• Dual High Level Speaker Input Connectors
• Dual RCA (L/R) Input Connector Jacks
• Dual High Pass Low Pass & Bass Boost Controls
• Gold-Plated Speaker Output Terminal Connectors
• Anti-Thump Delay Circuitry
• Power & Protection LED Indicators
• Built-in Thermal Overload & Speaker Short Protection
• Heavy Duty Aluminum Alloy Heatsink
• Remote Turn ON/OFF

Technical Specs:

• 1000 Watt MAX Power Output
• 500 Watt x 2 Bridged Output (250 Watt x 2 + 500 Watt x 1)
• 250 Watt x 4 Power Output
• Amplifier Class: AB
• Fuse Type: 30A x 2
• Frequency Response: 15 - 30kHz
• Input Impedance: 10k Ohm (Low) 100 Ohm (High)
• Input Sensitivity: 250mV (Low) 2.5V (High)
• Variable Bass Boost: 0 +/- 18dB @ 60Hz
• S/N Ratio: >95dB
• T.H.D.: <0.04%
• Power Supply: DC 12V

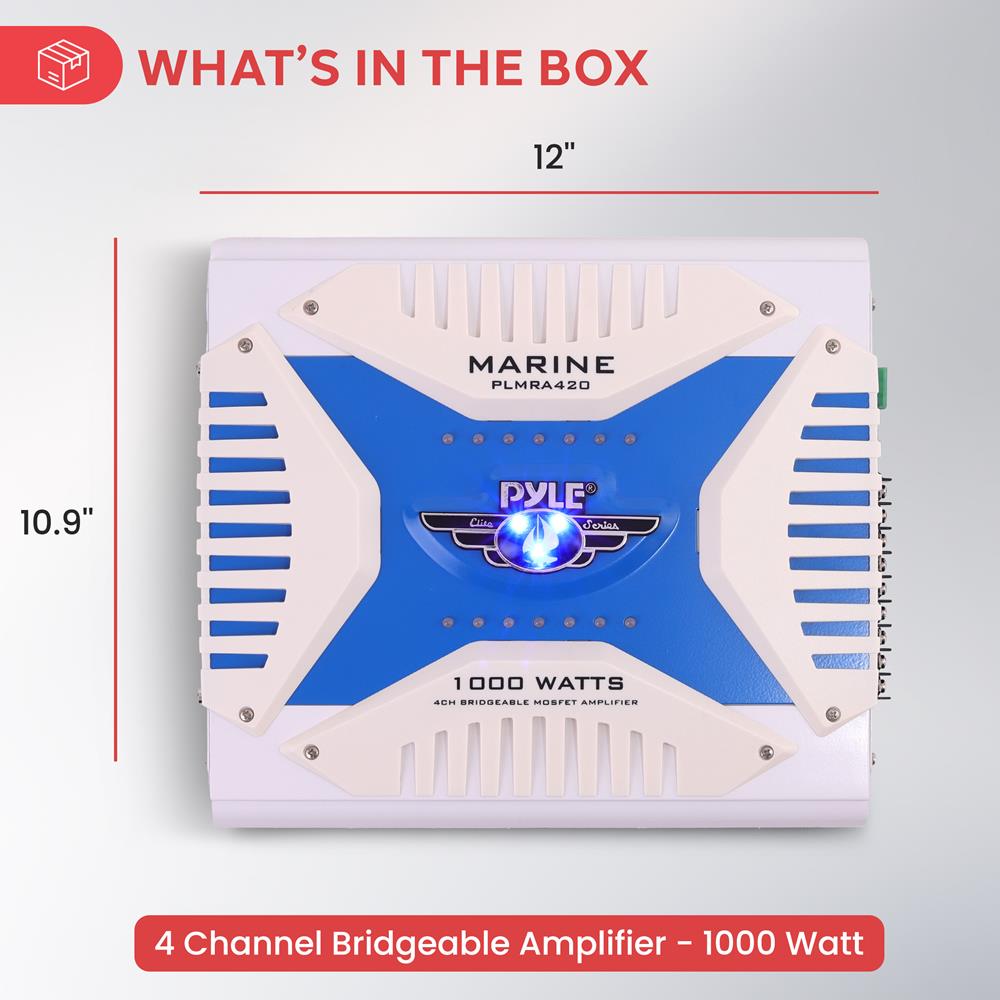

• Dimensions (L x W x H): 12.0 x 10.9 x 2.7
