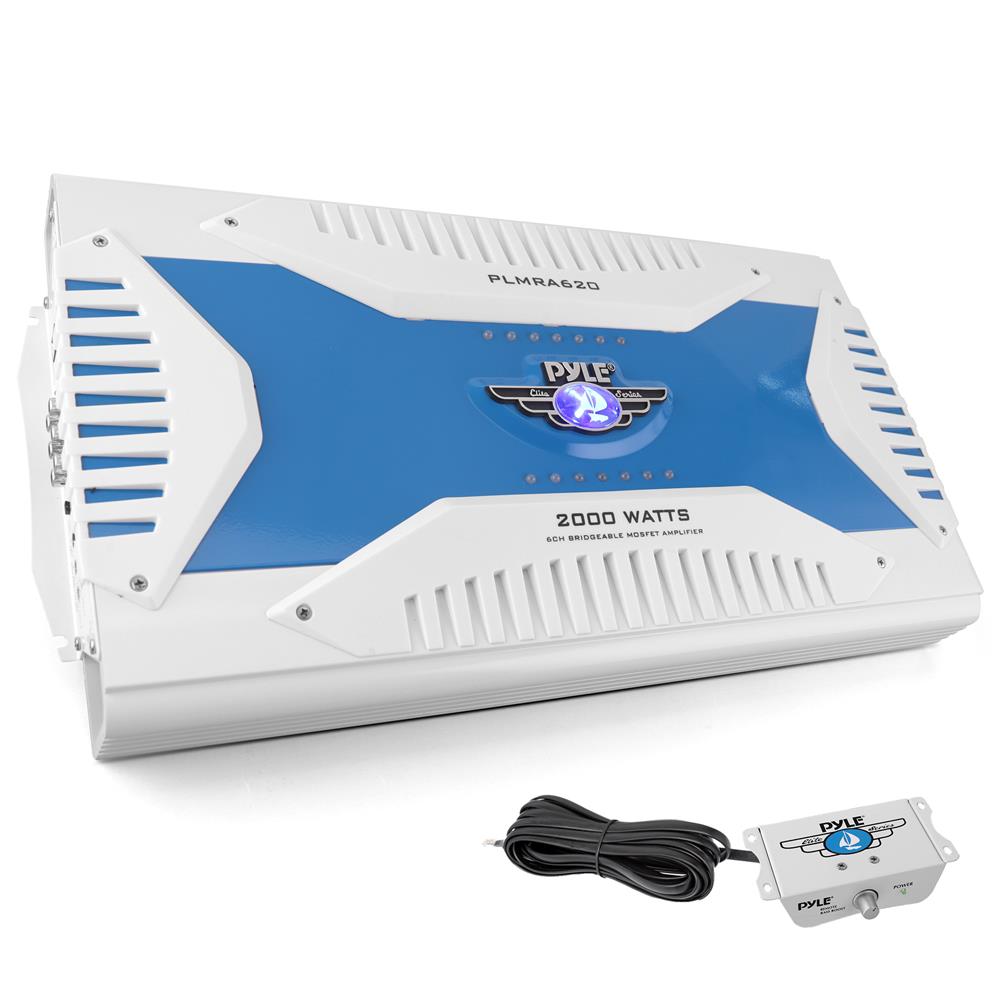

6-Ch. Elite Series Marine Amplifier

The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard boat or even by the pool! Additional features include MOSFET power supplies built-in electronic circuitry protection heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200 PLMRA400 PLMRA420 PLMRA620 PLMRA820).

Features:

• Bridgeable Audio Amplifier
• Tri-Mode Configurable
• 6-Channel Amp System
• 2 Ohm Stereo Stable
• MOSFET Power Supply

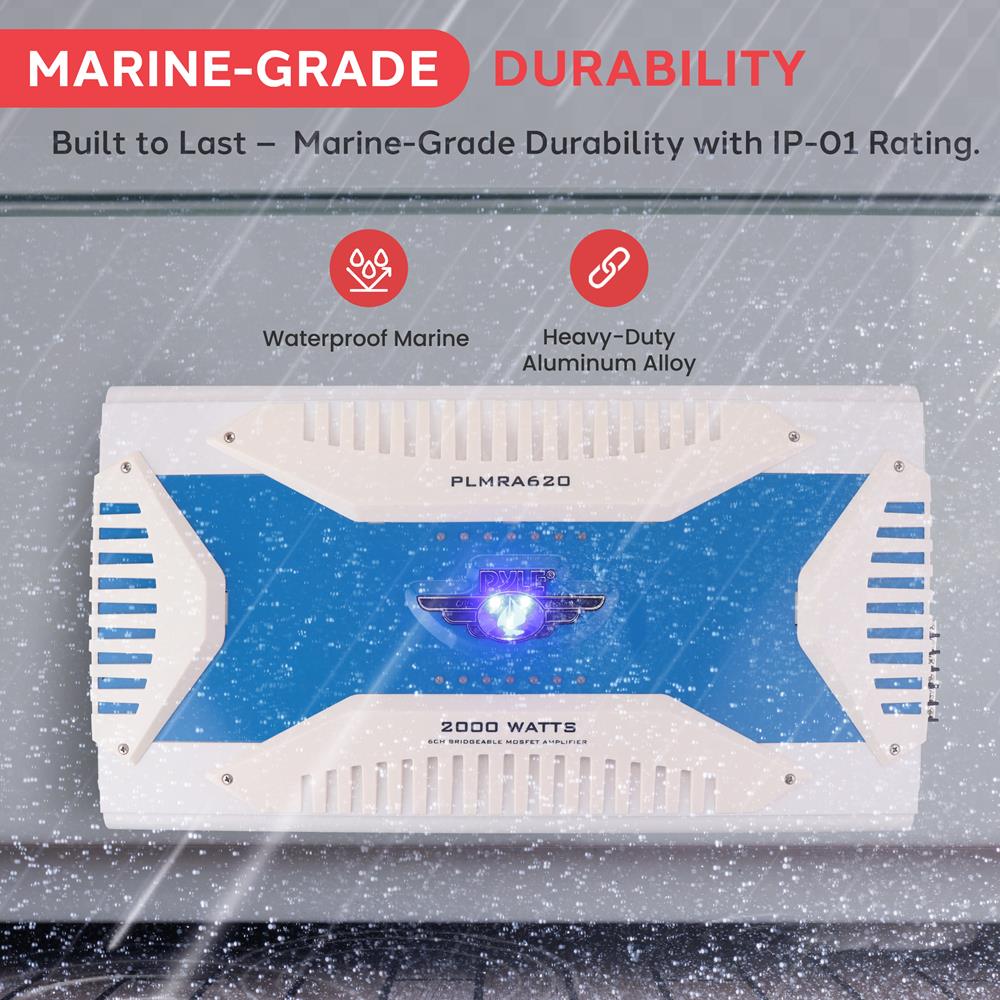

• Marine Grade Construction
• Waterproof Marine Rating IP-01

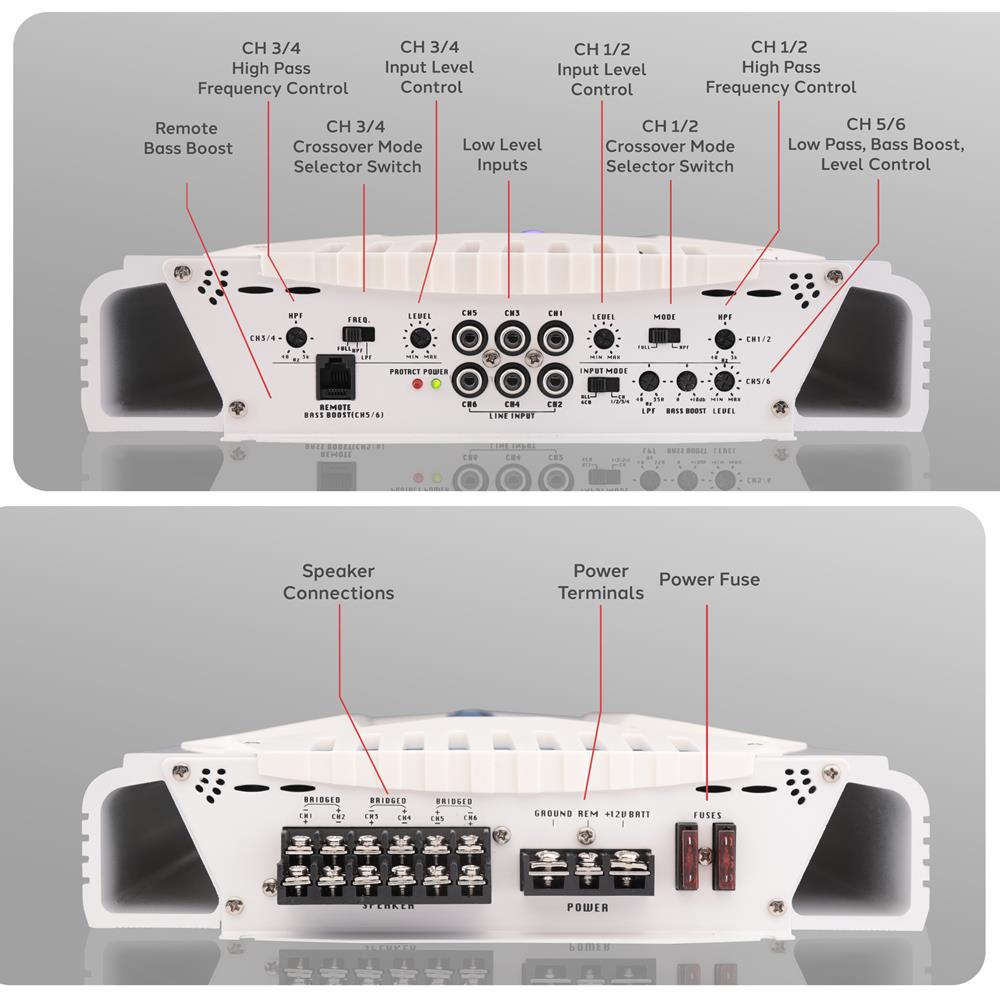

• Hi/Lo Electronic Crossover Network
• Adjustable Input GAIN Level Controls
• RCA (L/R) Input Connector Jacks
• Variable High Pass Low Pass & Bass Boost Controls
• Remote Bass Boost Controller Connector Jack
• Gold-Plated Speaker Output Terminal Connectors
• Anti-Thump Delay Circuitry
• Power & Protection LED Indicators
• Built-in Thermal Overload & Speaker Short Protection
• Heavy Duty Aluminum Alloy Heatsink
• Remote Turn ON/OFF

Technical Specs:

• 4 x 100W + 2 x 250W RMS @ 4 Ohms
• 4 x 250W + 2 x 500W MAX @ 4 Ohms
• 4 x 175W + 1 x 400W RMS @ 2 Ohms
• 2 x 400W + 1 x 900W MAX @ 4 Ohms Bridged
• Amplifier Class: AB
• Fuse Type: 40A x 2
• Frequency Response: 15 - 30kHz
• Input Impedance: 10k Ohm
• Input Sensitivity: 250mV
• Variable Bass Boost: 0 +/- 18dB @ 60Hz
• S/N Ratio: >95dB
• T.H.D.: <0.04%
• Power Supply: DC 12V

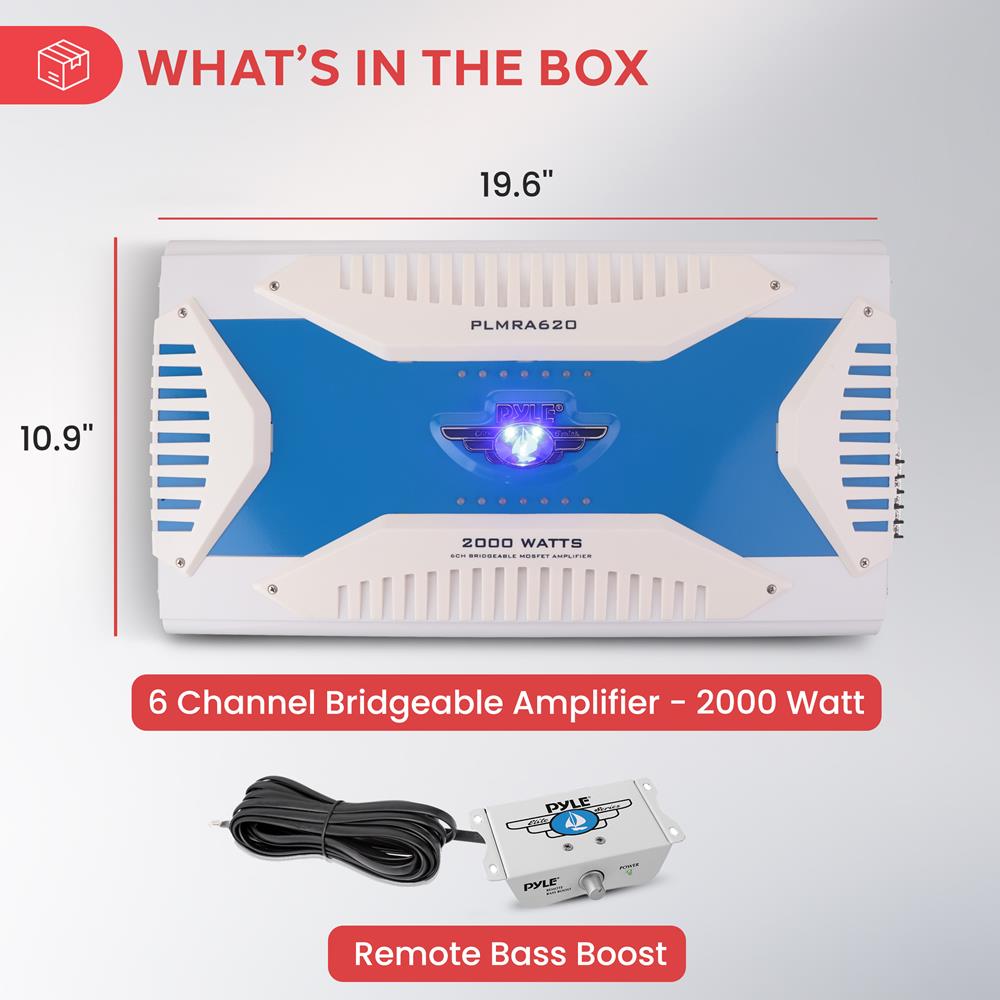

• Dimensions (L x W x H): 19.6 x 10.9 x 2.7
